Code B482, Anti-Lock Pressure Problem: Diagnosis

Enter diagnostics and note status of BI18. If BI18 is high, see NOTE ON INTERMITTENTS. If BI18 is low, disconnect 5-pin hydraulic switch connector at ABS pump. If BI18 remains low, repair short to ground in circuit No. 933. If BI18 changes to high, diagnose ABS and normal braking system.

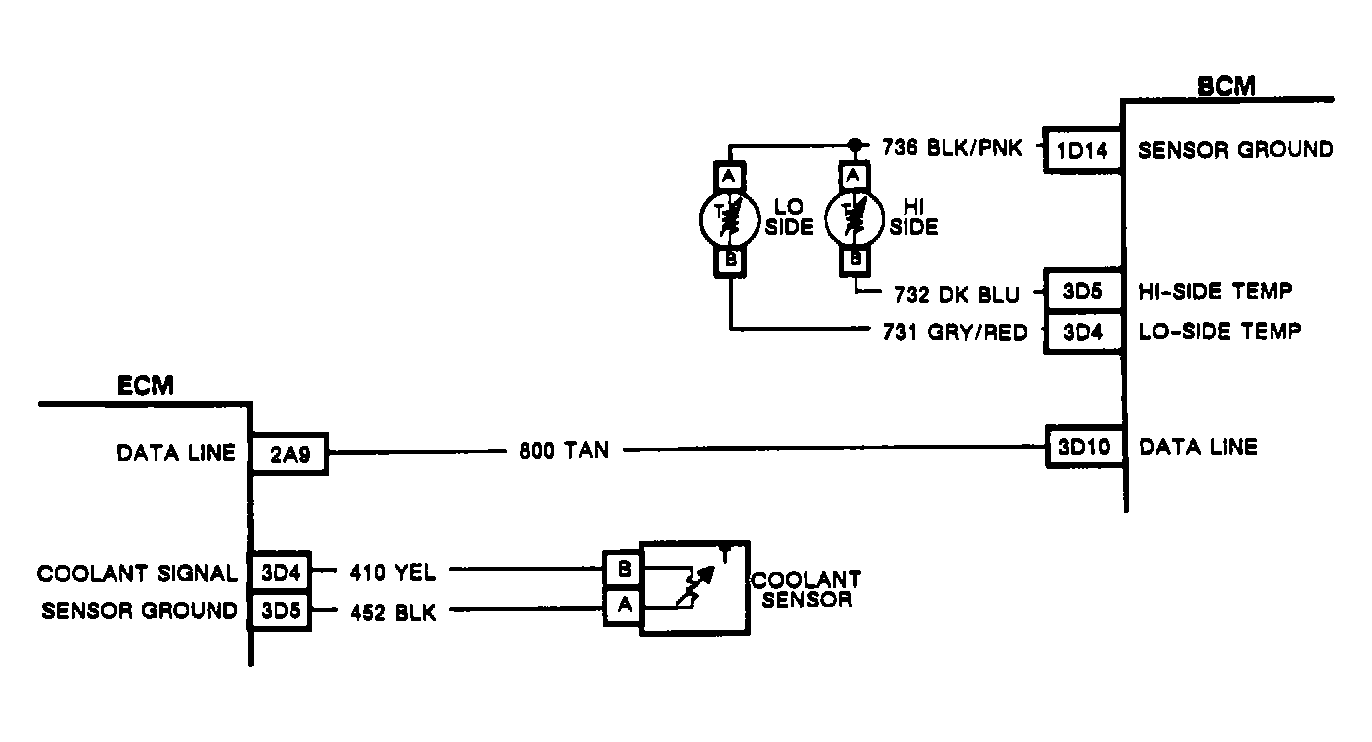

Fig 1: Code B449: Circuit Diagram
G90H14396
