Note On Intermittents

If an intermittent Code B121 is being set, manipulate related wiring. When BCM BI82 displays change-of-state, an "X" will be indicated. Check circuit for an intermittent open or short.

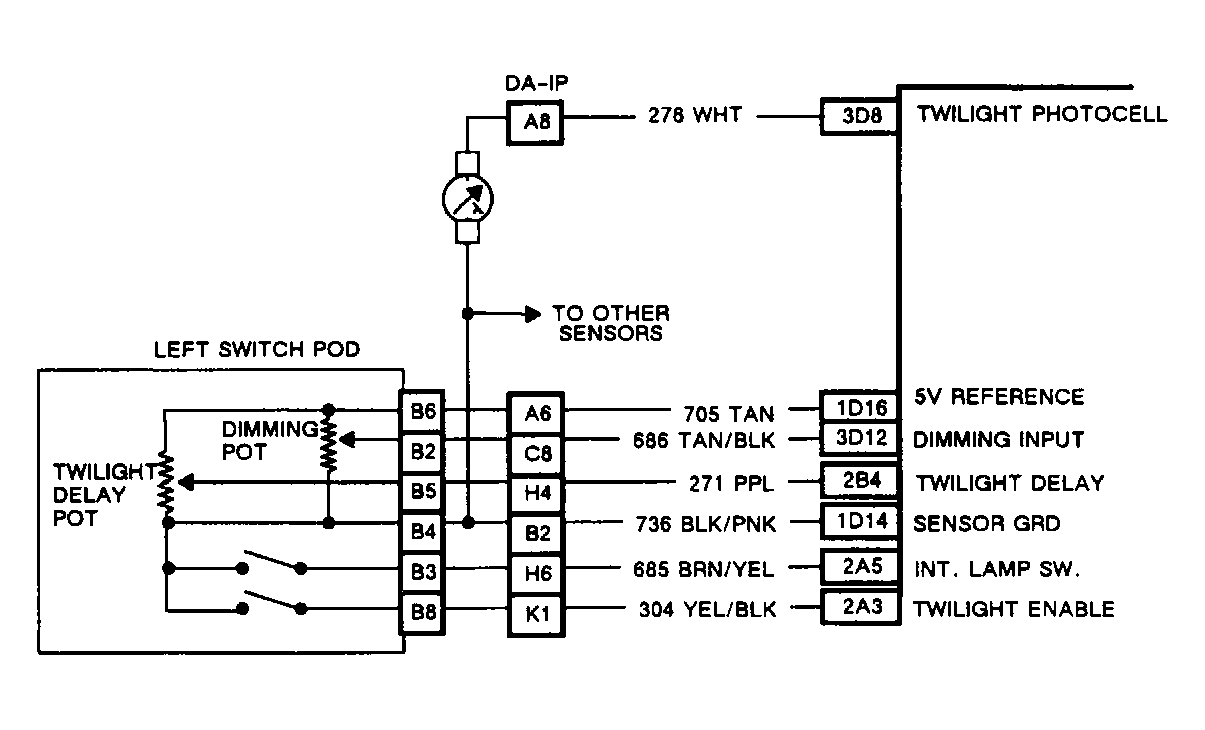

Fig 1: Code B121: Circuit Diagram

Fig 2: Code B121: Flow Chart Twight Enable Switch Circuit
