Note On Intermittents

If an intermittent Code B119 is being set, manipulate related wiring while observing BD44 display. If failure is induced, reading will jump from its normal value to a reading outside the range of 3-97 percent. Make certain owner is aware not to cover sensor.

Fig 1: Code B119: Circuit Diagram
G90D17288

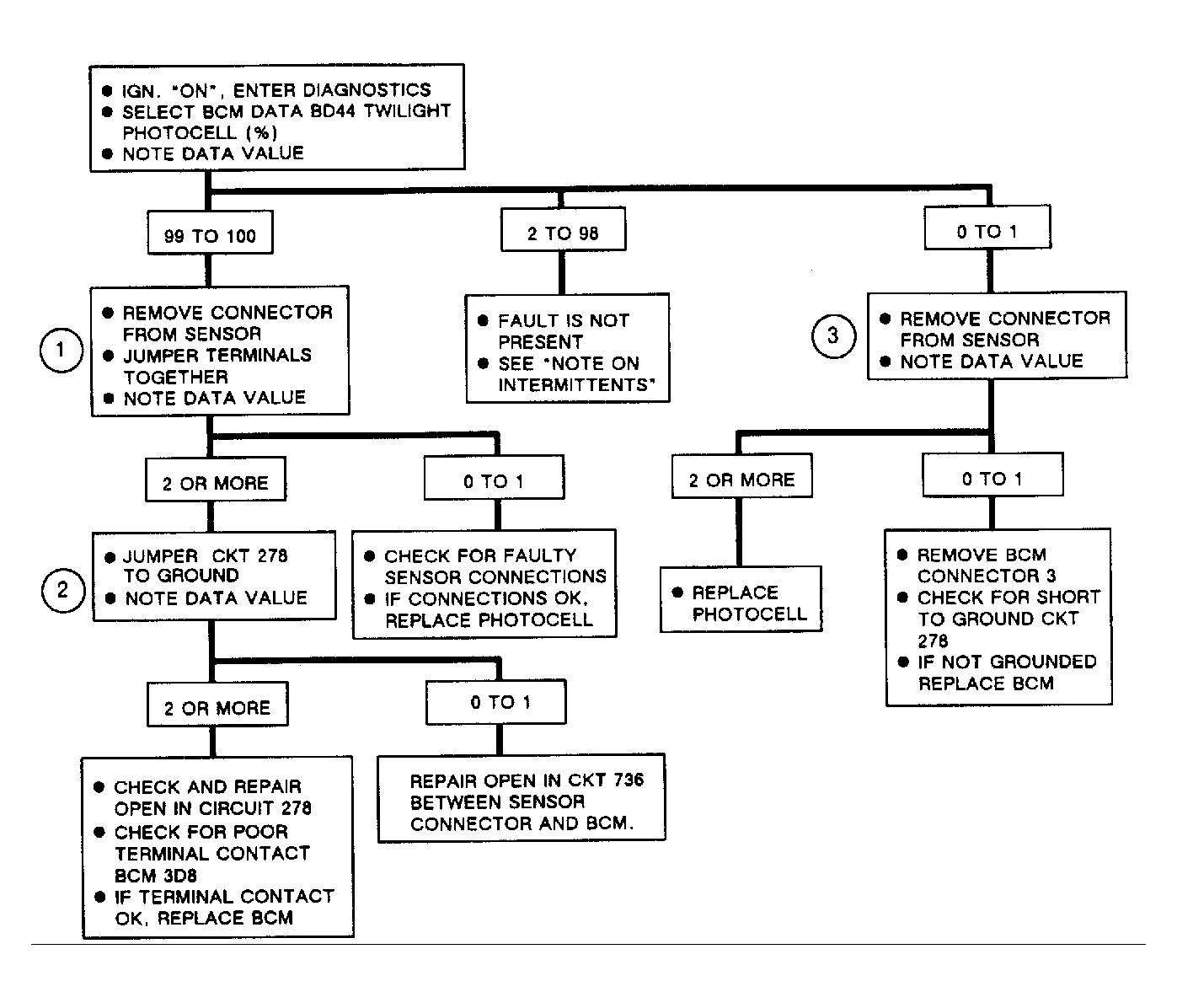

Fig 2: Code B119: Flow Chart Twight Photocell Circuit
G90B14366
