Non-CRT Equipped Self-Diagnostic System Check

The Self-Diagnostic System Check is an organized approach for identifying problem caused by on-car computer controlled electronics. Understanding this chart and using it correctly will reduce diagnosis time and prevent unnecessary replacement of components. If you have not reviewed the basic information on how to use computer self-diagnostics, go to beginning of this article.

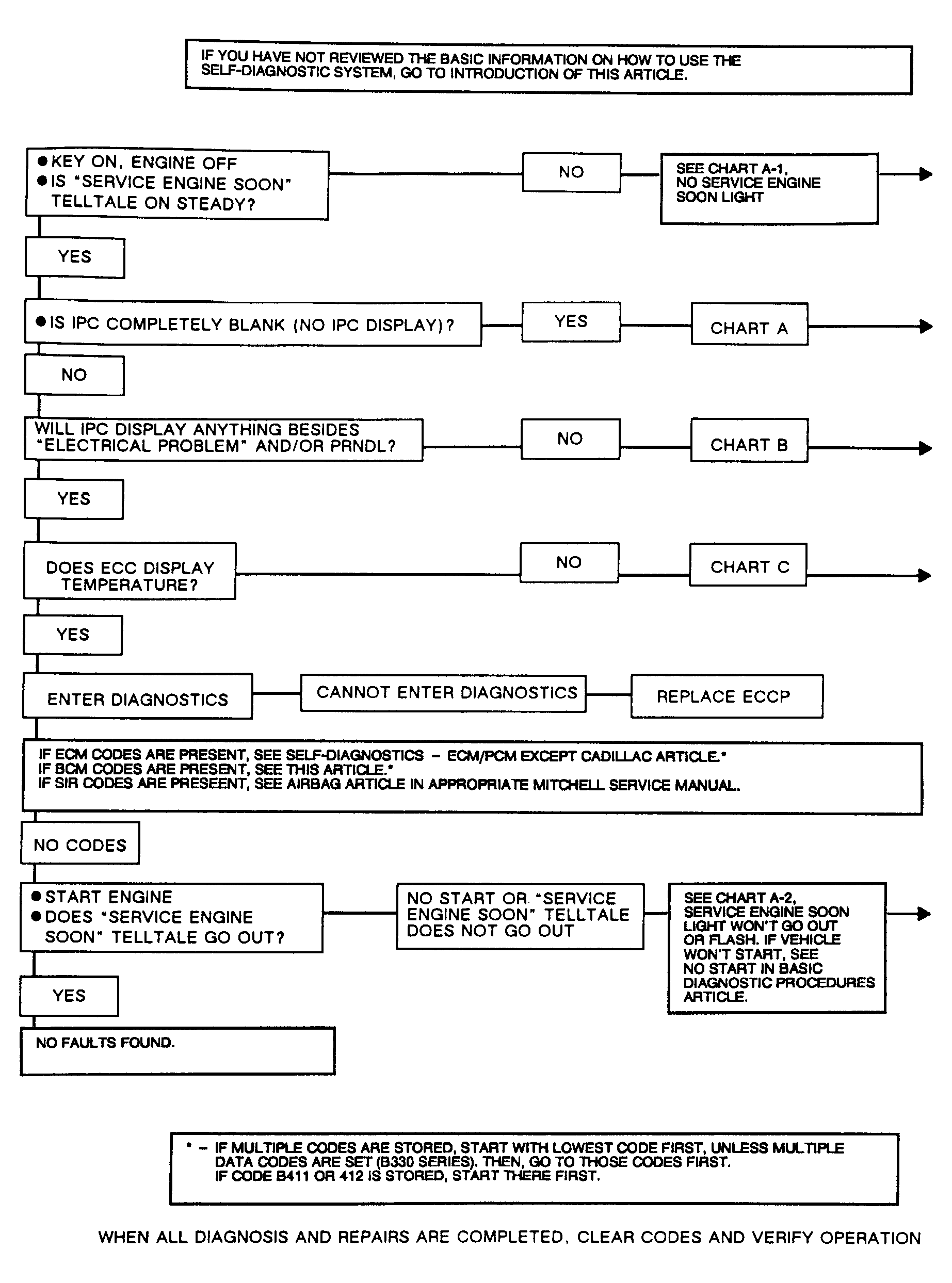

Fig 1: Non-CRT Equipped Self-Diagnostic System Check
G90I13928
