Block-Out Switch Adjustment

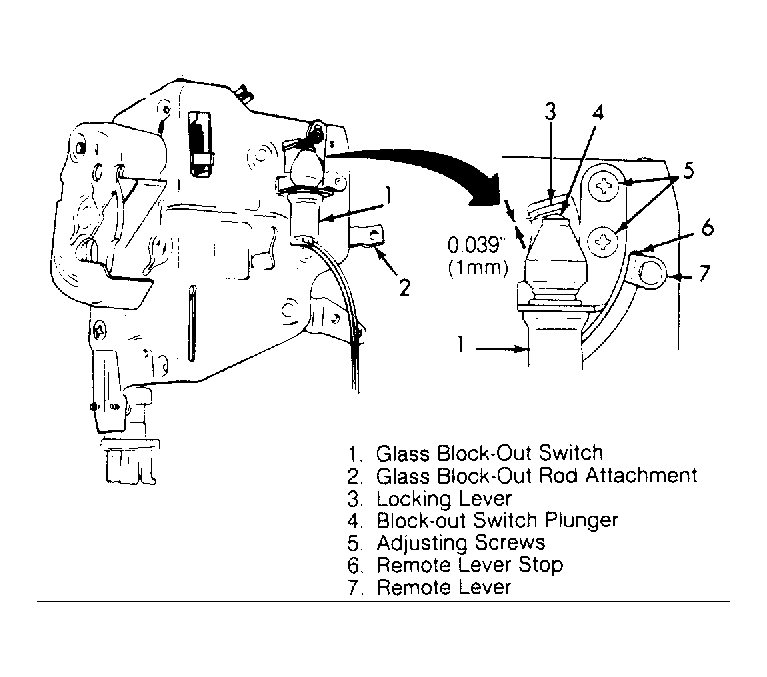

Loosen block-out switch retaining screw and adjust glass block-out switch to achieve a .039" (1 mm), clearance between block-out switch plunger and locking lever. See Fig 1 . To insure proper operation of switch and lock, adjustment operation must be performed with remote lever against remote lever stop.
