Home >> Oldsmobile >> 1989 >> Ninety-Eight Regency, 4T60/ME9 >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Automatic Seat Belts >> Diagnostic Tests >> Test A: Safety Belt Indicator Driver Module Test

Test A: Safety Belt Indicator Driver Module Test

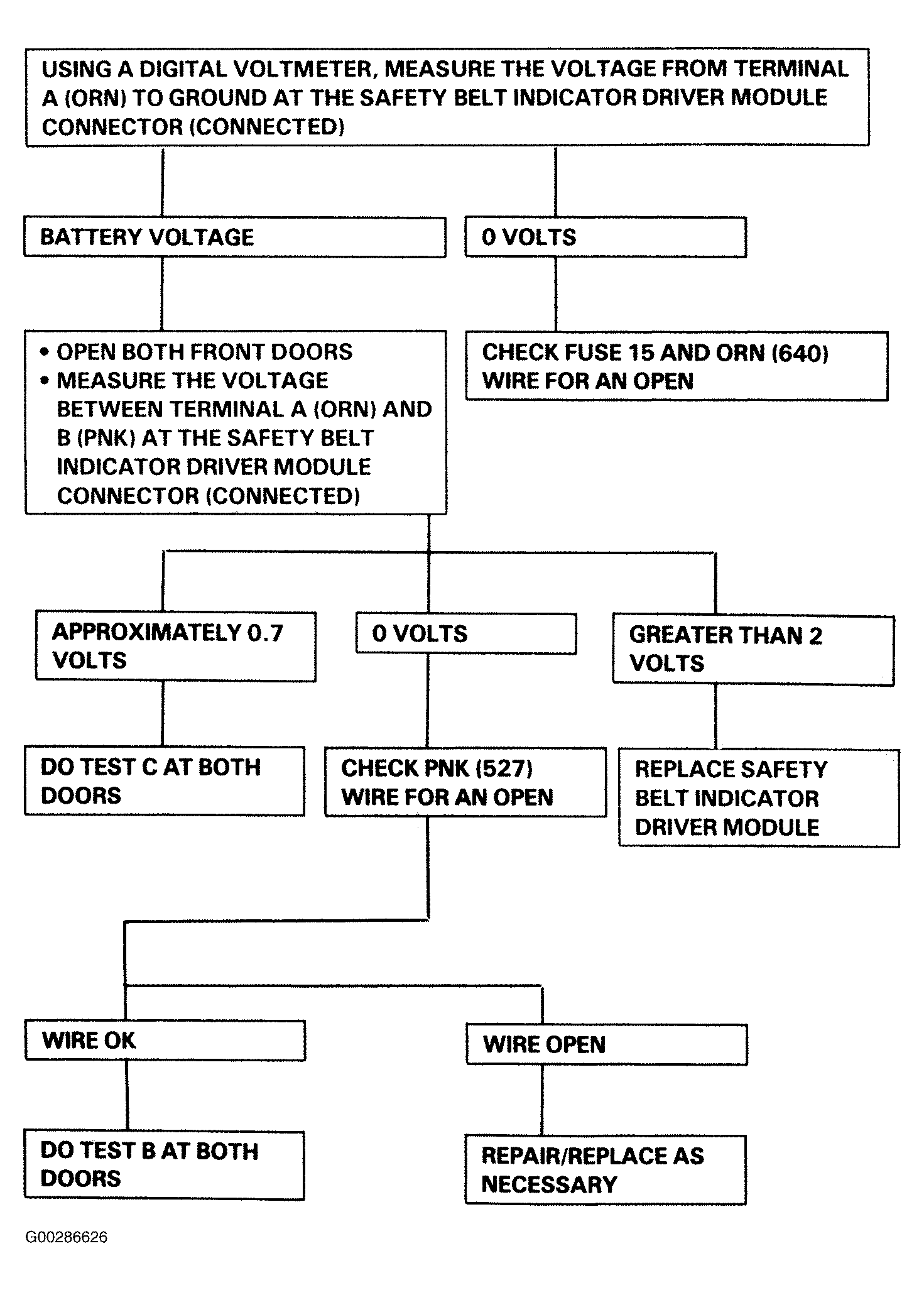

Fig 1: Safety Belt Indicator Driver Module Test

G00286626

Courtesy of GENERAL MOTORS CORP.
