2.3L PFI Tests W/Codes
>>
Diagnosis & Testing
>>
Component Locations
Component Locations

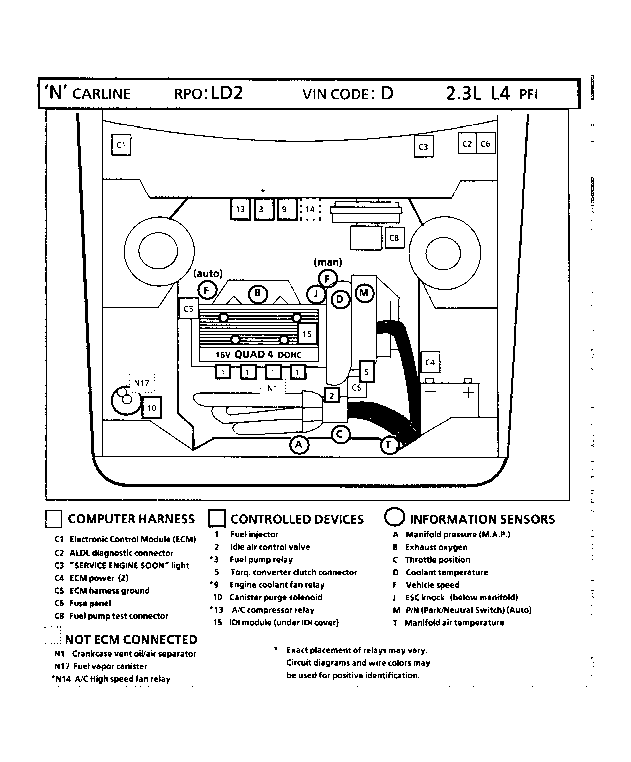

Fig 1: PFI Component Locations (2.3L VIN D)
Courtesy of GENERAL MOTORS CORP.

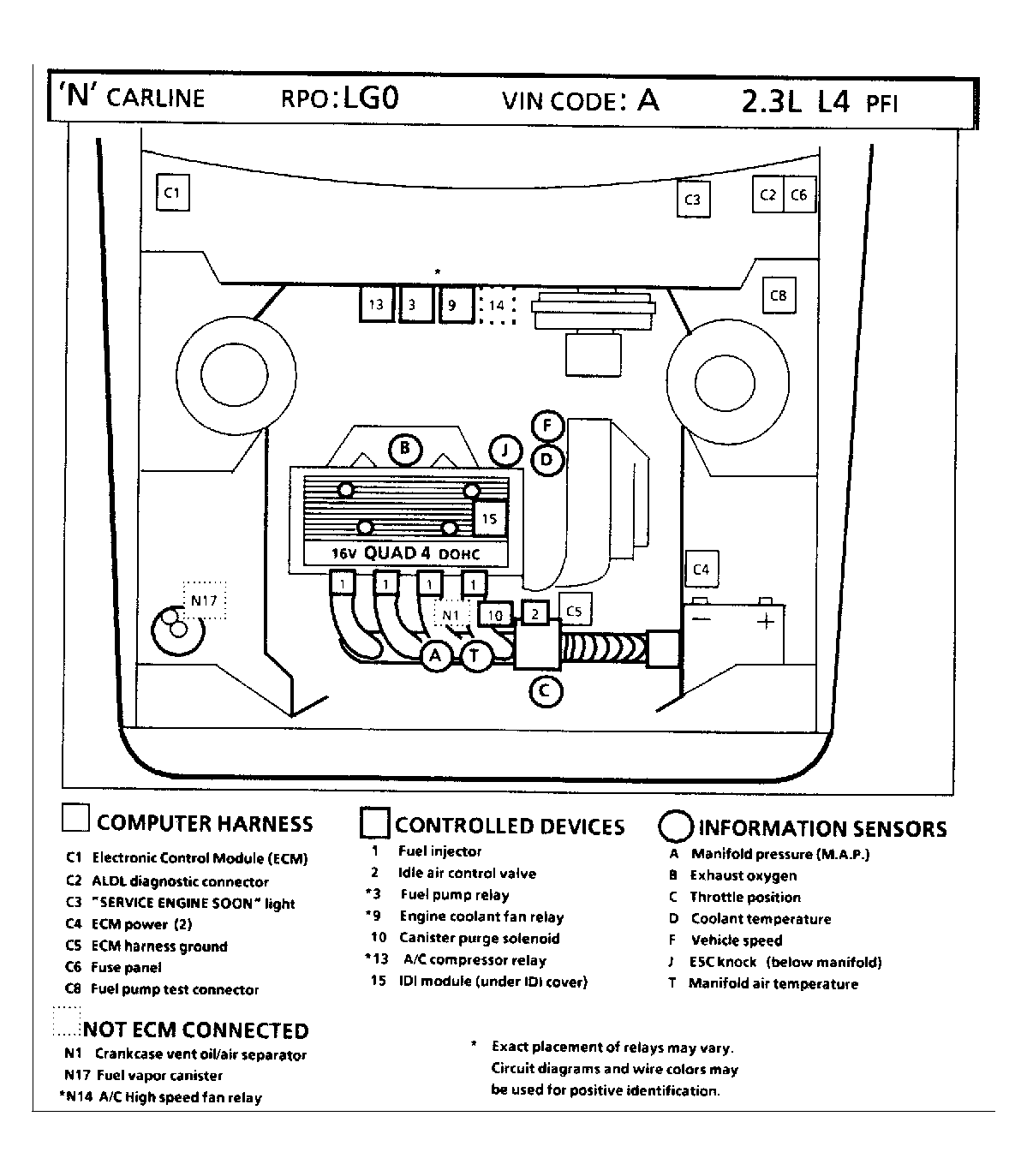

Fig 2: PFI Component Locations (2.3L VIN A)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
