Chart C-1D, Map Output Check

NOTE: Test numbers refer to test numbers on diagnostic chart.
  1. Checks MAP sensor output voltage to ECM. This voltage, without engine running, represents a barometer reading to ECM.
  2. Applying vacuum to MAP sensor should cause voltage to be 1.2-2.3 volts less than voltage at step 1). Upon applying vacuum to sensor, change in voltage should be instantaneous. A slow voltage change indicates a faulty sensor.
  3. Check vacuum hose to sensor for leaks or restriction. Ensure no other vacuum devices are connected to MAP sensor signal hose.

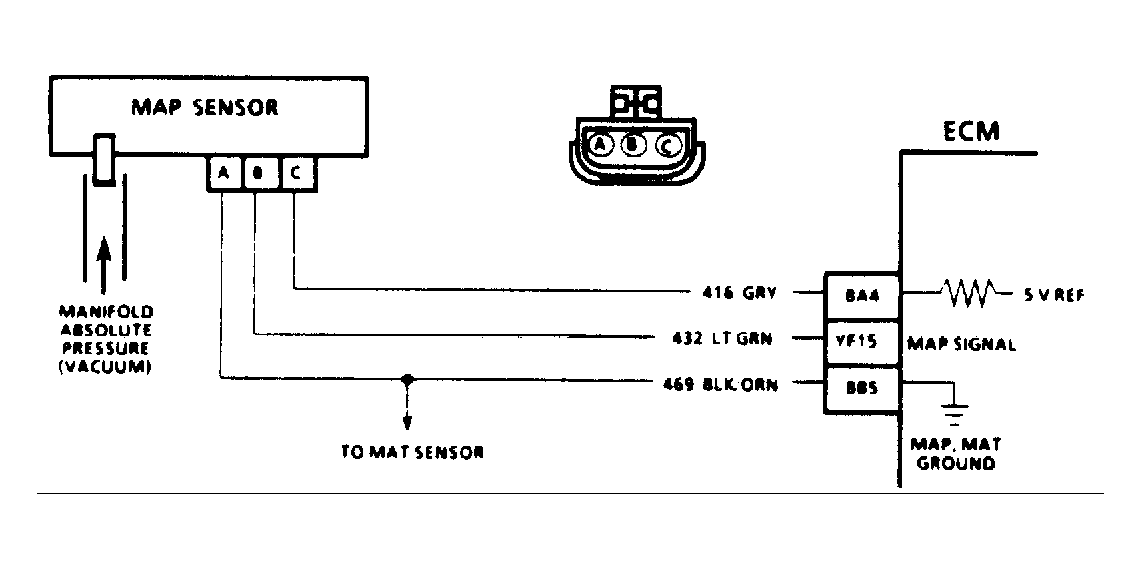

Fig 1: Chart C-1D Schematic, MAP Output Check
G110667

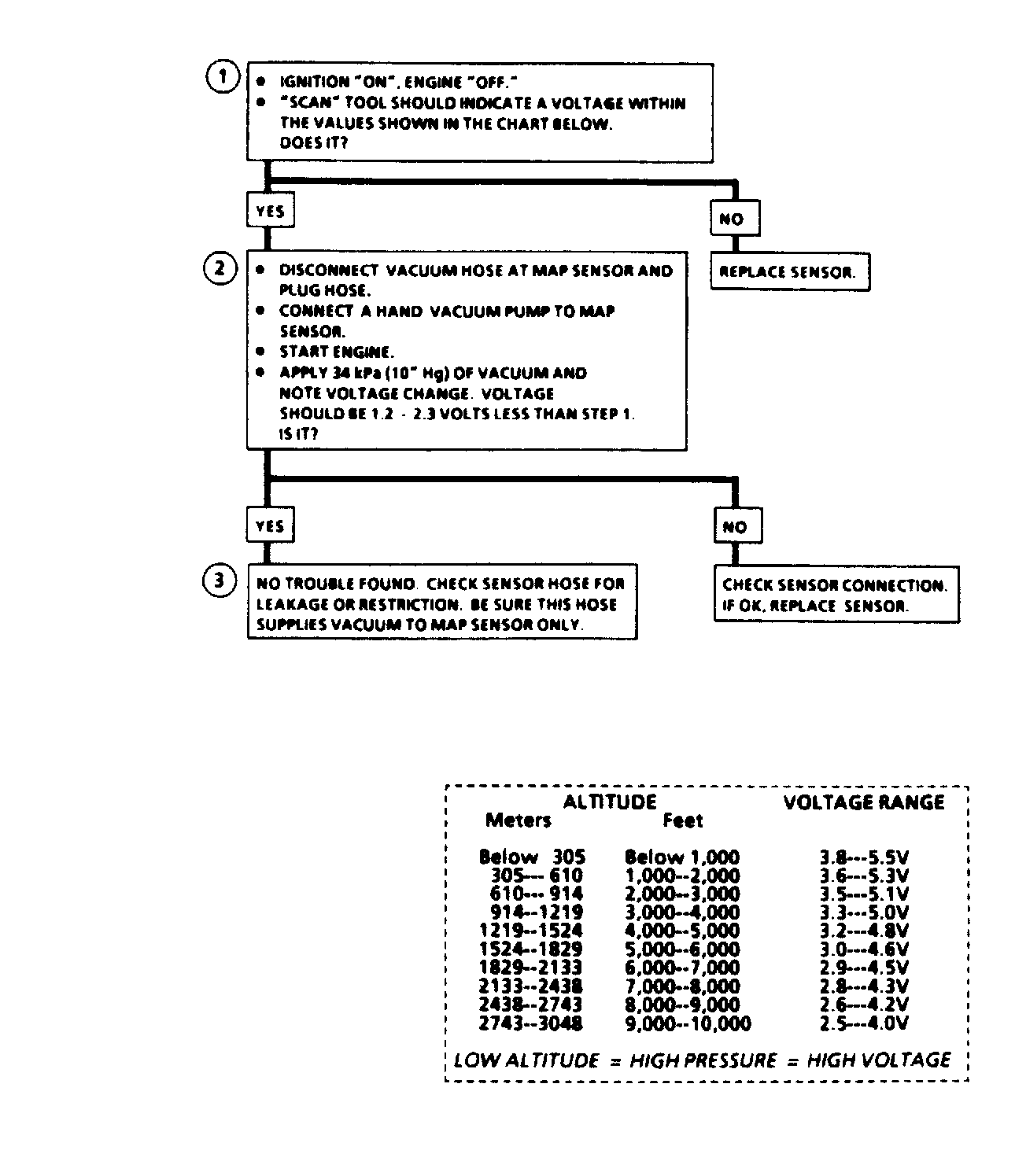

Fig 2: Chart C-1D, MAP Output Check
G110695
