Wiring Diagrams

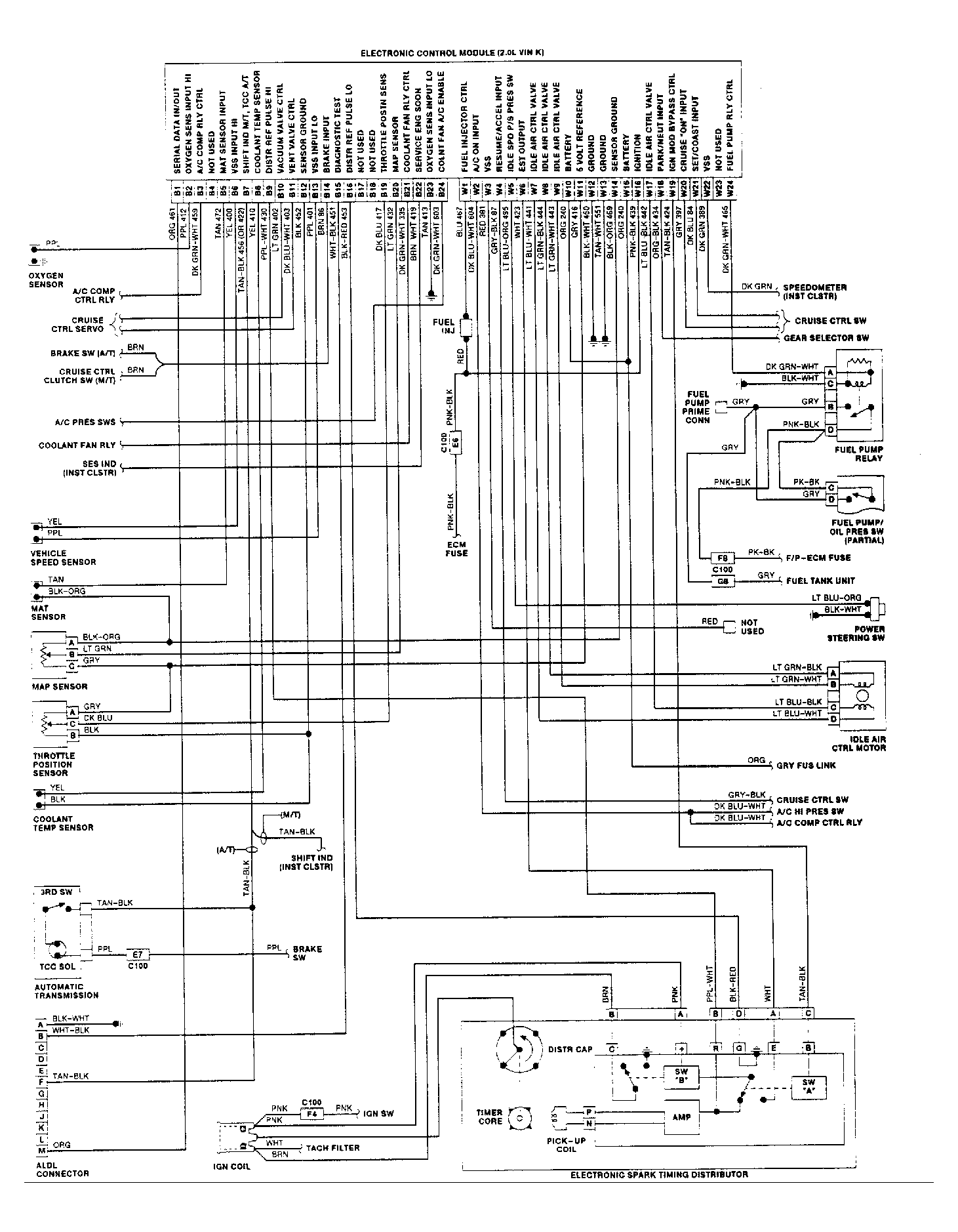

Fig 1: Wiring Diagram (J Body 2.0L VIN K)

G110386

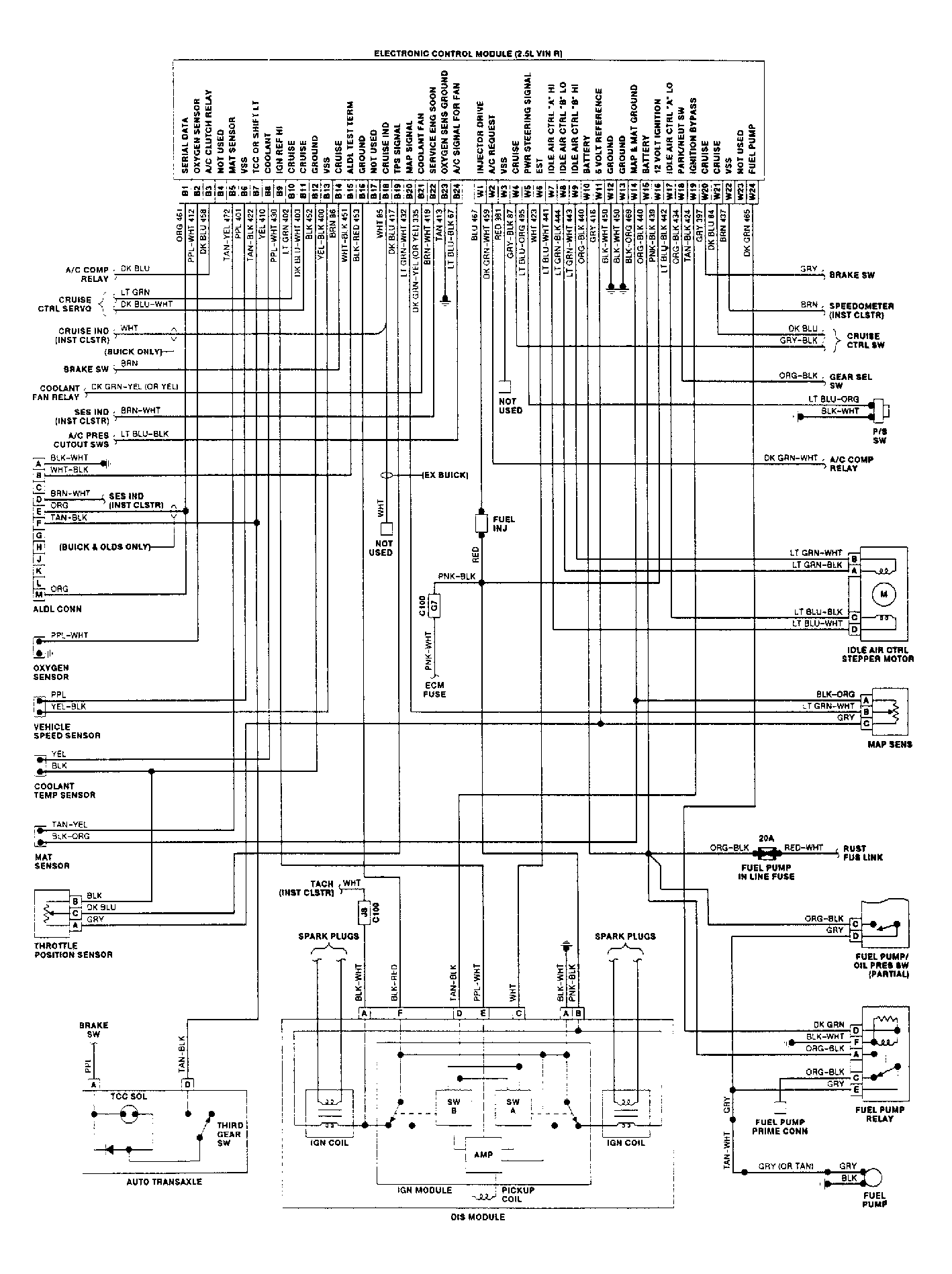

Fig 2: Wiring Diagram (Celebrity, Century, Ciera & 6000 2.5L VIN R)

G110387

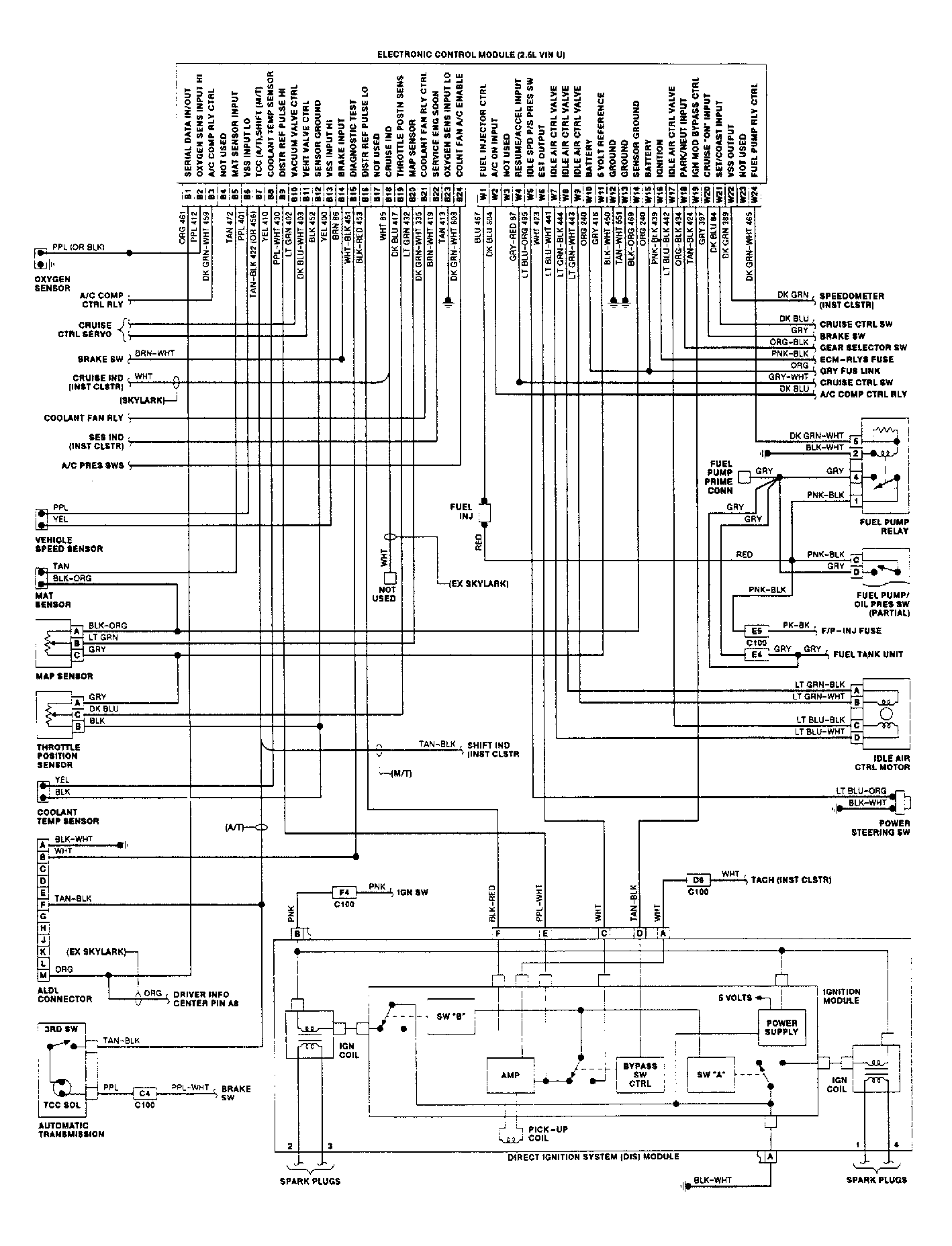

Fig 3: Wiring Diagram (Calais, Grand Am & Skylark 2.5L VIN U)

G110388
