EXPERTEC TSB (89-T-162)

Publication date: 1990-03-21
Reference number: 89-T-162

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 89-T-162, Date of Issue: 03/21/90

SERVICE MANUAL UPDATE-SEC. 8A - ELECTRICAL DIAGNOSIS SCHEMATIC

03/21/1990

Oldsmobile 89-T-162

BULLETIN ILLUSTRATION LIST

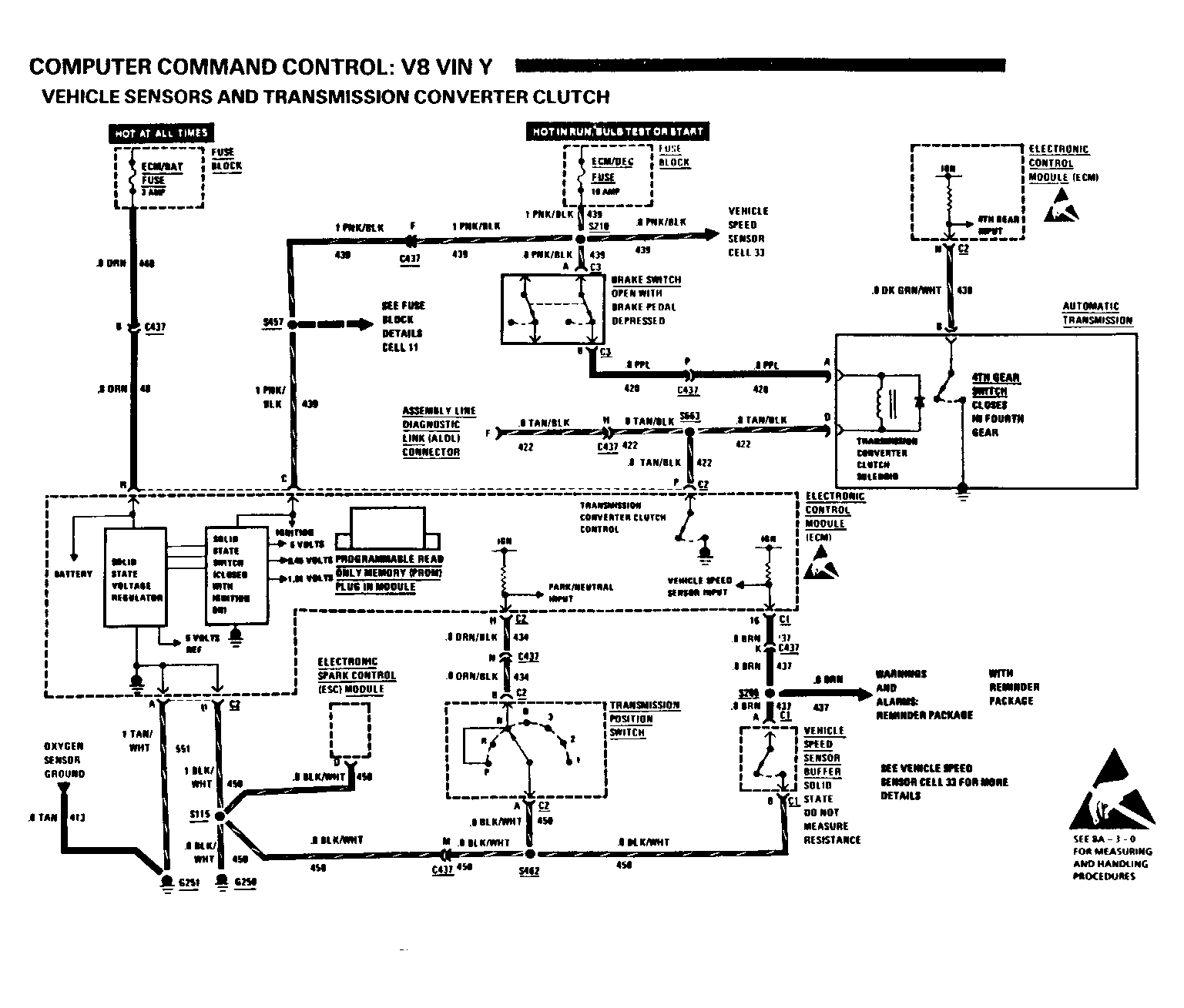

Fig 1: Graphic

GE00W006735

Fig 2: Service Information (1 Of 1)

GB0031576
