System Operation Information

The computerized engine control system consists of the following suBsystems: fuel control, Electronic Control Module (ECM), input signals (sensors and switches), output signals (controlled devices), emission control and diagnostic system. See Fig 1 .

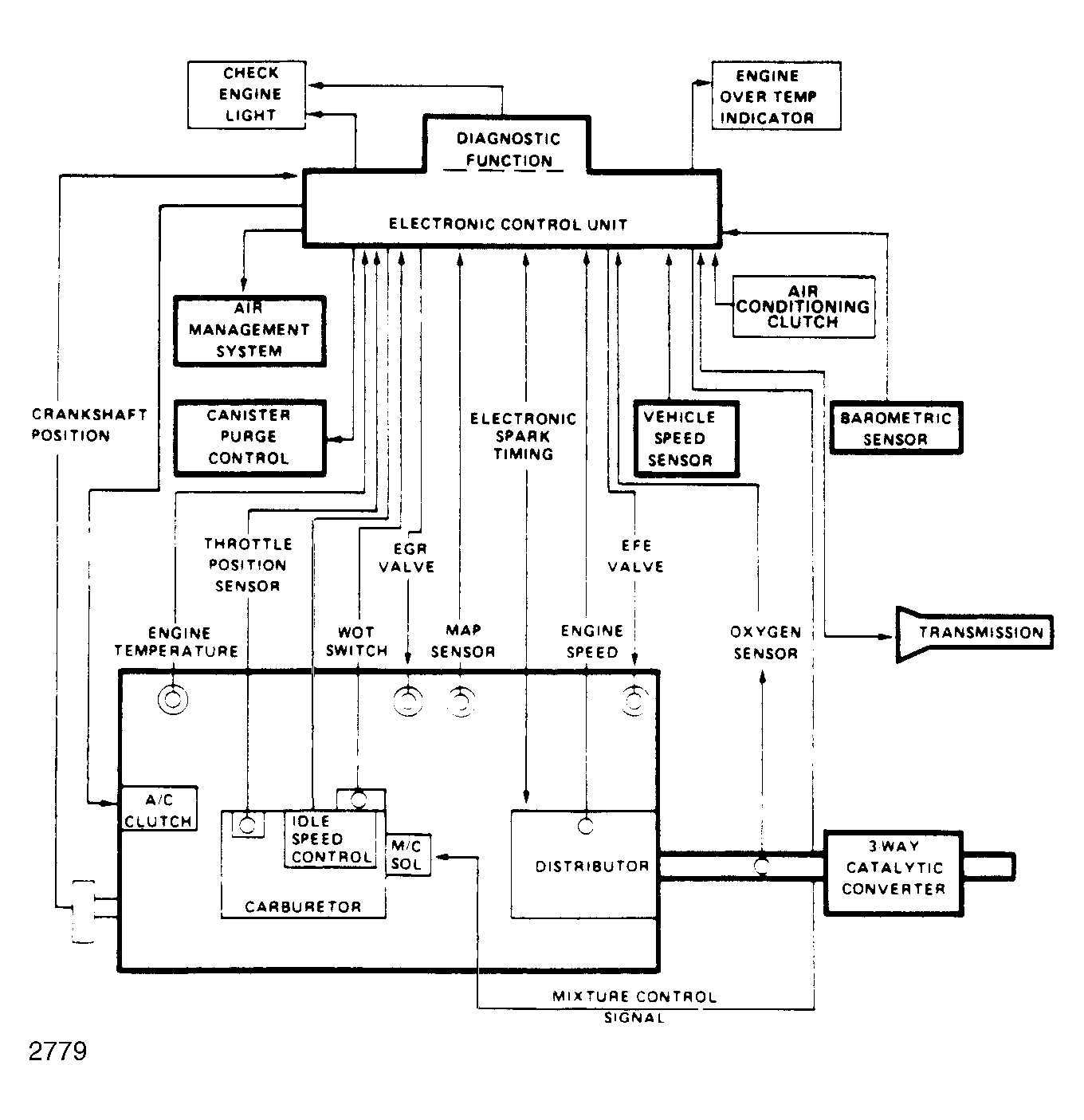

Fig 1: Typical Schematic of CCC System (Carbureted Shown)
