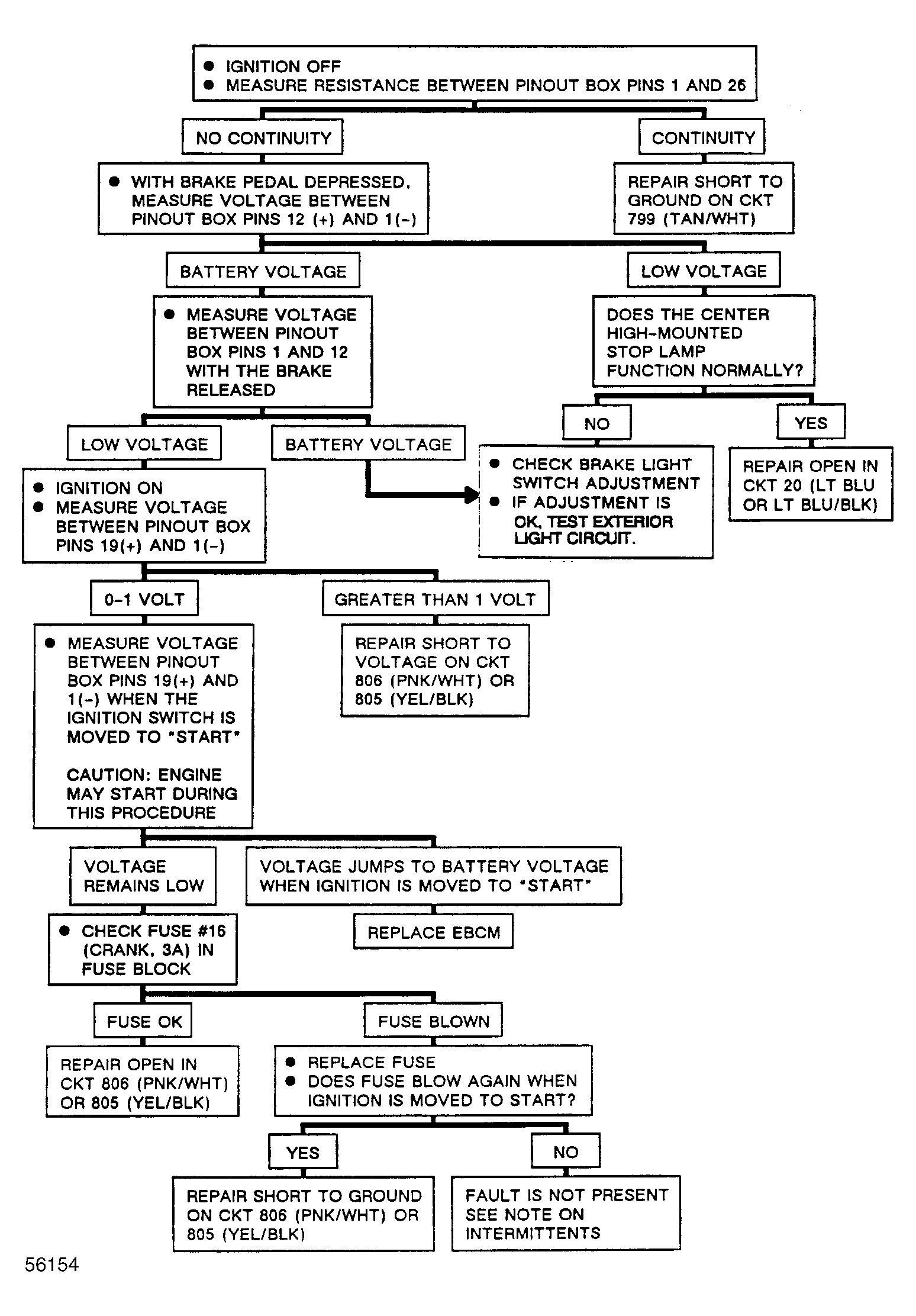

Stoplight Switch
Brake light switch input is provided to EBCM pin 12 when brake pedal is being depressed. This alerts EBCM to increase sensitivity to wheel sensor input signals. This input consists of a 12-volt signal on circuit No. 20 of the normally open brake light switch.
