Diagnostic Aids

Any electrical failure that prevents the main relay from providing switched power to EBCM pins No. 3 and 20 will prevent EBCM from powering up. The ANTI-LOCK light will remain on continuously.

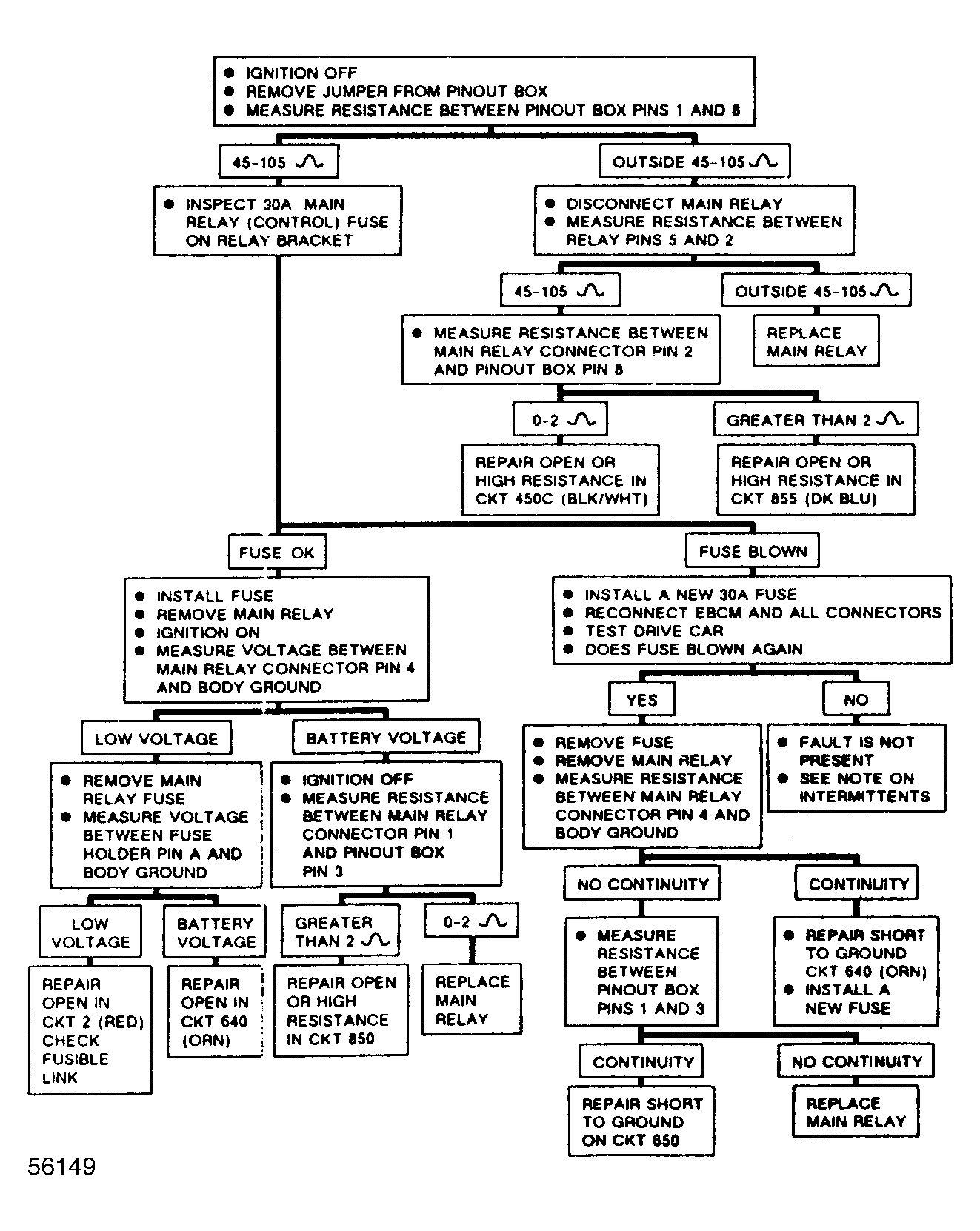

Fig 1: Chart B4 Main Relay Circuits
G56149
