Note On Intermittents

If an intermittent Code B667 is being set, manipulate the related wiring while observing BCM inputs BI76 and BI77. If the failure is induced, the reading will jump from "LOW" to "HIGH" with the switch off (not depressed). This code can also be set by the operator if the cruise "ON/OFF" switch is turned on and the operator was depressing either the "Set/Coast" or "Resume/Accel" switches.

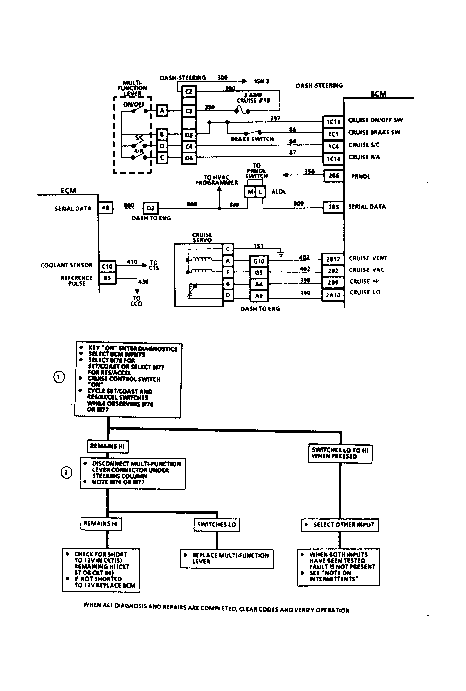

Fig 1: Set/Coast Or Resume/Accel Circuit Shorted
G57624
