Note On Intermittents

Perform a comprehensive visual check of the generator wiring and connections.

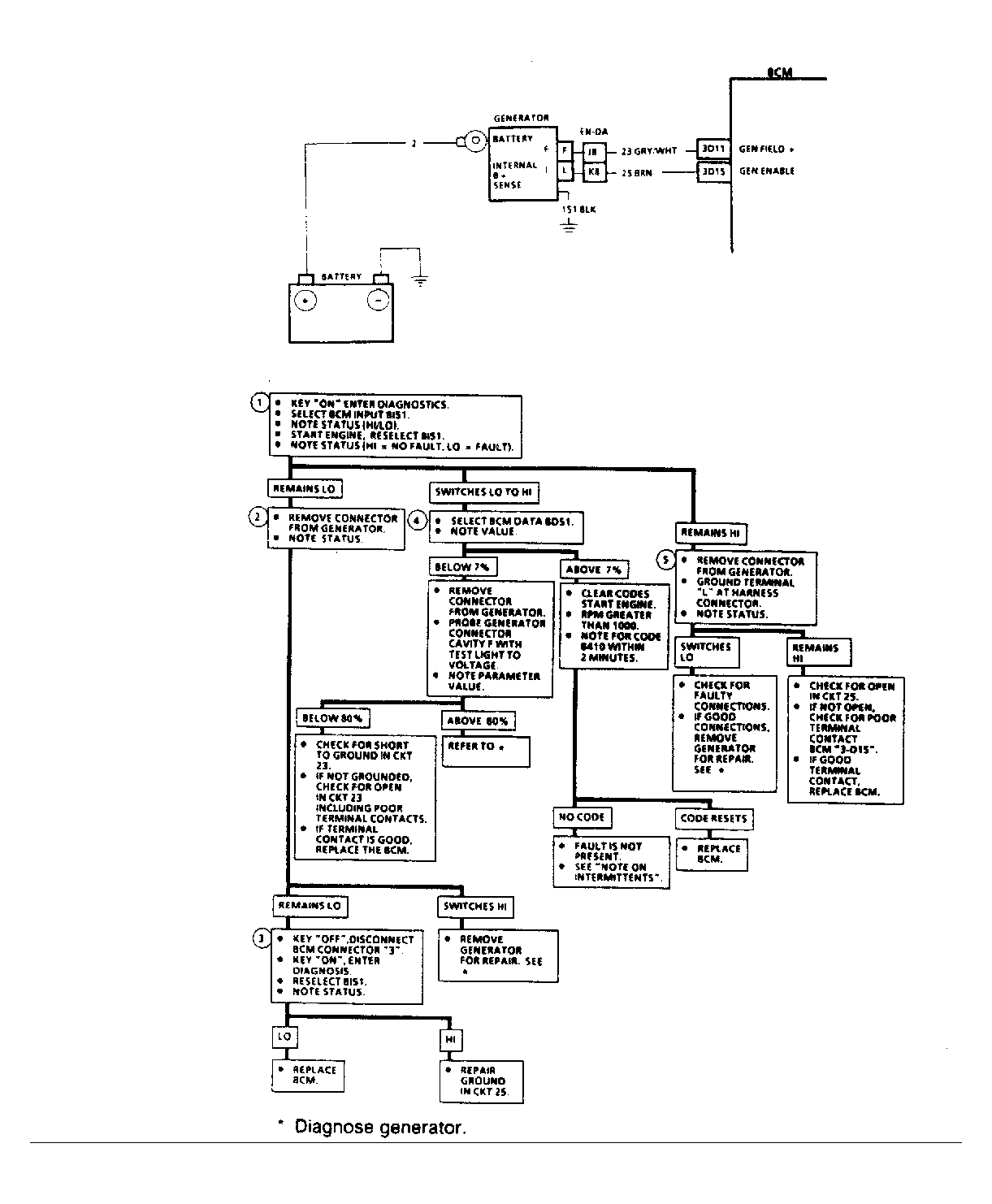

Fig 1: Code B410, Charging System Circuit

G57585
