Note On Intermittents

If an intermittent Code B119 is being set, manipulate the related wiring while observing BCM data parameter BD44. If the failure is induced, the reading will jump from its normal value to a reading outside the range of 2-98 percent. Make certain owner is aware not to cover sensor.

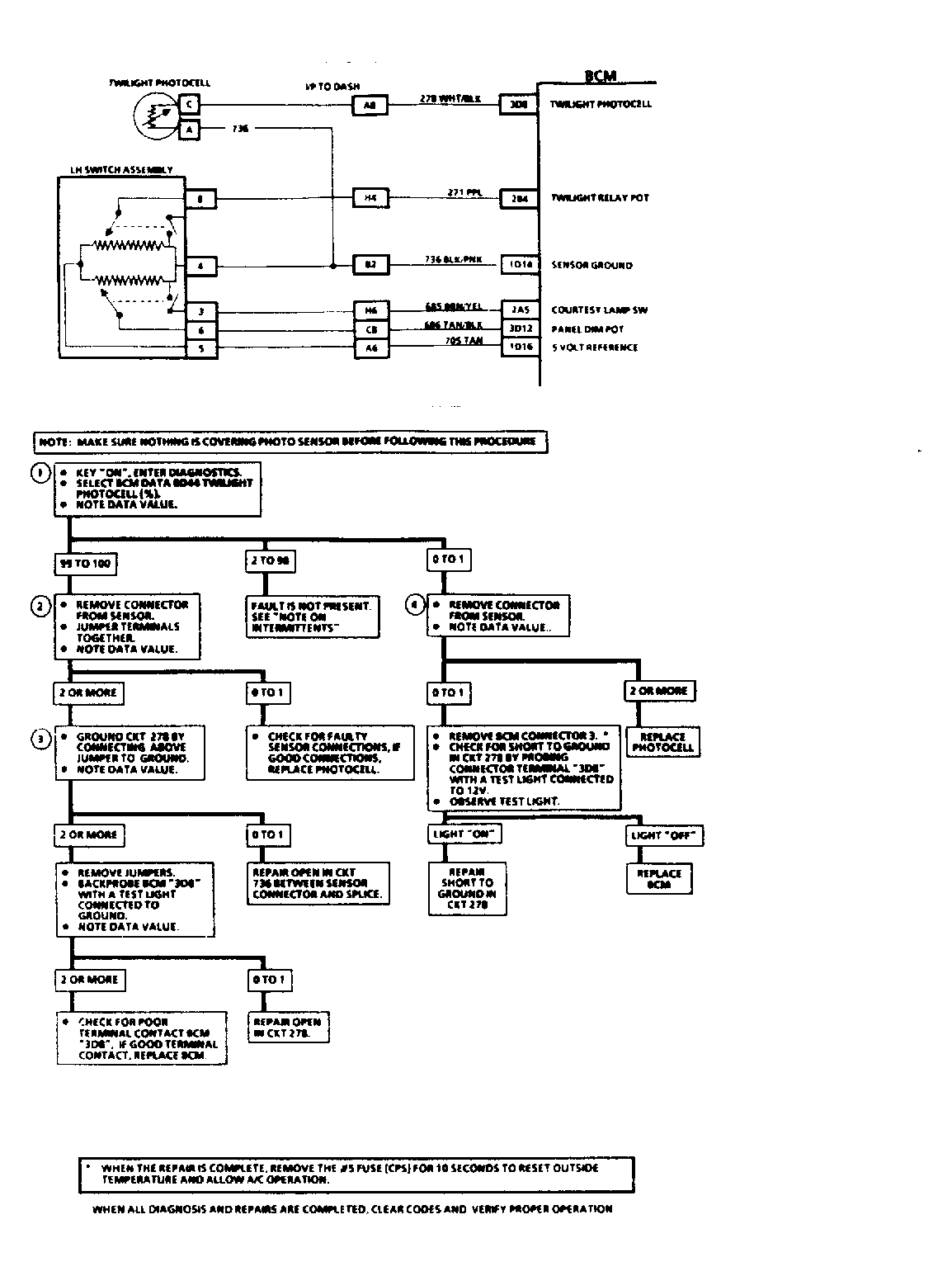

Fig 1: Code B119, Twilight Photocell Circuit
G57541
