Note On Intermittents

If an intermittent Code B115 is being set, manipulate the related wiring while observing BCM data BD32. If the failure is induced, the reading will jump from its normal value to a reading outside the range of -29°F (-34°) to 209°F (85°C).

If the value displayed by BD32 is not reasonably close to a corresponding thermometer reading, check for poor terminal contact or replace sensor.

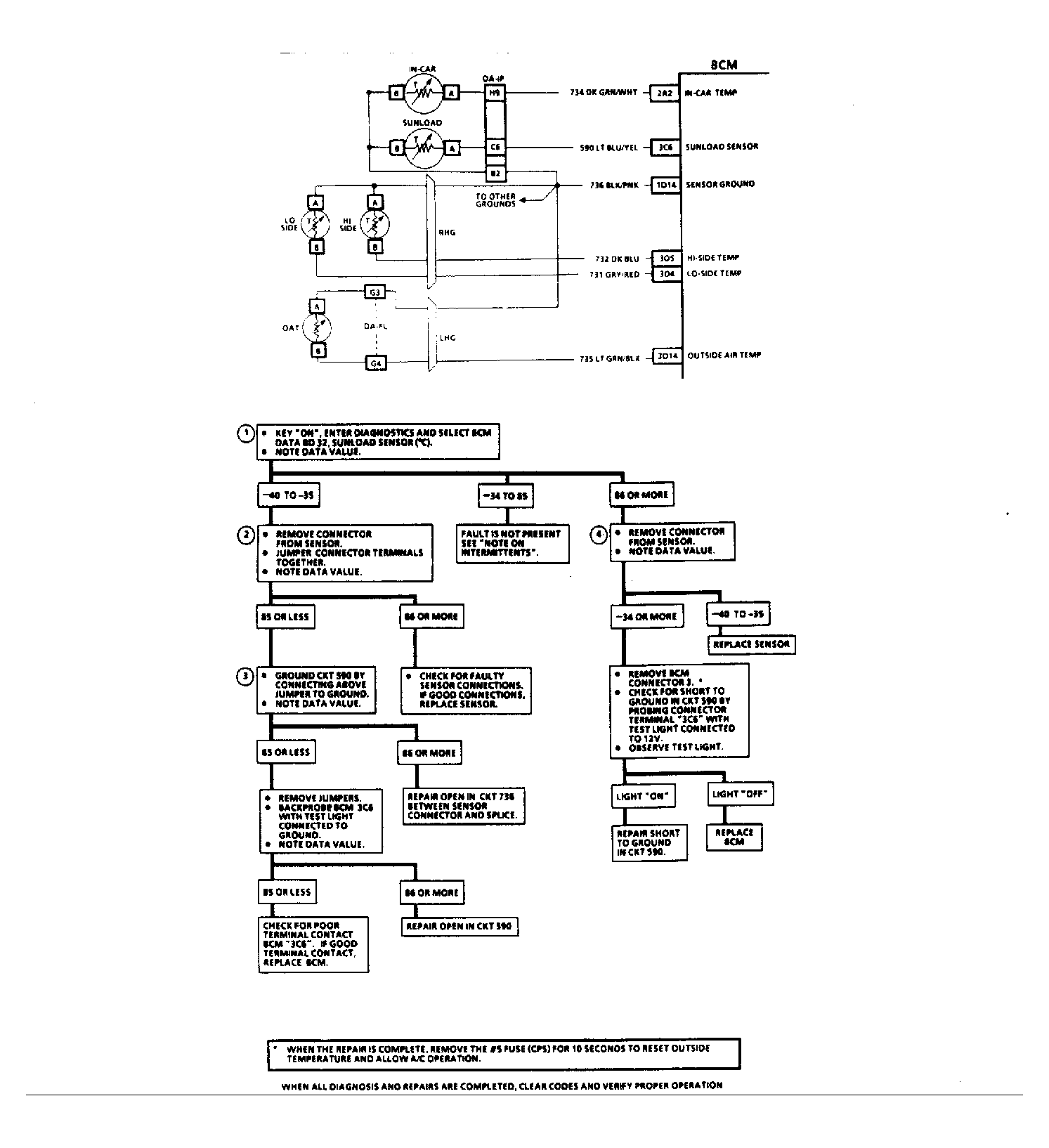

Fig 1: Code B115, Sun Load Sensor Circuit
G57537
