EXPERTEC TSB (90-T-17)

Publication date: 1989-10-09
Reference number: 90-T-17

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 90-T-17, Date of Issue: 10/09/89

10/09/1989

Oldsmobile 90-T-17

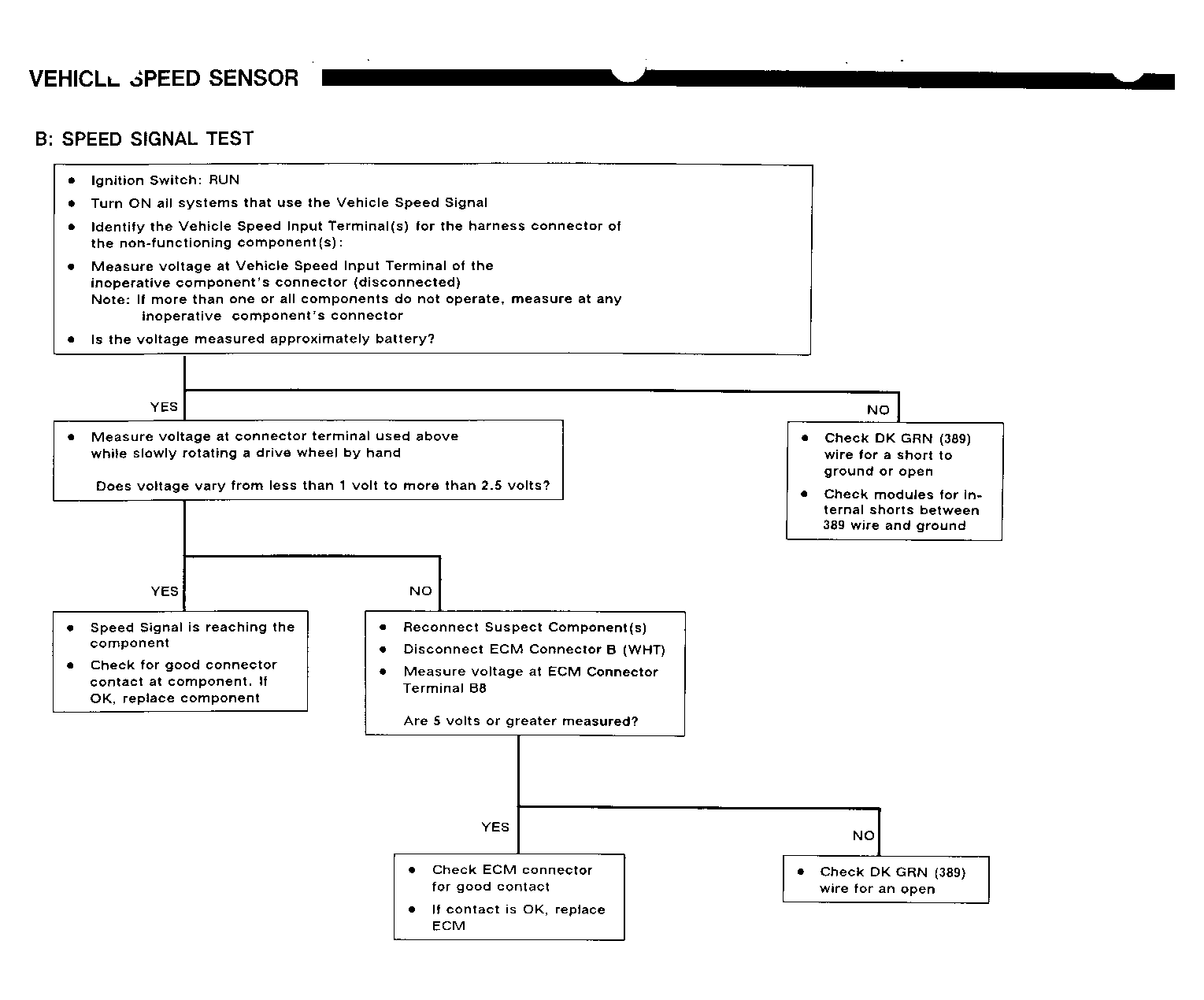

Fig 1: Graphic

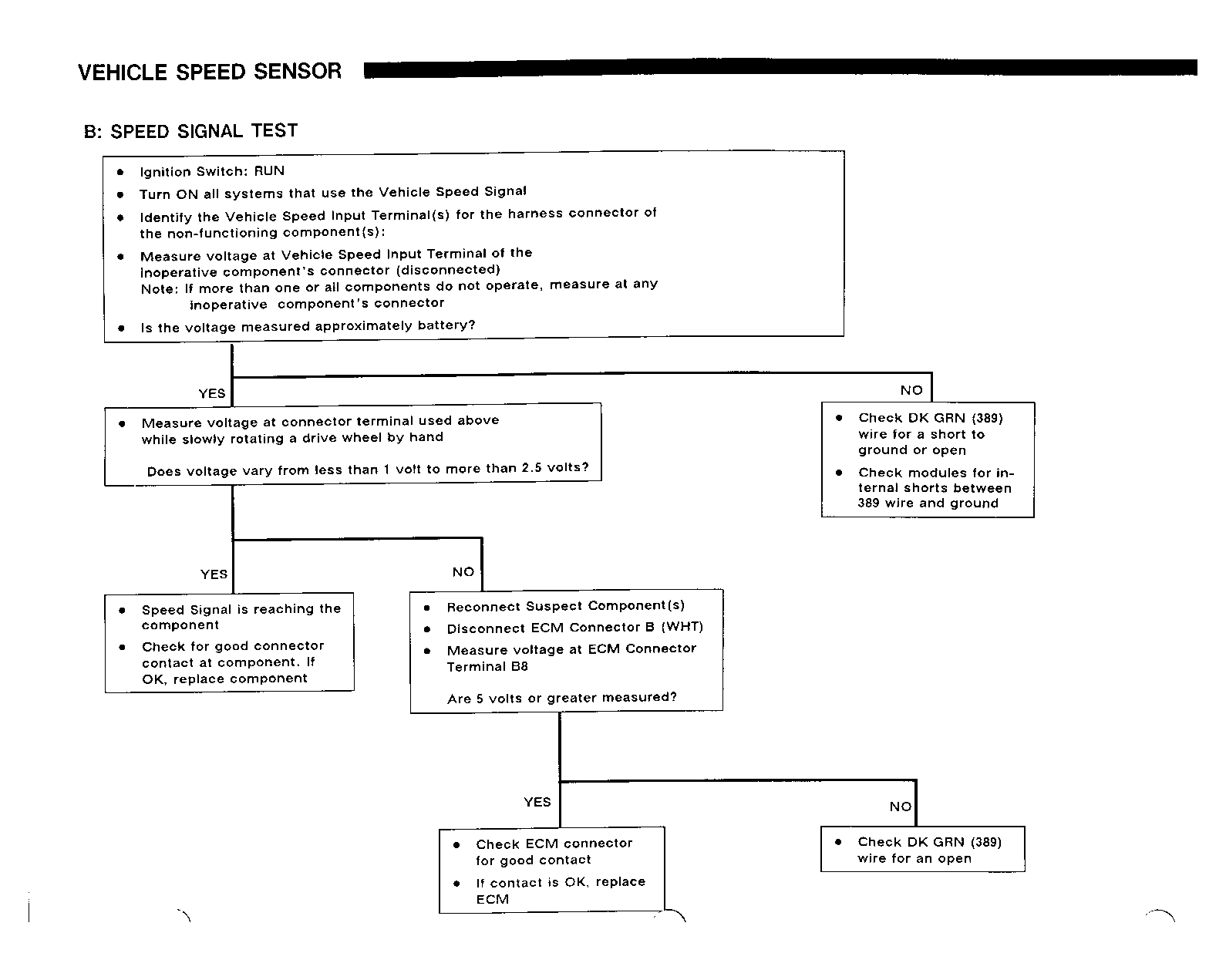

Fig 2: Graphic

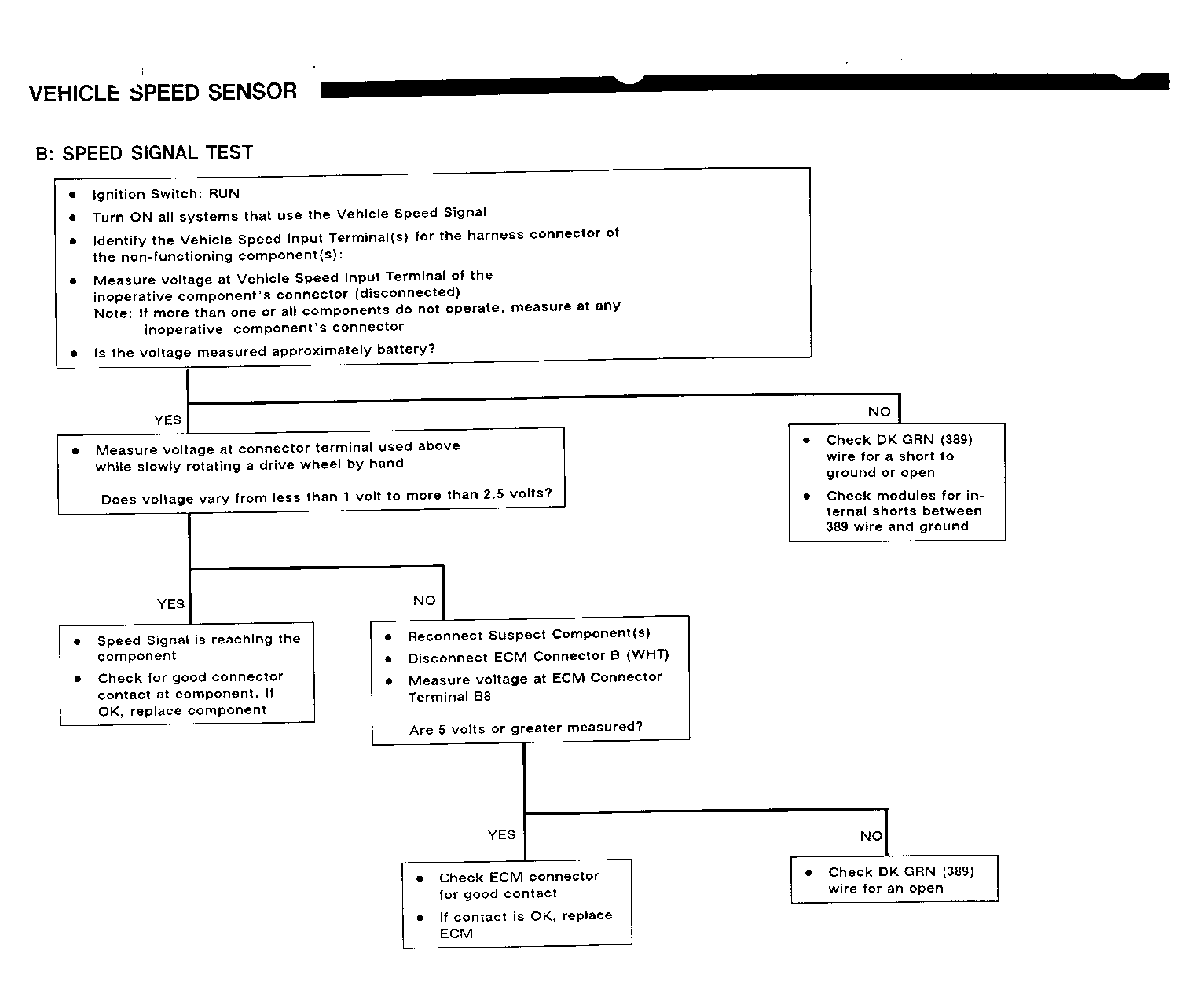

Fig 3: Graphic

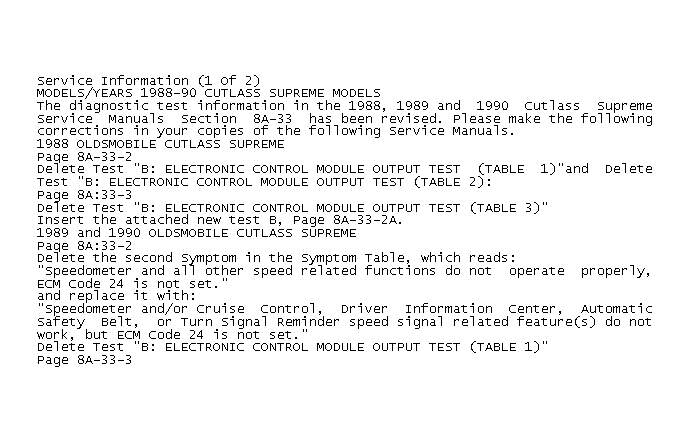

Fig 4: Service Information (1 Of 2)

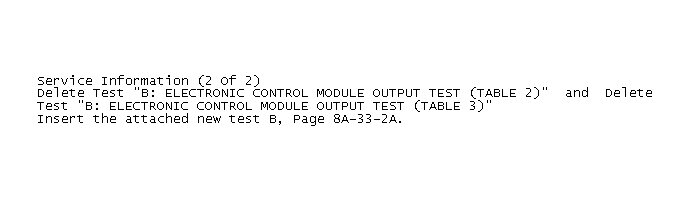

Fig 5: Service Information (2 Of 2)
