EXPERTEC TSB (89-T-41)

Publication date: 1989-01-25
Reference number: 89-T-41

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 89-T-41, Date of Issue: 01/25/89

01/25/1989

Oldsmobile 89-T-41

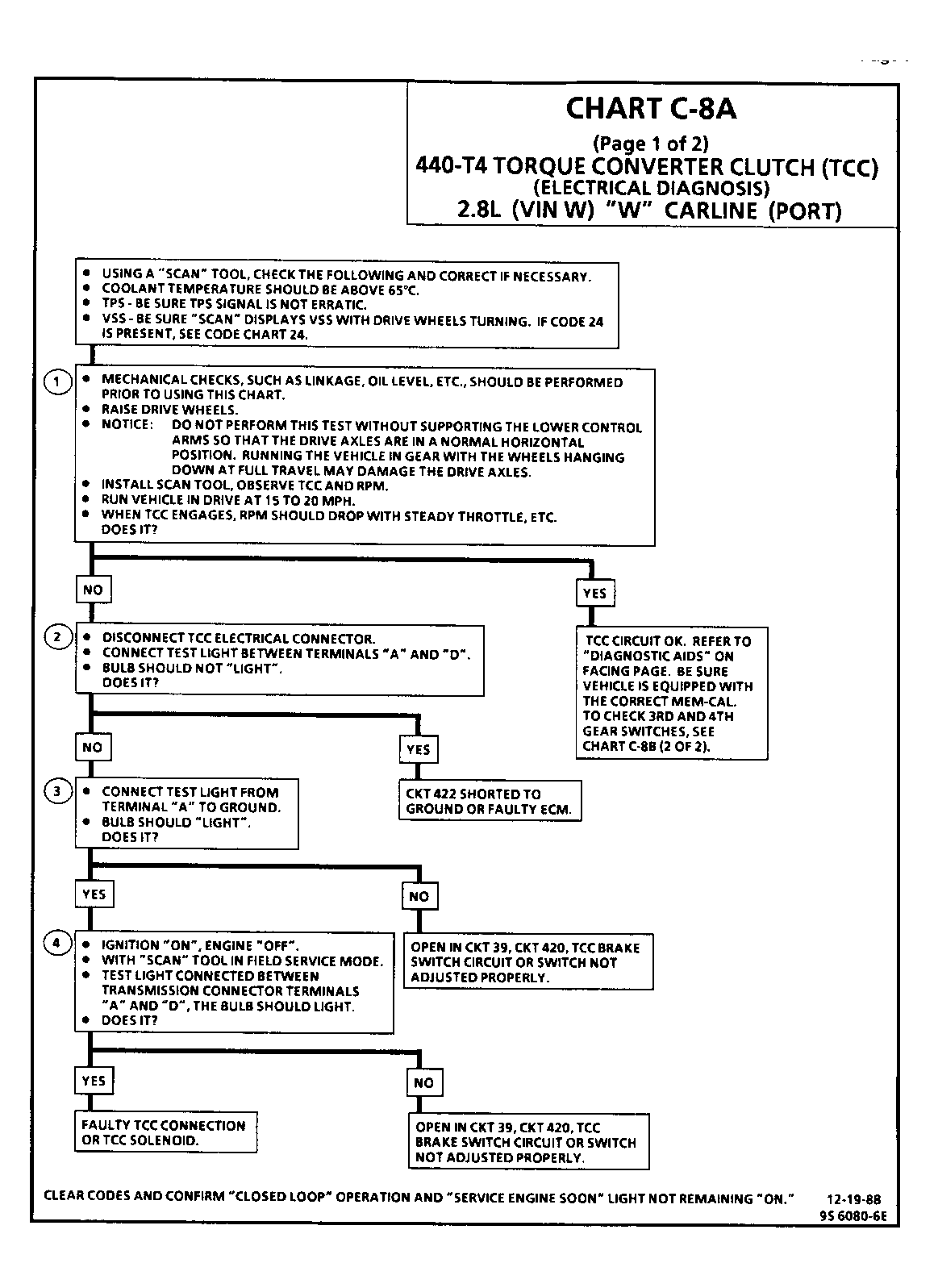

Fig 1: Graphic

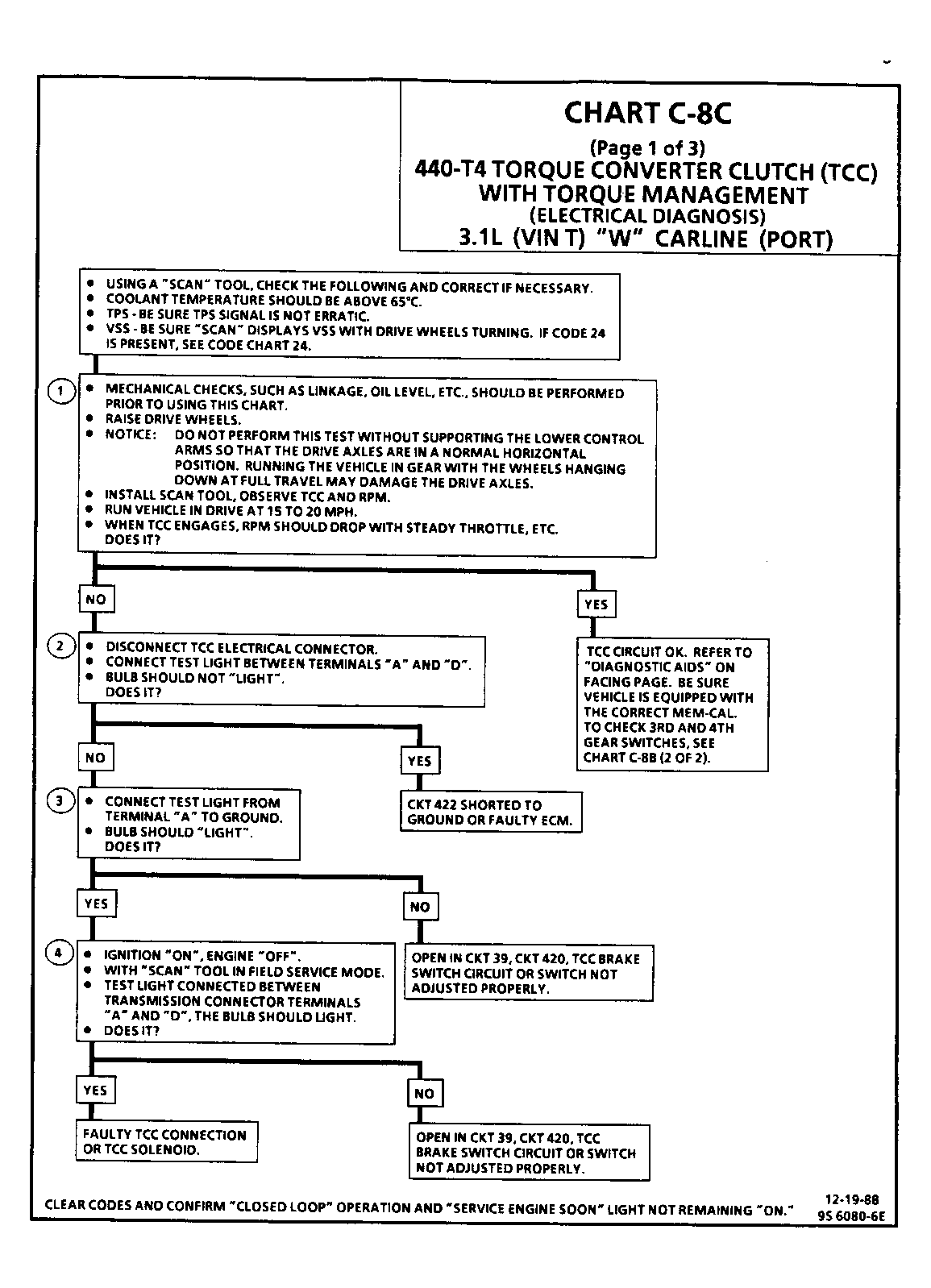

Fig 2: Graphic

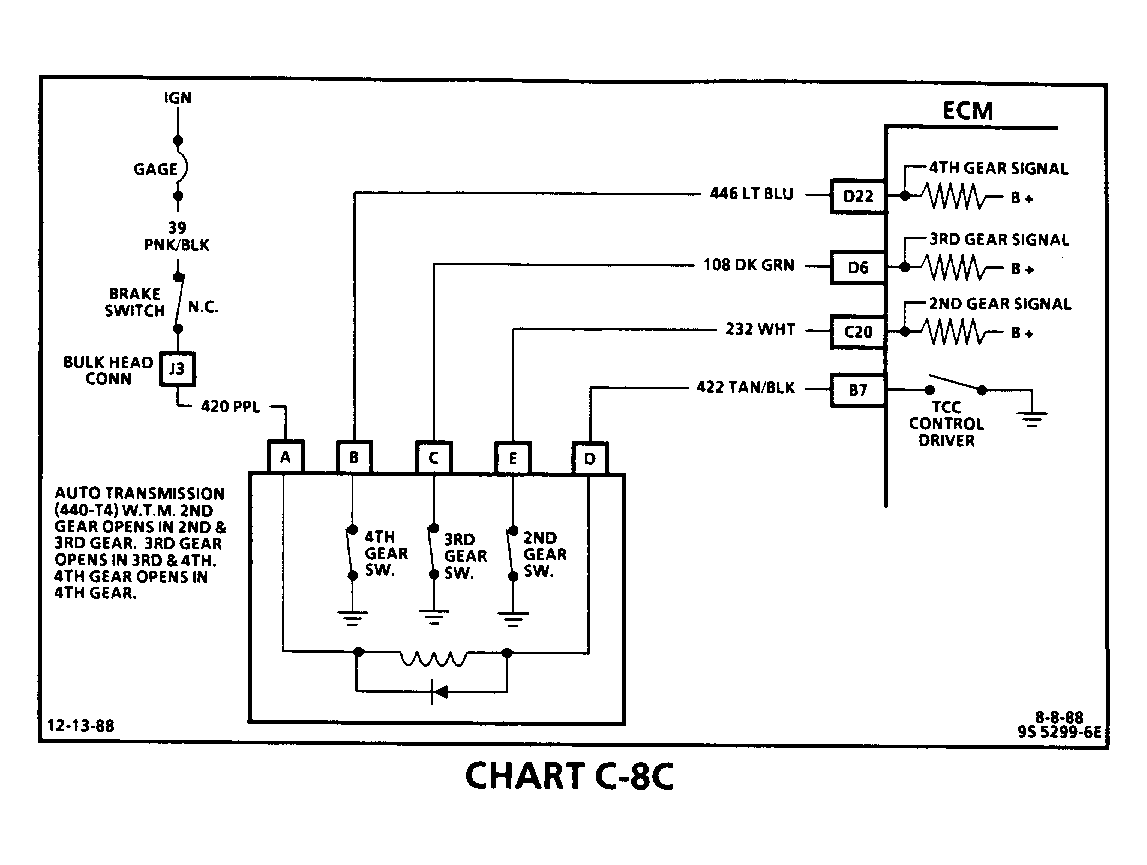

Fig 3: Graphic

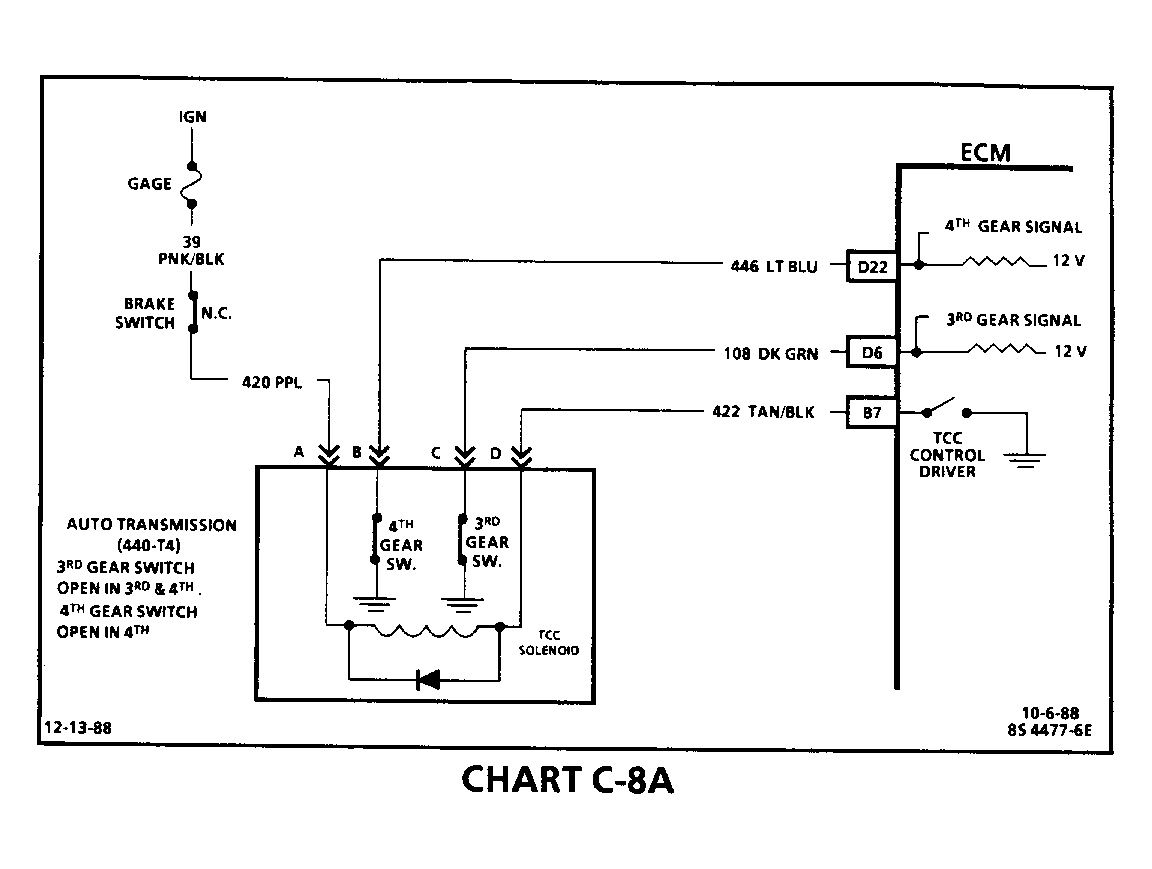

Fig 4: Graphic

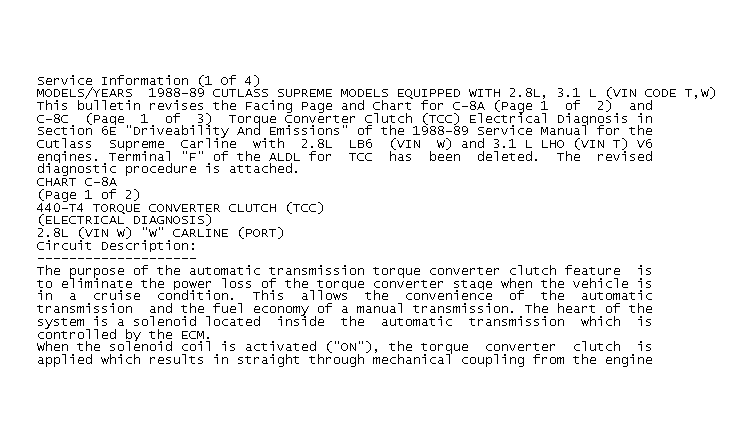

Fig 5: Service Information (1 Of 4)

Fig 6: Service Information (2 Of 4)

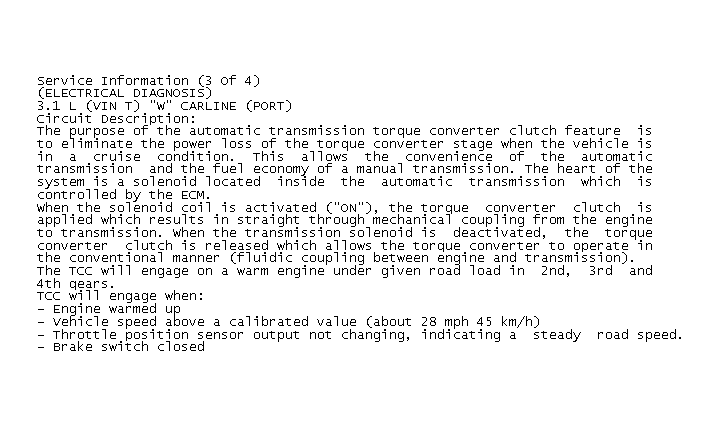

Fig 7: Service Information (3 Of 4)

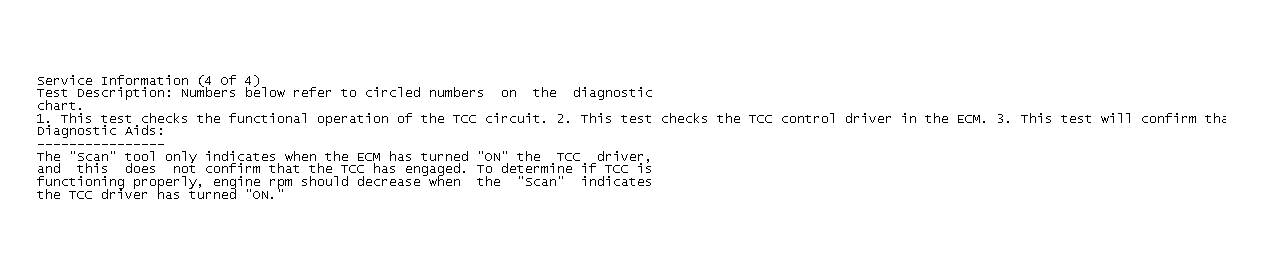

Fig 8: Service Information (4 Of 4)
