EXPERTEC TSB (40-3)

Publication date: 1989-09-27
Reference number: 40-3

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 40-3, Date of Issue: 11/13/89

CHILD SEAT INSTALLATION - VEHICLES W/AUTO. SAFETY BELTS

Model(s): 1987-89 Oldsmobile Cutlass Calais and Eighty-eight Royale

1988-89 Oldsmobile Cutlass Supreme Models (Section No. 10)

Bulletin No.: Oldsmobile 40-3

Date: 11/13/1989

SERVICE INFORMATION

This article cancels and supersedes the August 1989 Service Guild article.

This article has been revised to include 1990 model year.

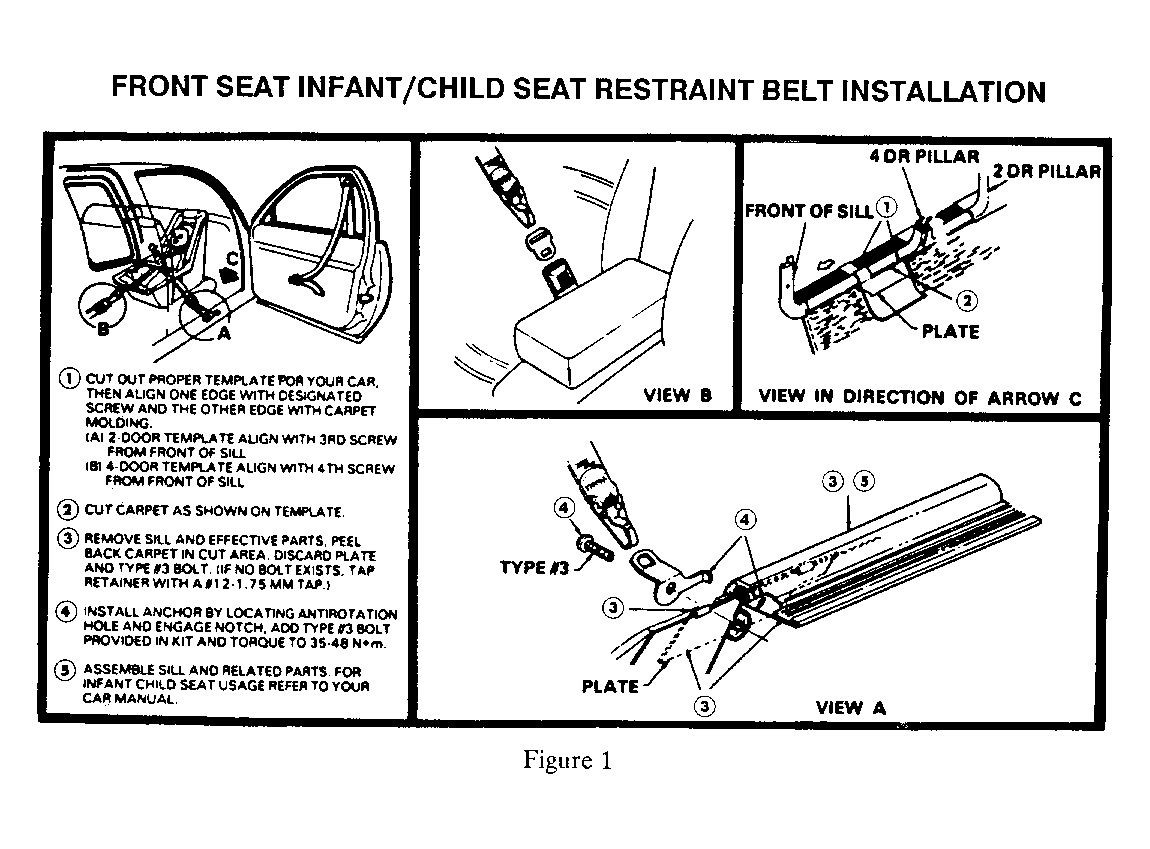

To install a child's seat in models listed above that are equipped with automatic safety belts, a separate child seat restraint is required. (Refer to Fig 1 ) A child seat restraint belt package is available only as a dealer installed option. Belts are available only in the color black. Accessory packages listed are available through GMSPO:

BULLETIN ILLUSTRATION LIST

Fig 1: Graphic

PARTS INFORMATION

Years and Model	Part Number	Description
1987-90 Eighty-Eight	999564	Belt/Hardware Package
1987-90 Cutlass Calais	12340286 12340234	Belt Only Hardware Package
1988-90 Cutlass Supreme	12340286 12340243	Belt Only Hardware Package

Parts are currently available from GMSPO.

The child seat restraint accessory belt package kit and installation of same will be on a "No Charge To Owner" basis.

WARRANTY INFORMATION

Labor Operation Number: C9170
