Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location
ABS Diode (6000 STE) Behind right side of dash, taped to wiring harness.
A/C Compressor Diode In compressor wiring connector.
A/C-Heater Blower Resistors On right side of engine cowl.
ALDL Connector On bottom of dash, near steering column.
Buffer Amplifier Behind right side of dash, ahead of ECM.
Convenience Center Behind right side of dash, behind glove box. See Figure .

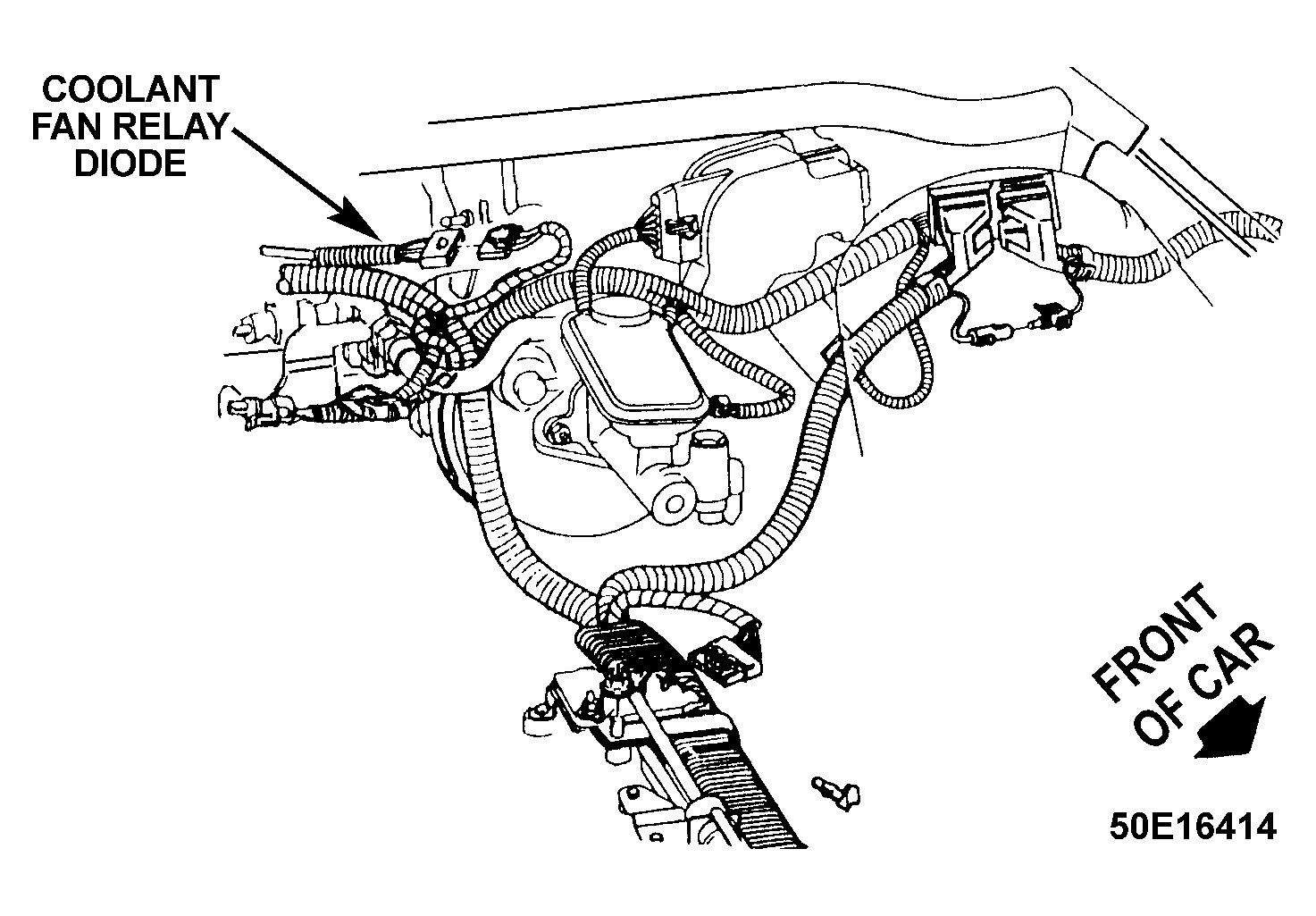

Cooling Fan Relay Diode (3.8L) In Engine/SFI harness, near brake master cylinder. See Figure .
Fuel Pump Prime Connector (2.5L) In front of transaxle, clipped to harness.
Fuel Pump Prime Connector (2.8L) In wiring harness, near fuel pump relay.
Fuel Pump Prime Connector (3.8L) In wiring harness, below manifold air temperature sensor.
Sentinel Amplifier Behind center of dash, behind ashtray.
Vehicle Speed Sensor Buffer Behind right side of dash, behind ECM. See Figure .
