FWD Models

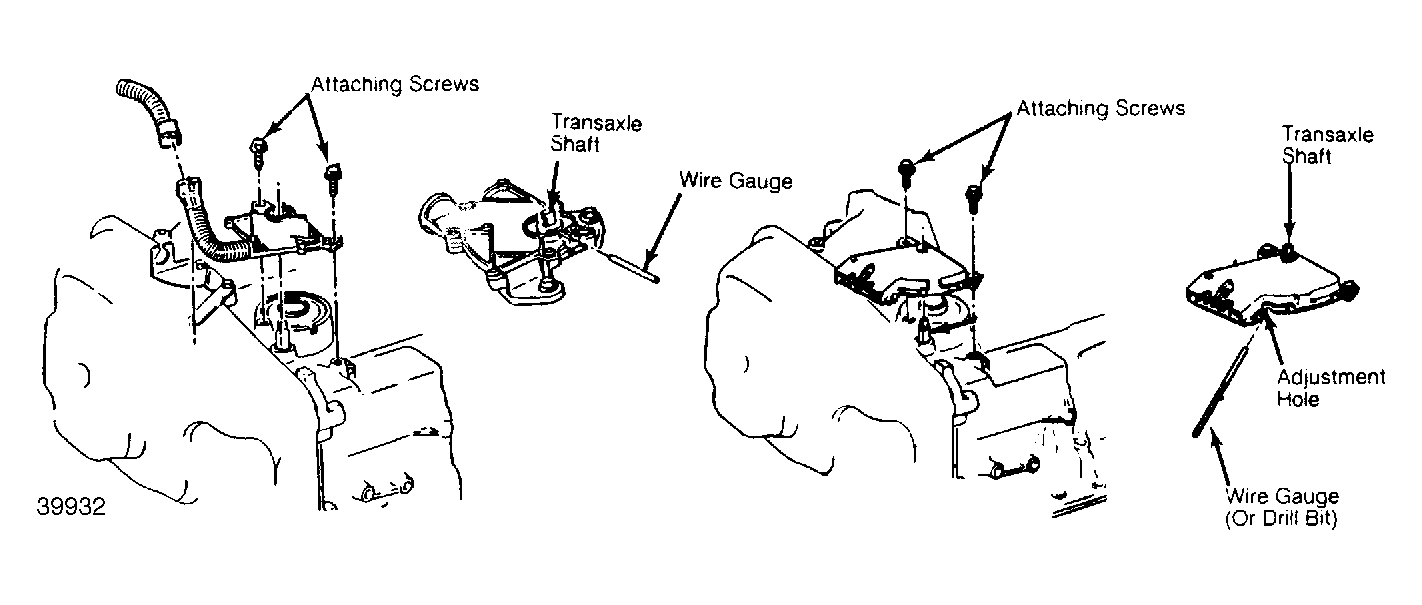

- There are 2 different design neutral safety/back-up light switches in used on FWD models. See Fig 1 . To adjust switch, place gearshift lever in Neutral.
- Ensure shift cable is adjusted correctly and transaxle shift lever is in Neutral. Loosen switch attaching screws. Rotate switch on shifter assembly to align adjustment hole with carrier tang hole.
- Insert a 3/32" (2.4 mm) wire gauge about 5/8" in switch holes. Tighten attaching screws. Remove wire gauge. New switches may have plastic pin installed in hole. Plastic pin is designed to shear off during operation of shift lever.
