EXPERTEC TSB (38-2)

Publication date: 1987-09-24
Reference number: 38-2

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 38-2, Date of Issue: 10/15/87

ESSENTIAL TOOL SHIPMENT - TRANSAXLE SERVICE TOOLS

Model(s): 1988 Oldsmobile

Bulletin No.: 38-2

Date: 10/15/1987

SUBJECT

Essential Tool Shipment - Muncie/HM 282 Transaxle Service Tools (Section No. O).

The first shipment of tools for the 1988 model year was shipped to all Oldsmobile dealers in September. Refer to the illustrations for tool number and names.

BULLETIN ILLUSTRATION LIST

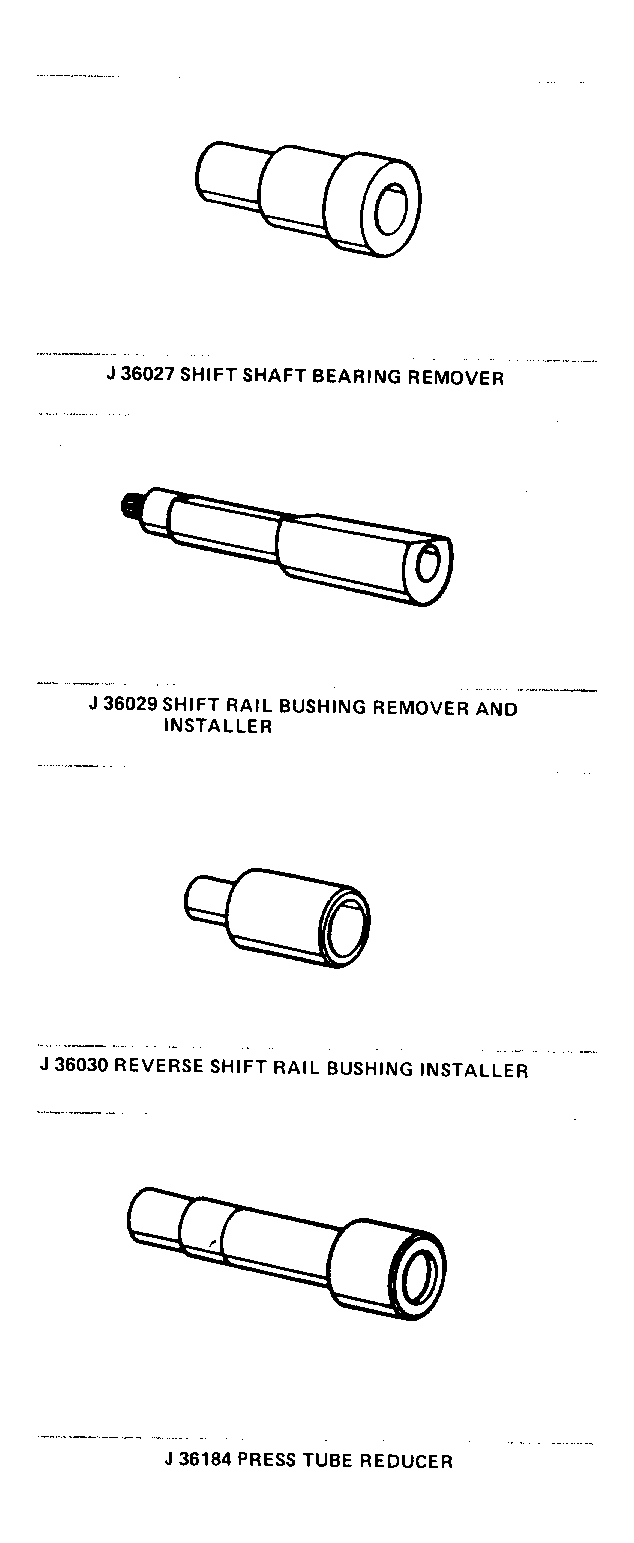

Fig 1: Graphic

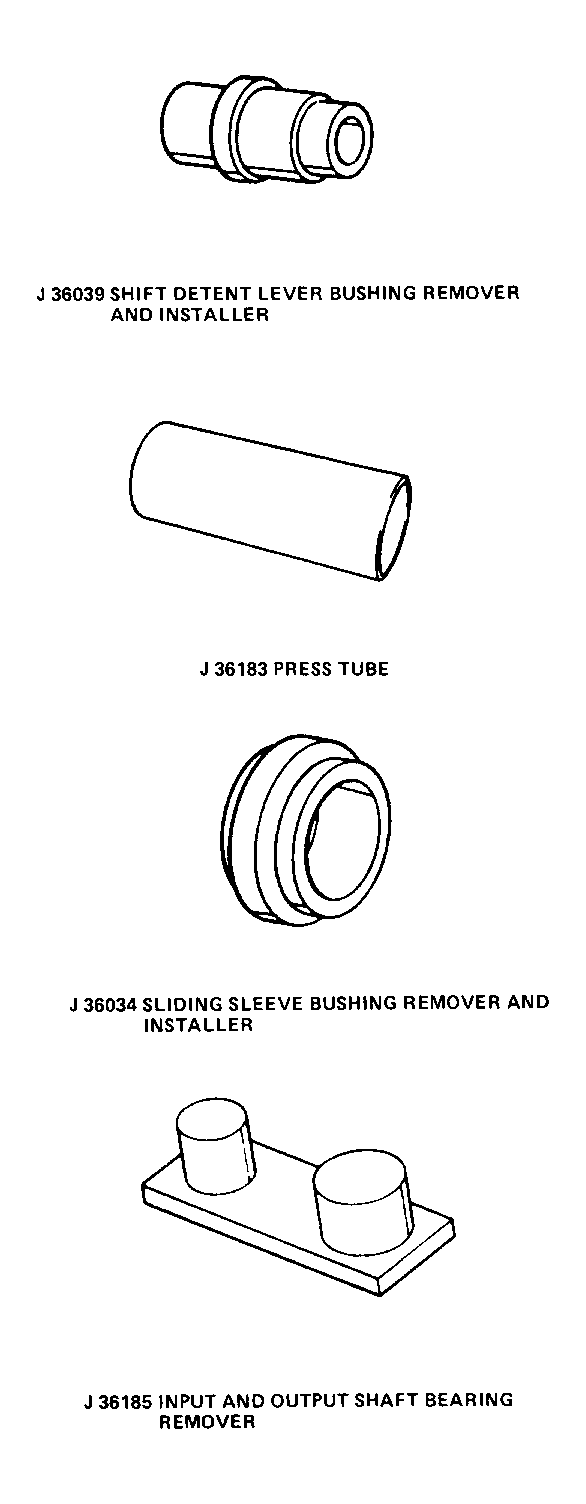

Fig 2: Graphic

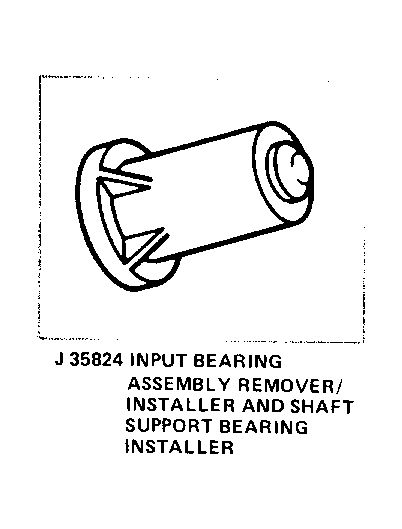

Fig 3: Graphic

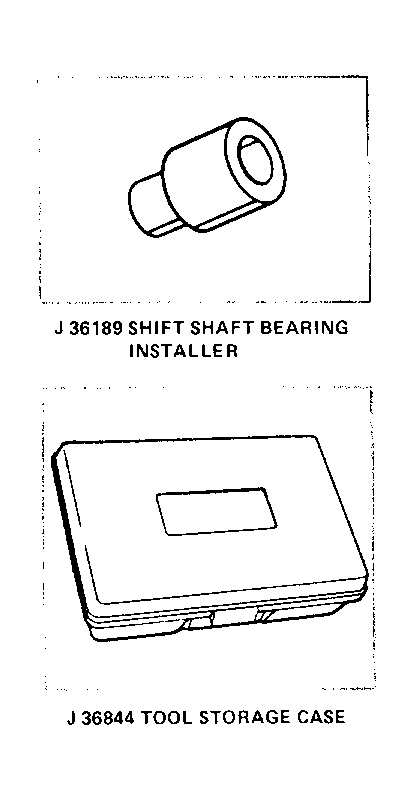

Fig 4: Graphic
