EXPERTEC TSB (02-95-43)

Publication date: 1995-02-01
Reference number: 02-95-43

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-95-43, Date of Issue: 02/01/95

02/01/1995

Oldsmobile 02-95-43

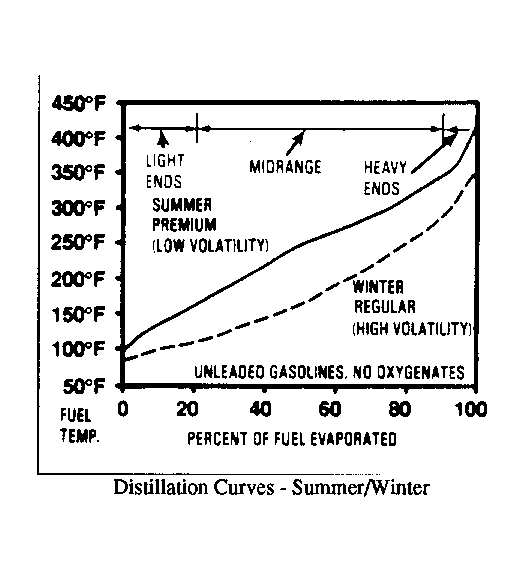

Fig 1: Graphic

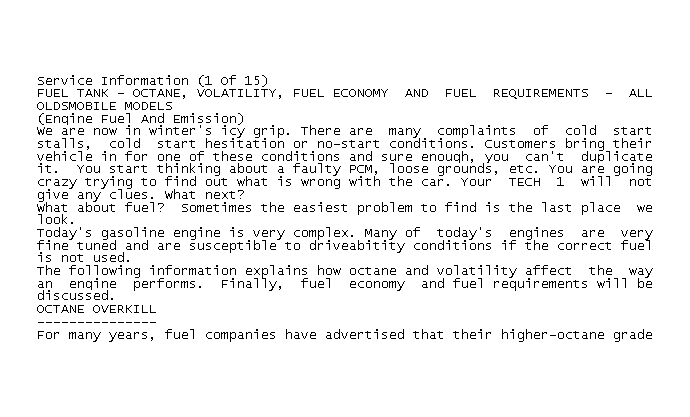

Fig 2: Service Information (1 Of 15)

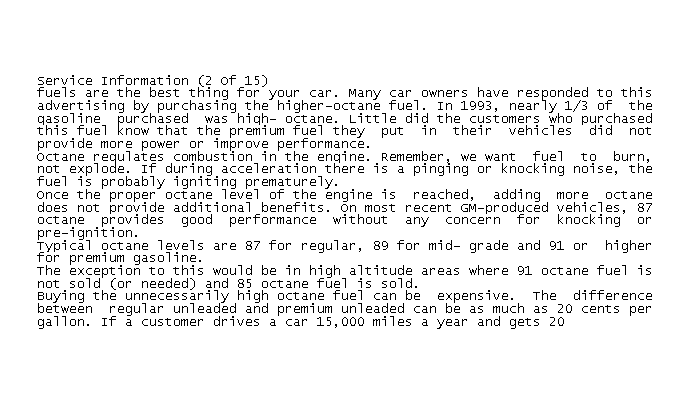

Fig 3: Service Information (2 Of 15)

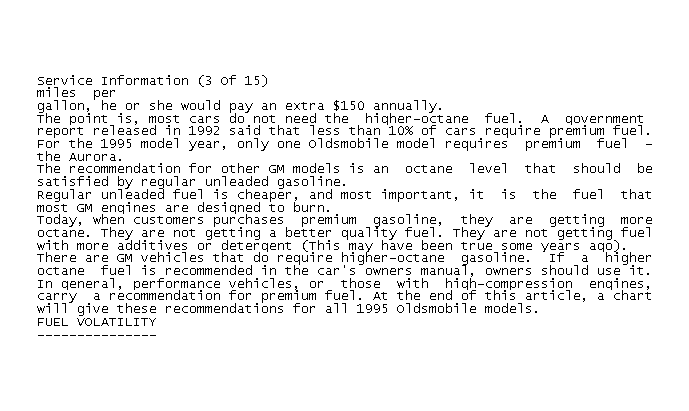

Fig 4: Service Information (3 Of 15)

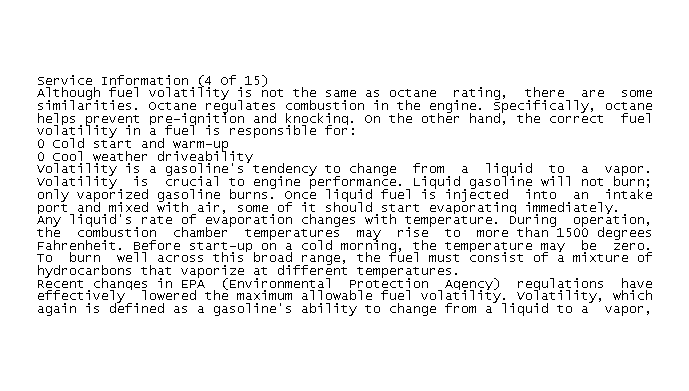

Fig 5: Service Information (4 Of 15)

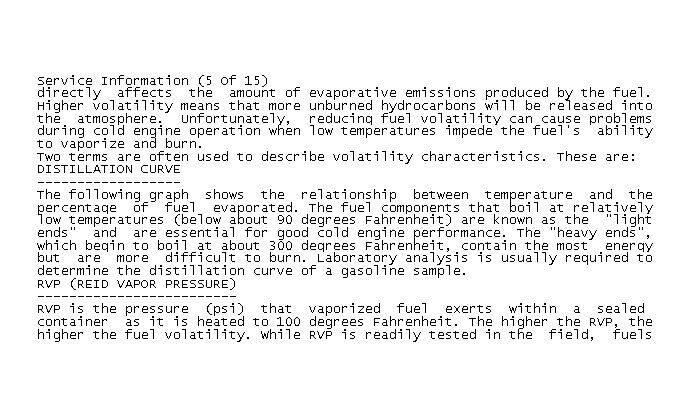

Fig 6: Service Information (5 Of 15)

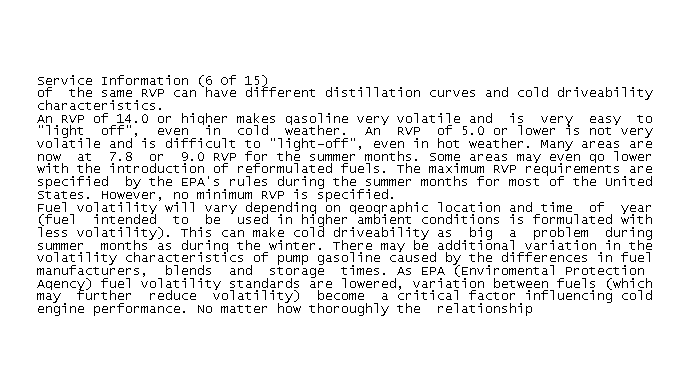

Fig 7: Service Information (6 Of 15)

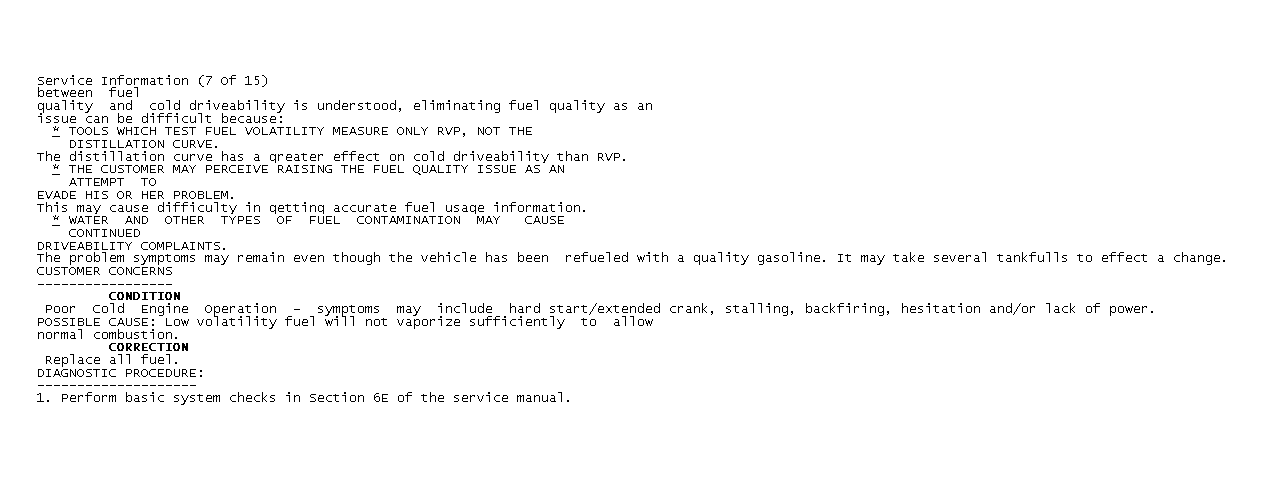

Fig 8: Service Information (7 Of 15)

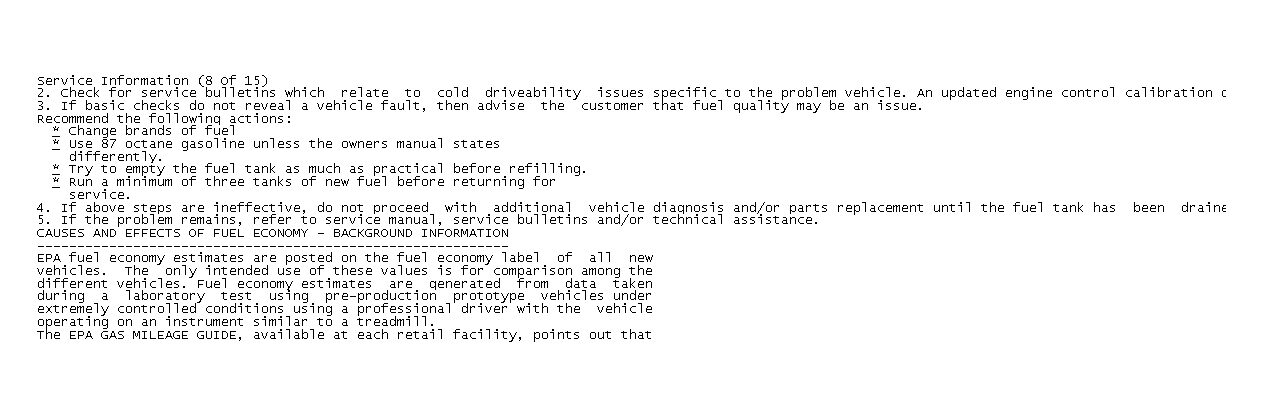

Fig 9: Service Information (8 Of 15)

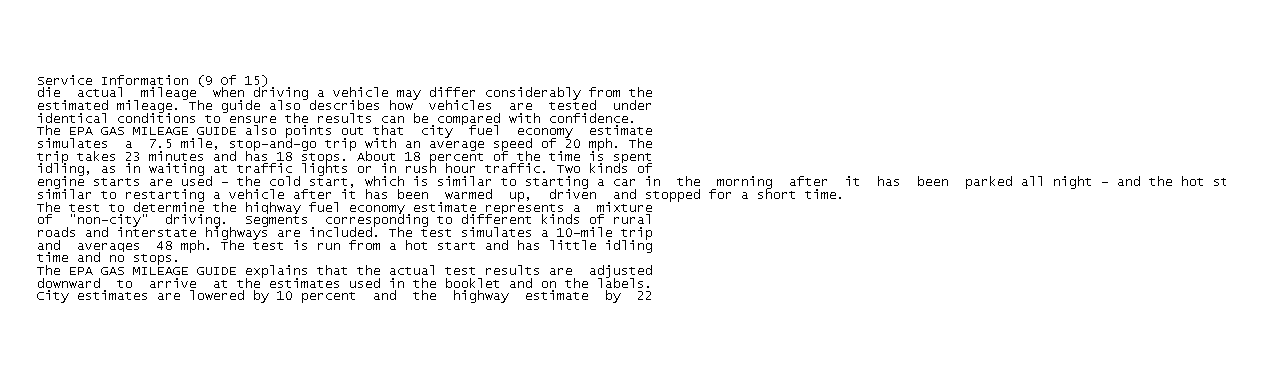

Fig 10: Service Information (9 Of 15)

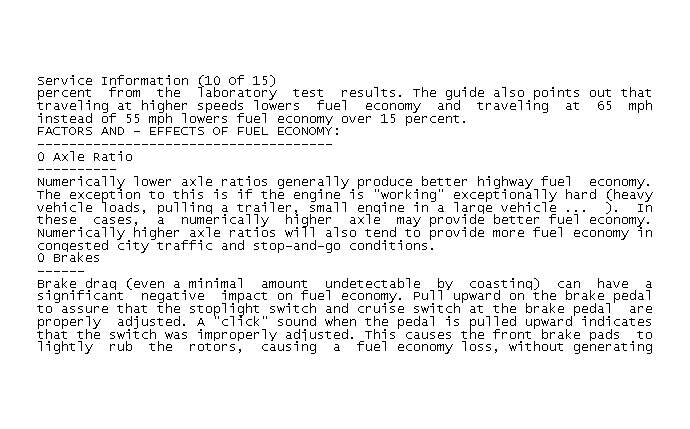

Fig 11: Service Information (10 Of 15)

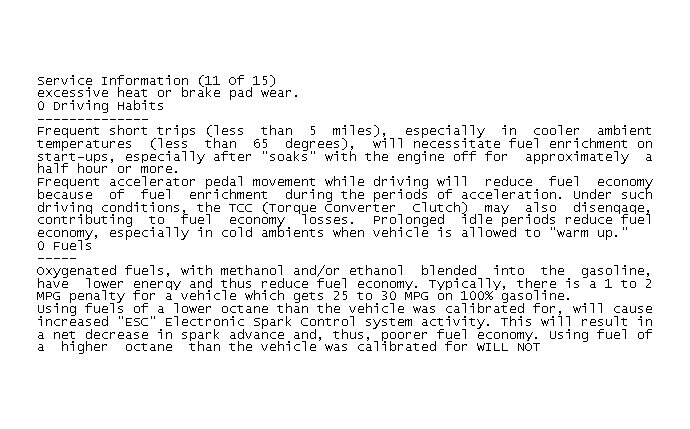

Fig 12: Service Information (11 Of 15)

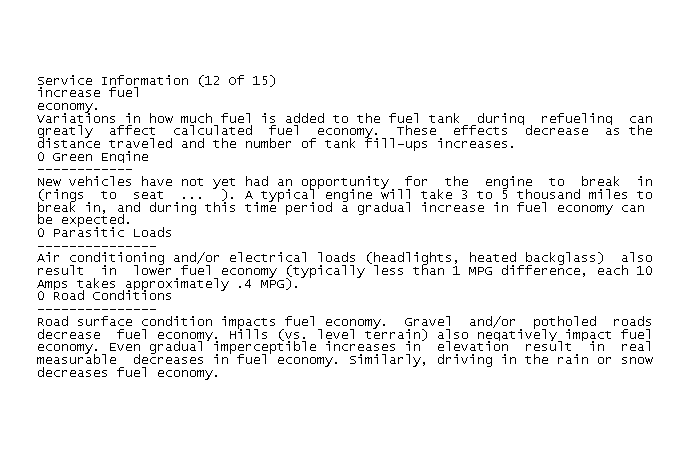

Fig 13: Service Information (12 Of 15)

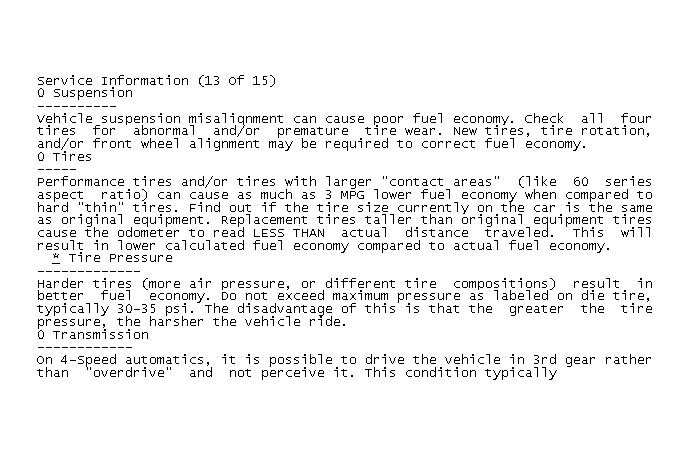

Fig 14: Service Information (13 Of 15)

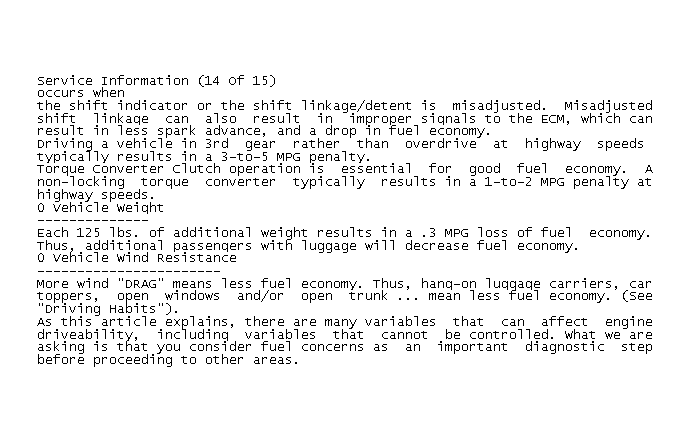

Fig 15: Service Information (14 Of 15)

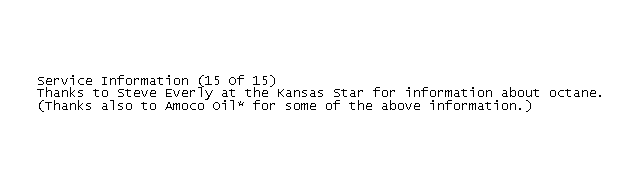

Fig 16: Service Information (15 Of 15)
