EXPERTEC TSB (87-C-03)

Publication date: 1987-04-06
Reference number: 87-C-03

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 87-C-03, Date of Issue: 04/06/87

Oldsmobile 87-C-03

04/06/1987

Fig 1: Graphic

Fig 2: Graphic

Fig 3: Graphic

Fig 4: Graphic

Fig 5: Graphic

Fig 6: Graphic

Fig 7: Graphic

Fig 8: Graphic

Fig 9: Graphic

Fig 10: Graphic

Fig 11: Graphic

Fig 12: Graphic

Fig 13: Graphic

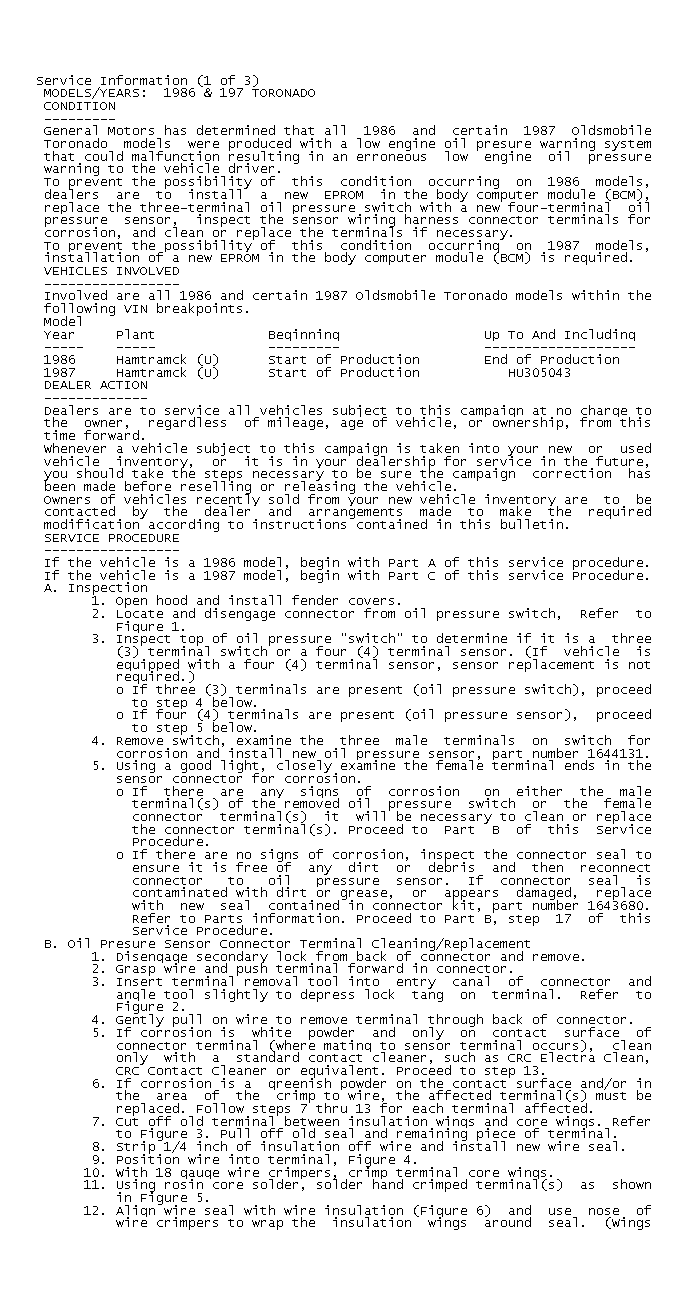

Fig 14: Service Information (1 of 3)

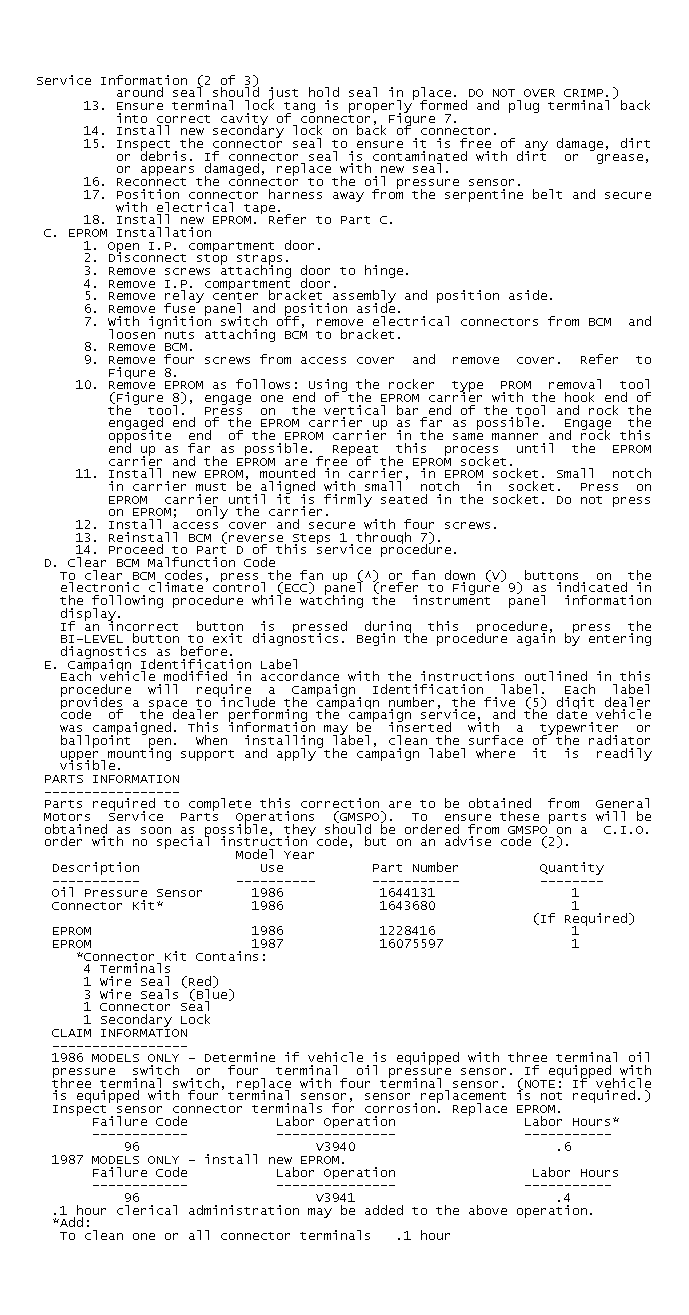

Fig 15: Service Information (2 of 3)

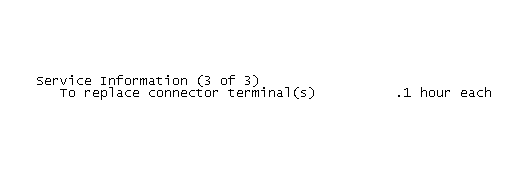

Fig 16: Service Information (3 of 3)
