EXPERTEC TSB (89-T-83)

Publication date: 1989-05-23
Reference number: 89-T-83

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 89-T-83, Date of Issue: 05/23/89

05/23/1989

Oldsmobile 89-T-83

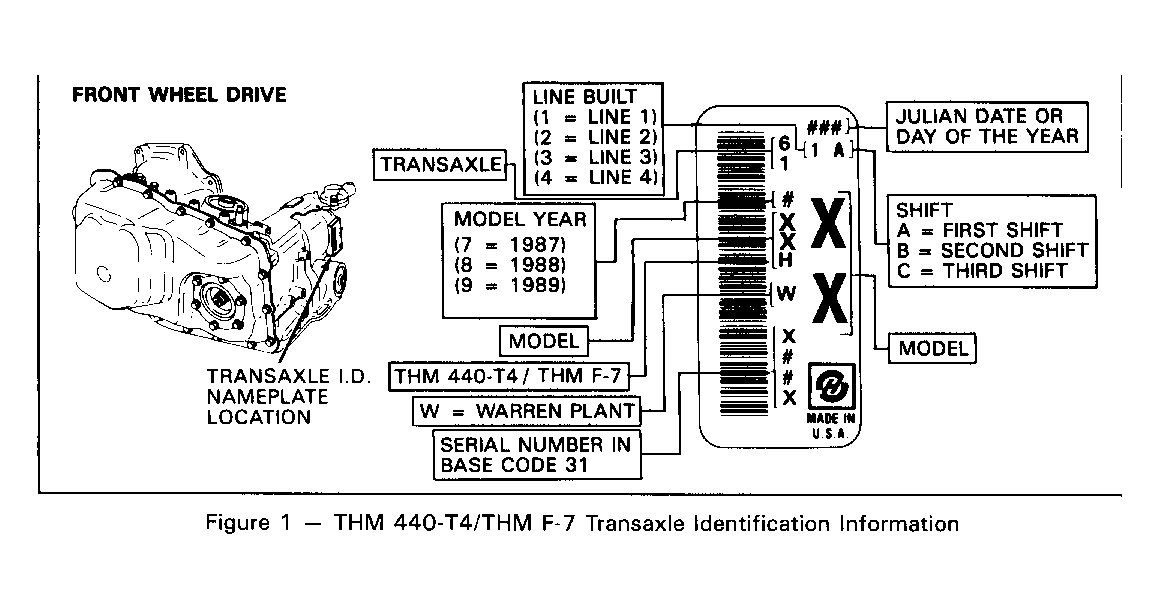

Fig 1: Graphic

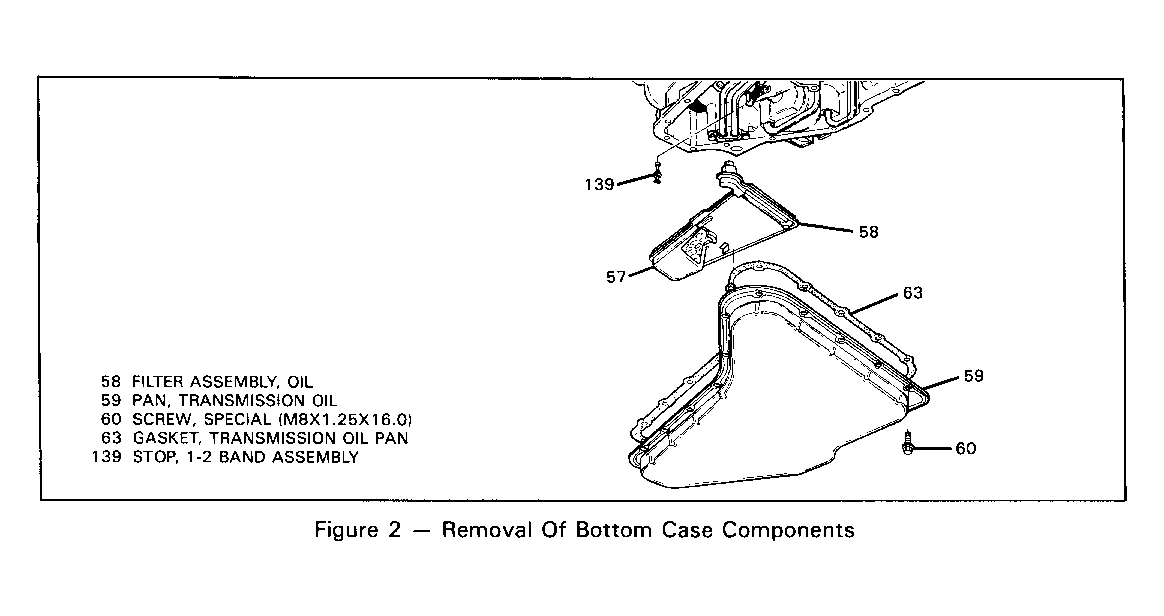

Fig 2: Graphic

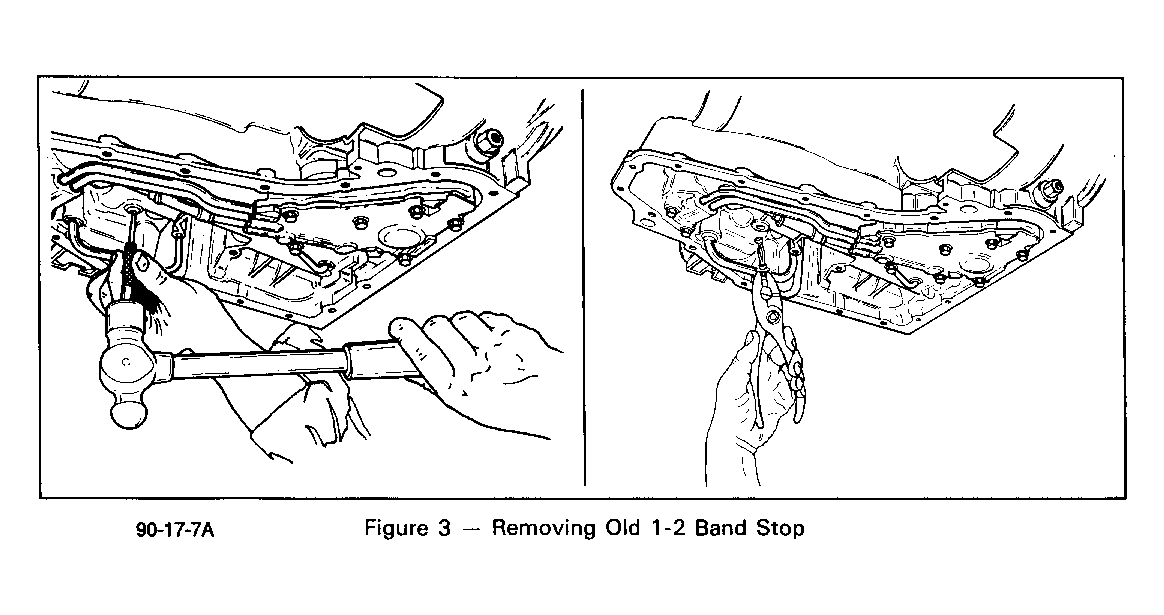

Fig 3: Graphic

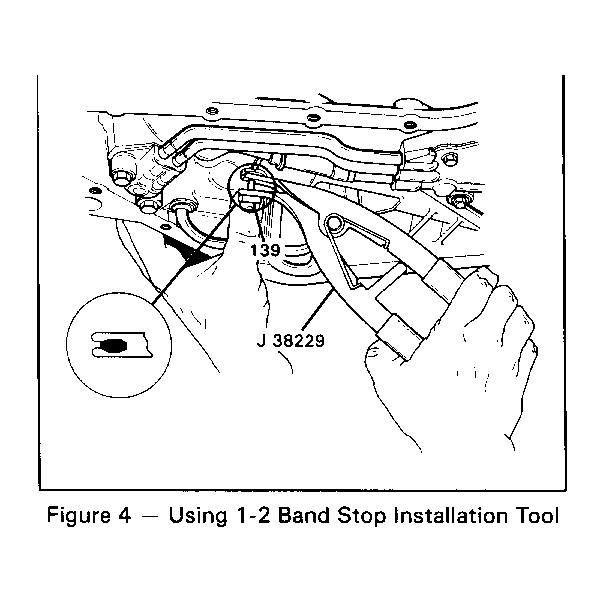

Fig 4: Graphic

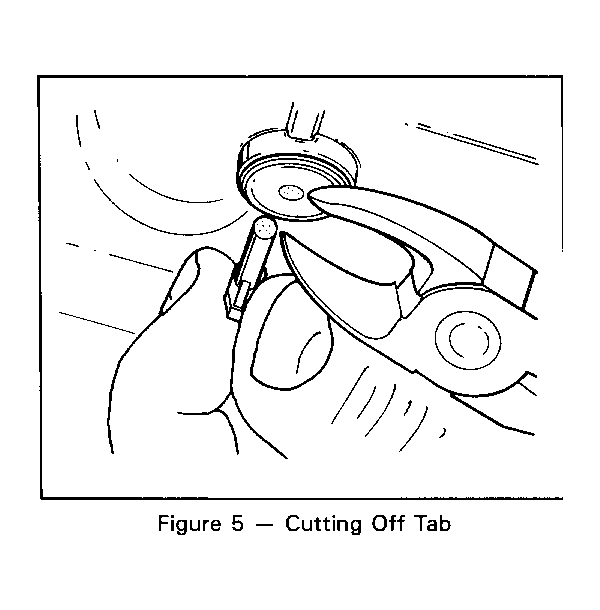

Fig 5: Graphic

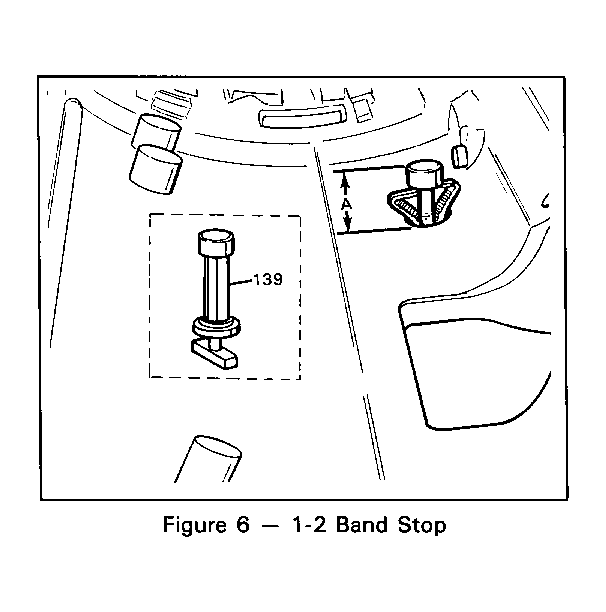

Fig 6: Graphic

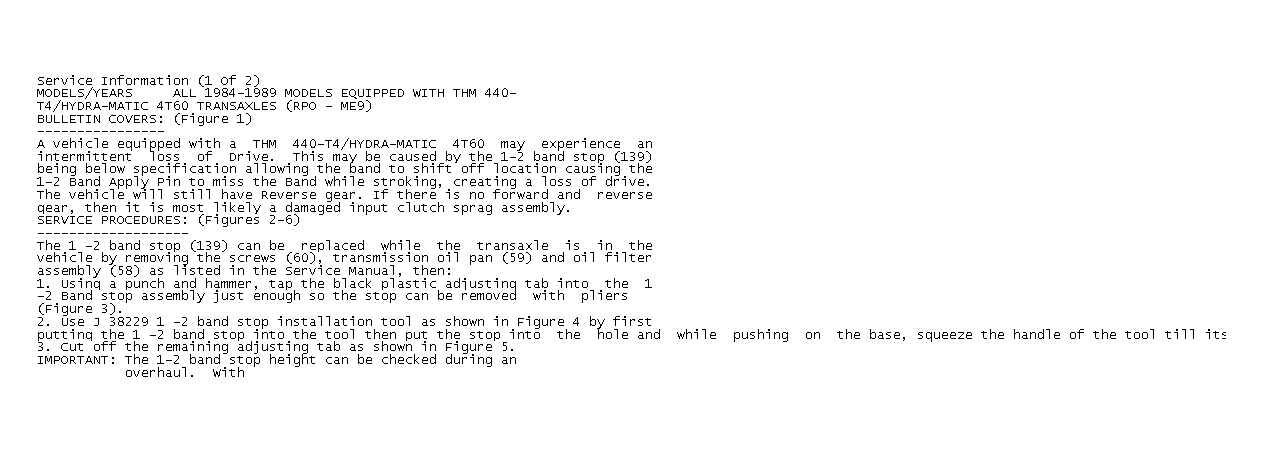

Fig 7: Service Information (1 Of 2)

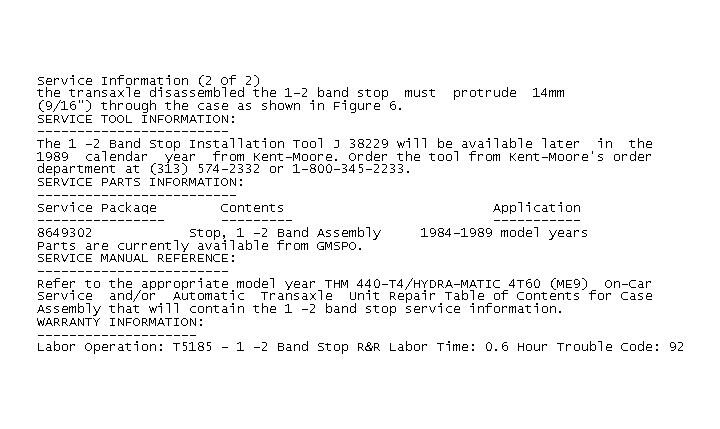

Fig 8: Service Information (2 Of 2)
