EXPERTEC TSB (89-T-47)

Publication date: 1989-01-30
Reference number: 89-T-47

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 89-T-47, Date of Issue: 01/30/89

AXLE SEAL PROTECTOR TO PREVENT - SEAL DAMAGE DURING INSTALL

01/30/1989

Oldsmobile 89-T-47

BULLETIN ILLUSTRATION LIST

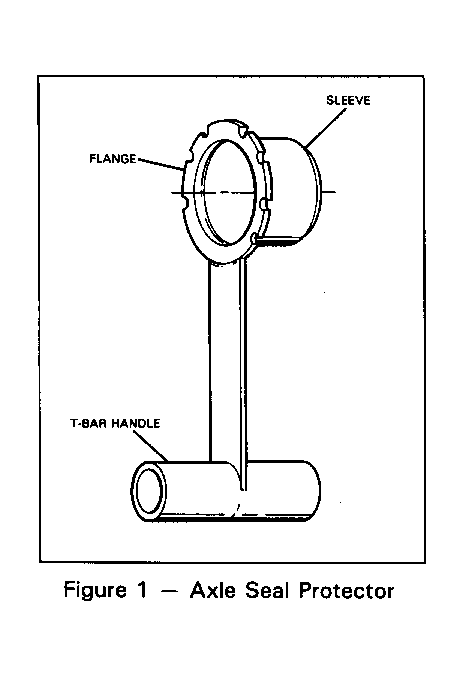

Fig 1: Graphic

GE00W005575

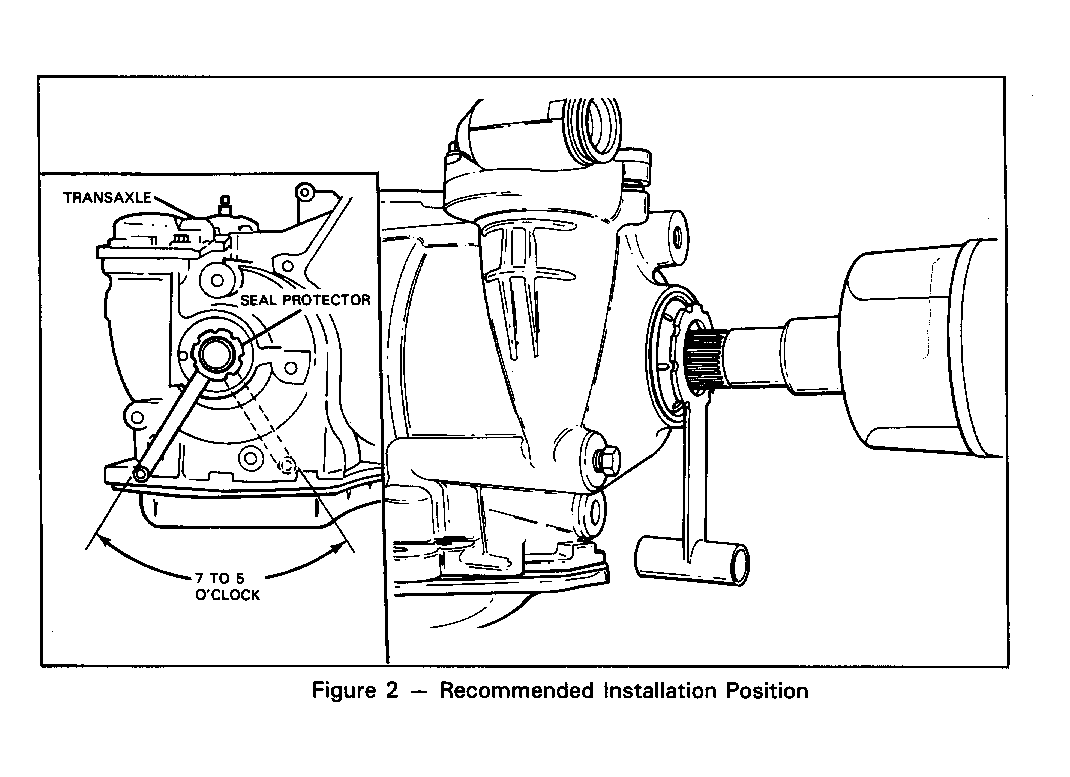

Fig 2: Graphic

GE01W005575

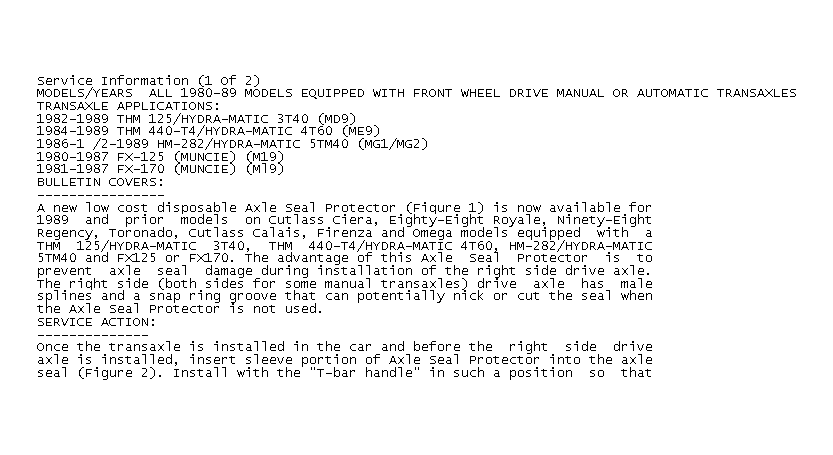

Fig 3: Service Information (1 Of 2)

GB0031228

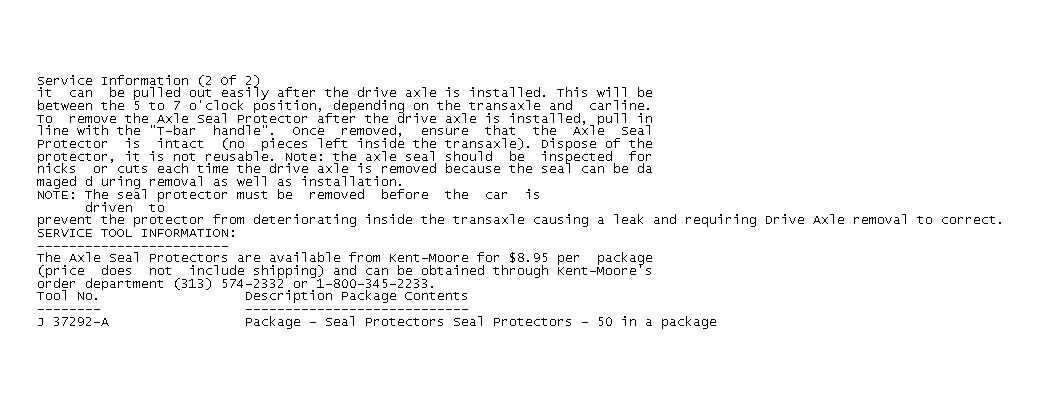

Fig 4: Service Information (2 Of 2)

GB0031229
