EXPERTEC TSB (88-T-48)

Publication date: 1988-03-15
Reference number: 88-T-48

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 88-T-48, Date of Issue: 03/15/88

TCC ENGAGES IN 2ND - CHECK TCC SCREEN SEAL P/N

03/15/1988

Oldsmobile 88-T-48

BULLETIN ILLUSTRATION LIST

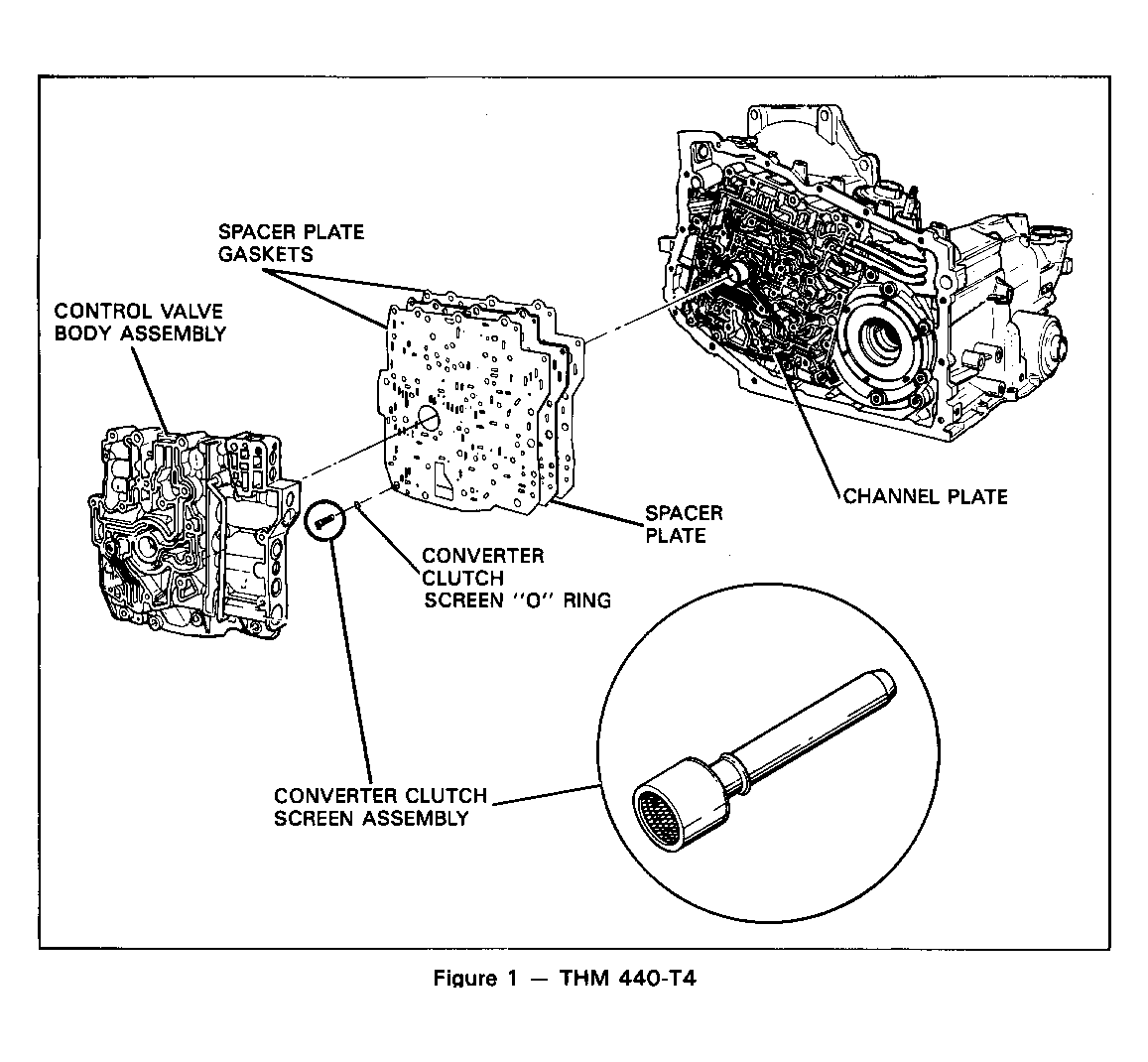

Fig 1: Graphic

GE00W004769

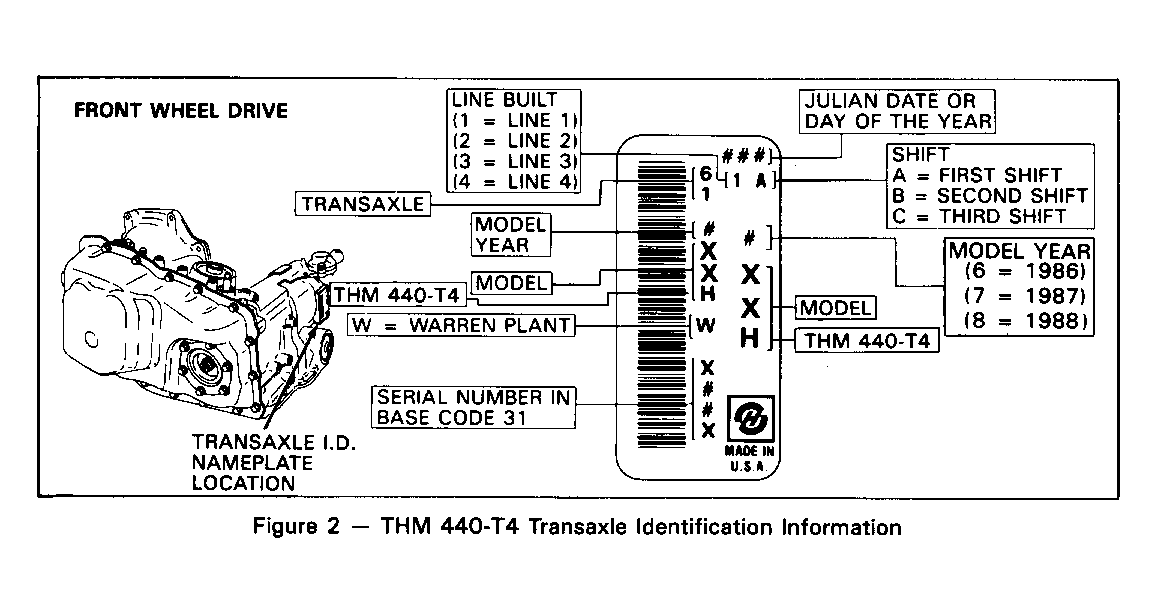

Fig 2: Graphic

GE01W004769

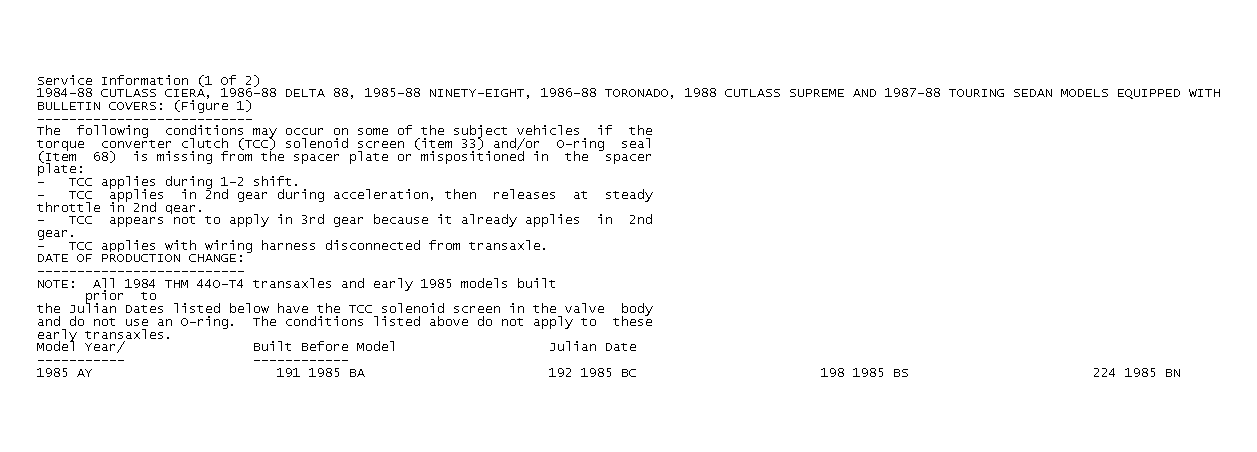

Fig 3: Service Information (1 Of 2)

GB0031060

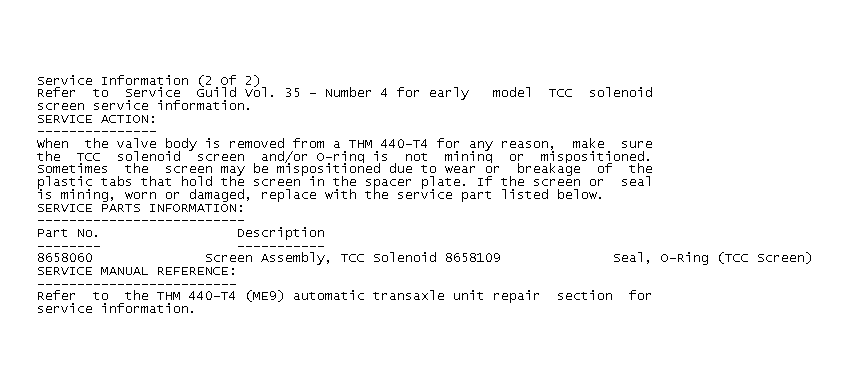

Fig 4: Service Information (2 Of 2)

GB0031061
