EXPERTEC TSB (87-T-41)

Publication date: 1987-08-10
Reference number: 87-T-41

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 87-T-41, Date of Issue: 08/10/87

MODULATOR BUZZ NOISE - INSTALL ORIFICE CUP PLUG P/N

08/10/1987

Oldsmobile 87-T-41

BULLETIN ILLUSTRATION LIST

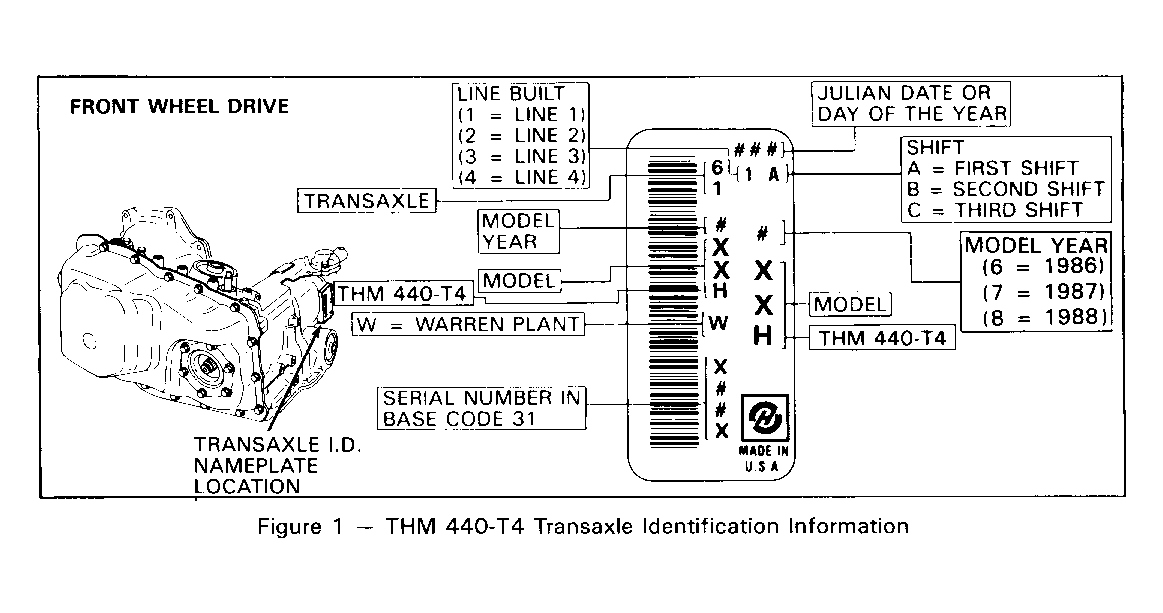

Fig 1: Graphic

GE00W004095

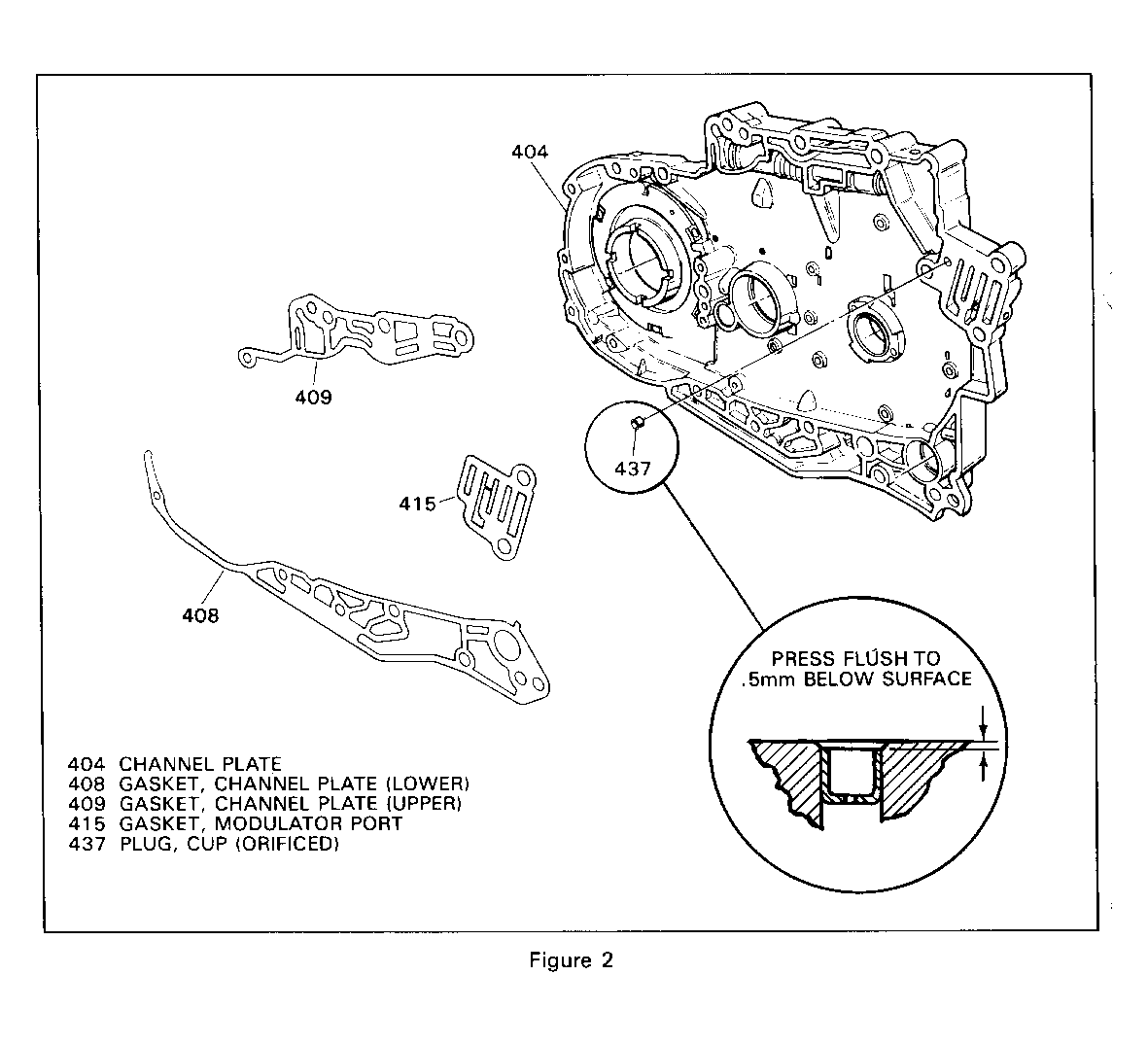

Fig 2: Graphic

GE01W004095

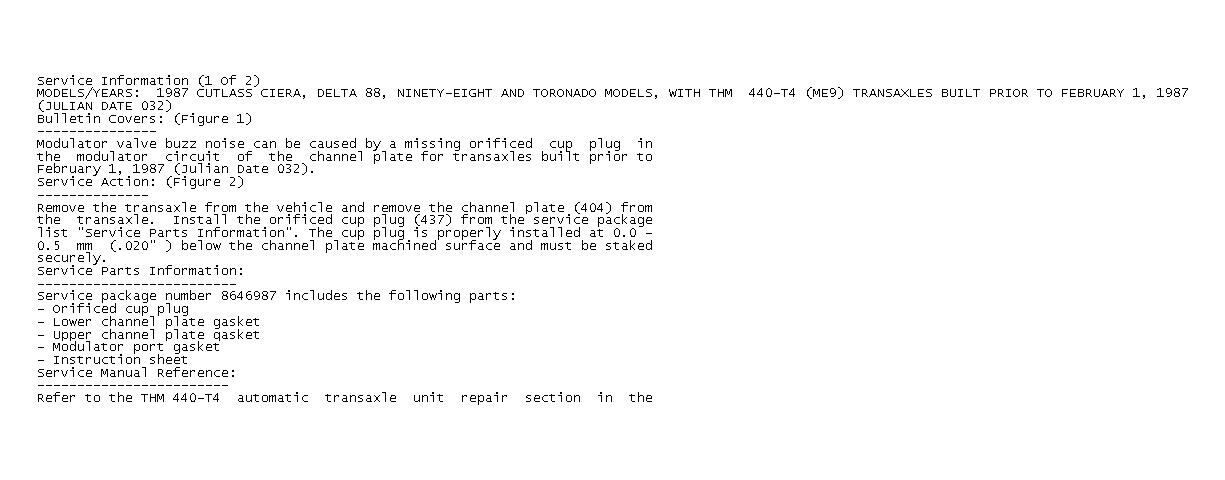

Fig 3: Service Information (1 Of 2)

GB0030895

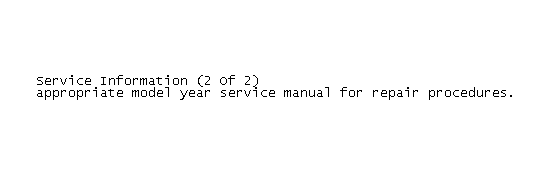

Fig 4: Service Information (2 Of 2)

GB0030896
