Climate Control Diagnostic Charts

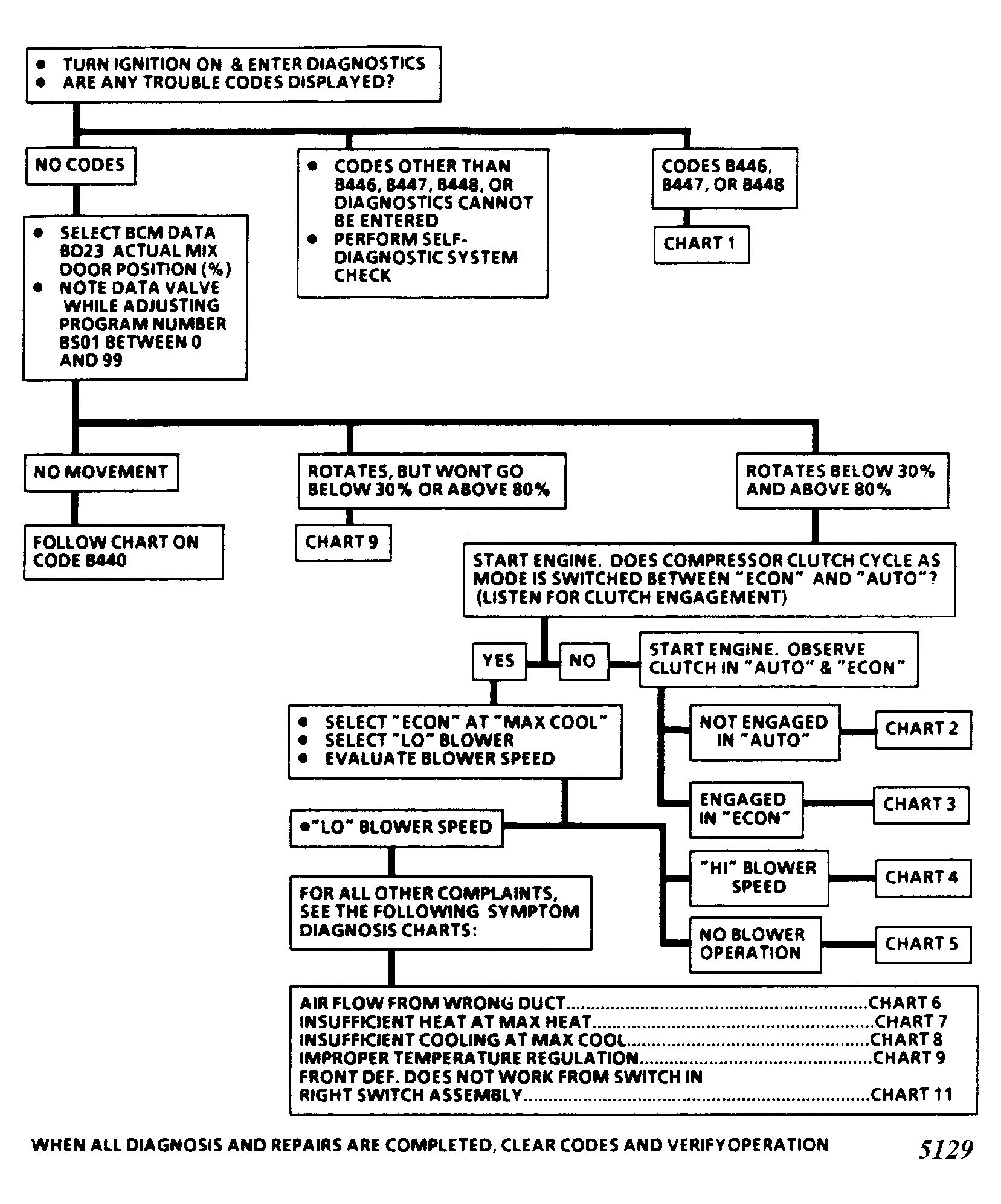

Fig 1: Climate Control System Check (Riviera)

G5129

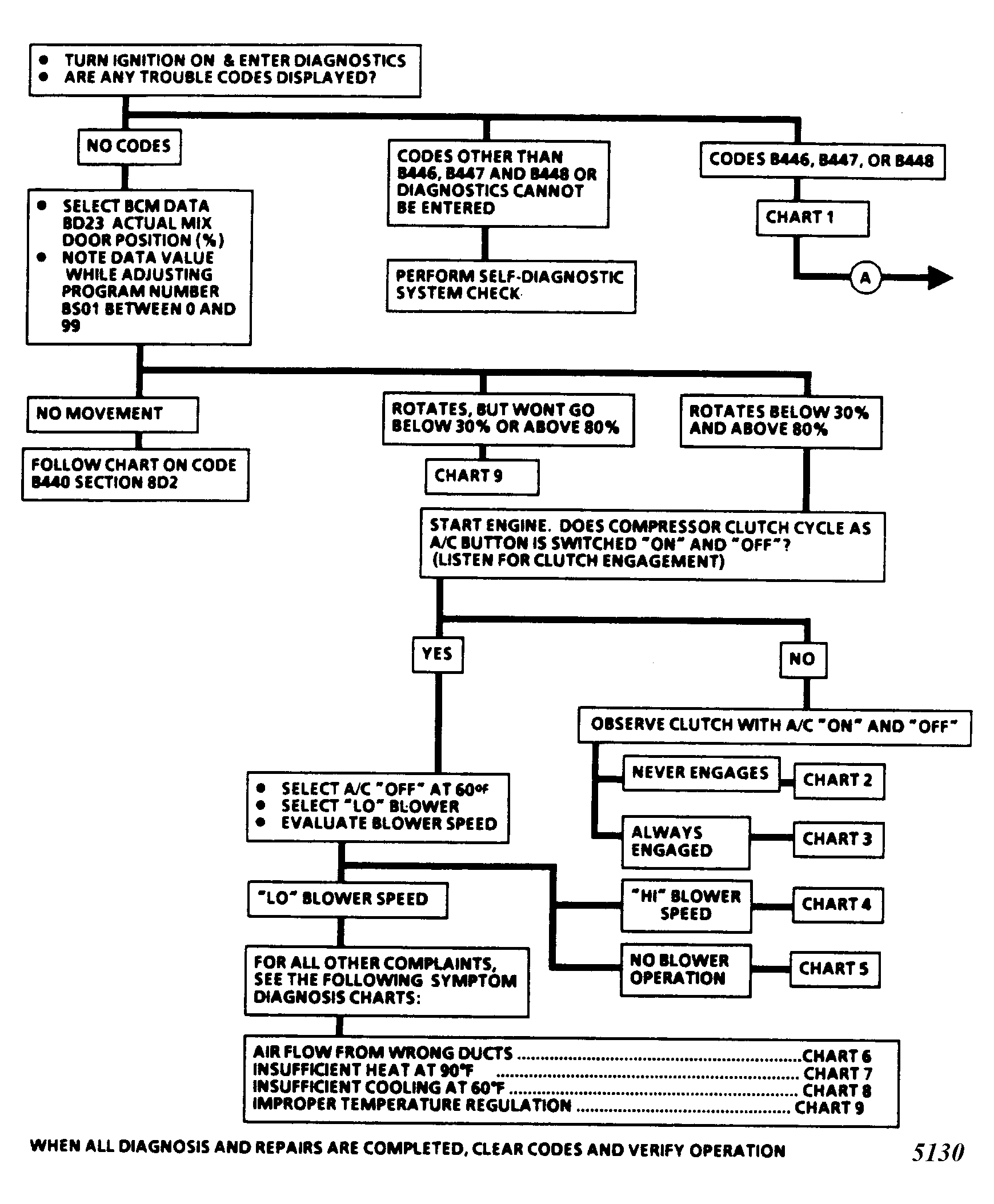

Fig 2: Climate Control System Check (Toronado)

G5130
