Note On Intermittents:

If an intermittent Code B409 is being set, manipulate circuit No. 25. When BCM input BI51 change-of-state indicator displays an "X", the failure has been induced.

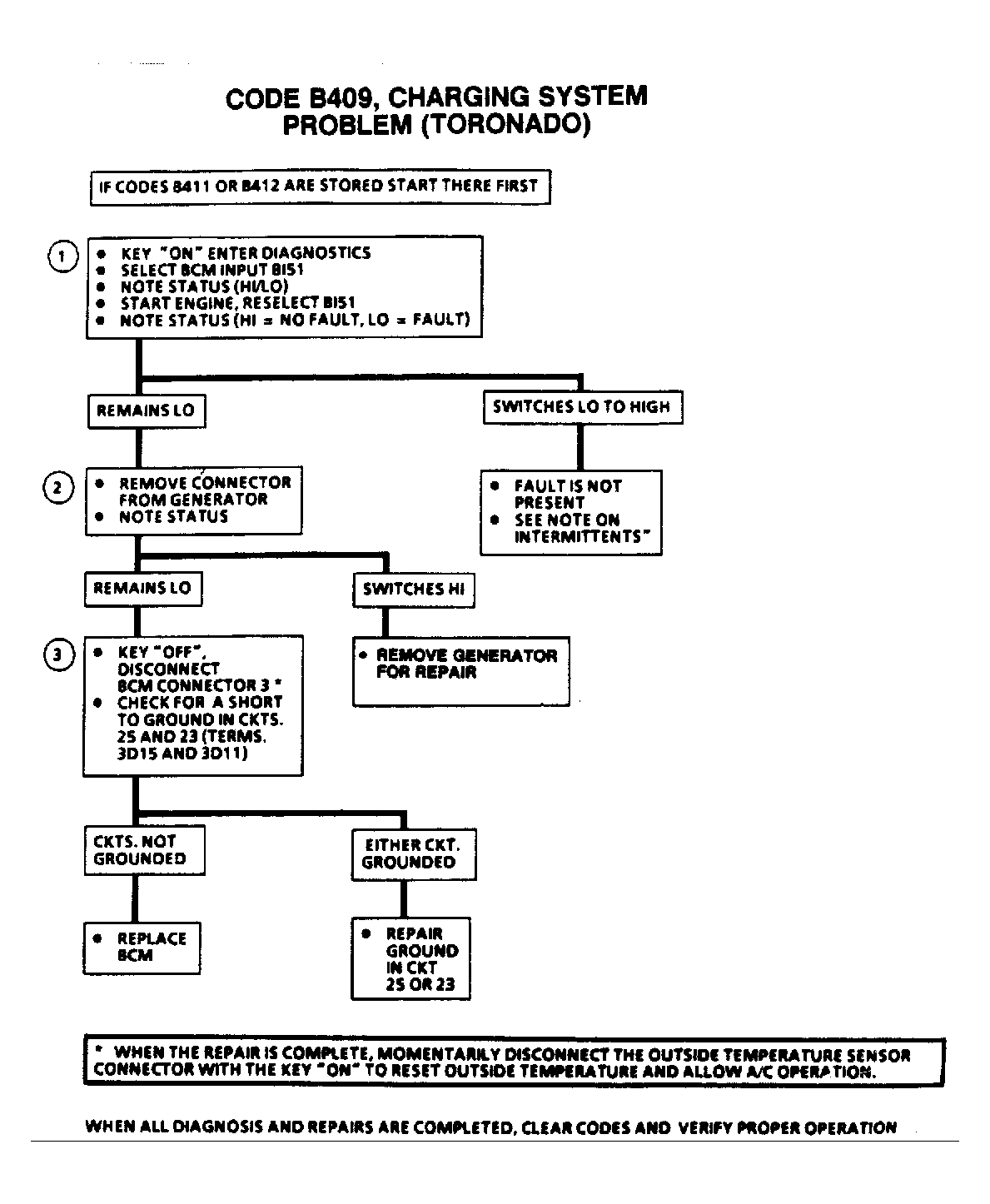

Fig 1: Code B409, Charging System Problem (Toronado)

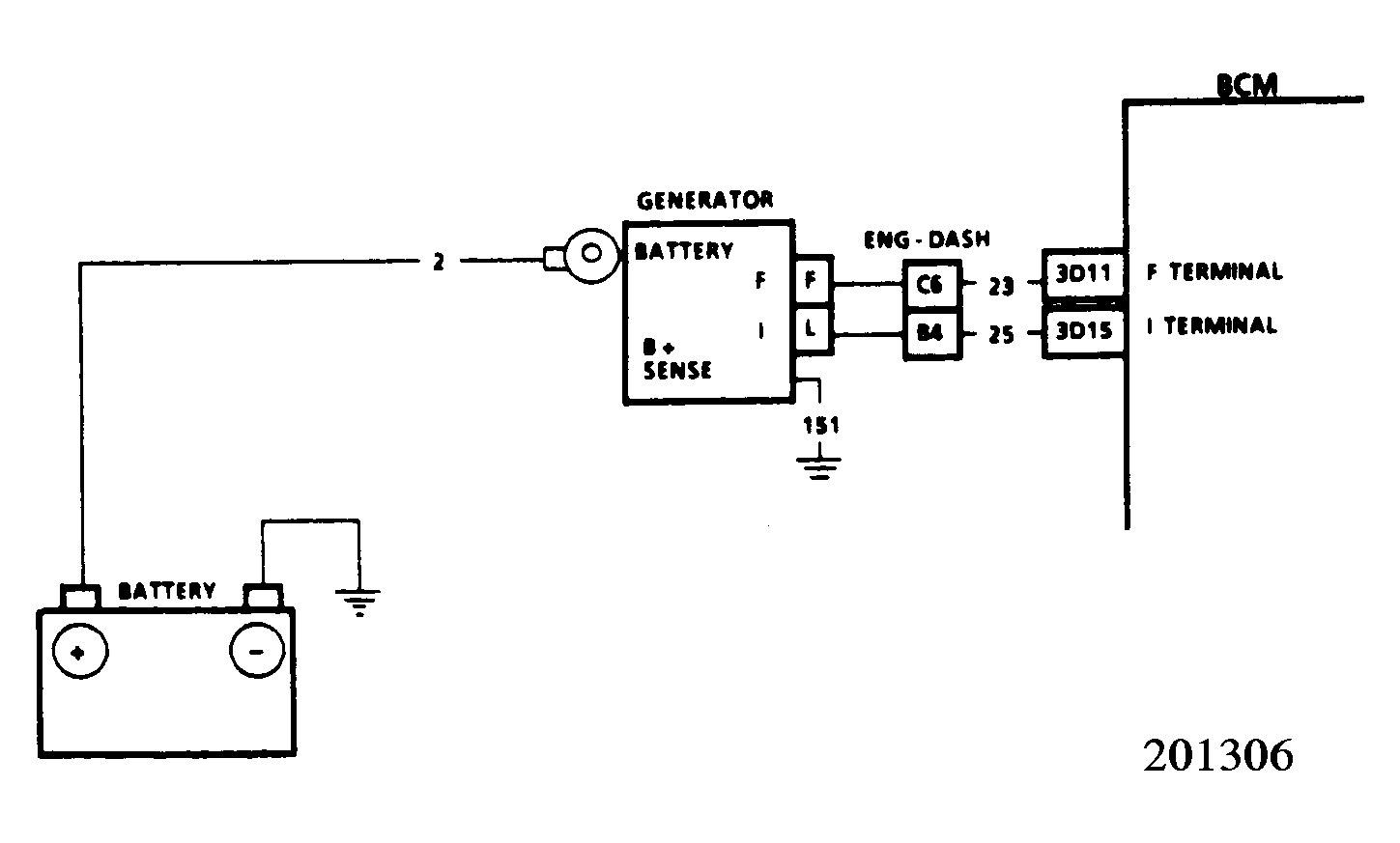

Fig 2: Code B409, Schematic
