Wiring Diagrams

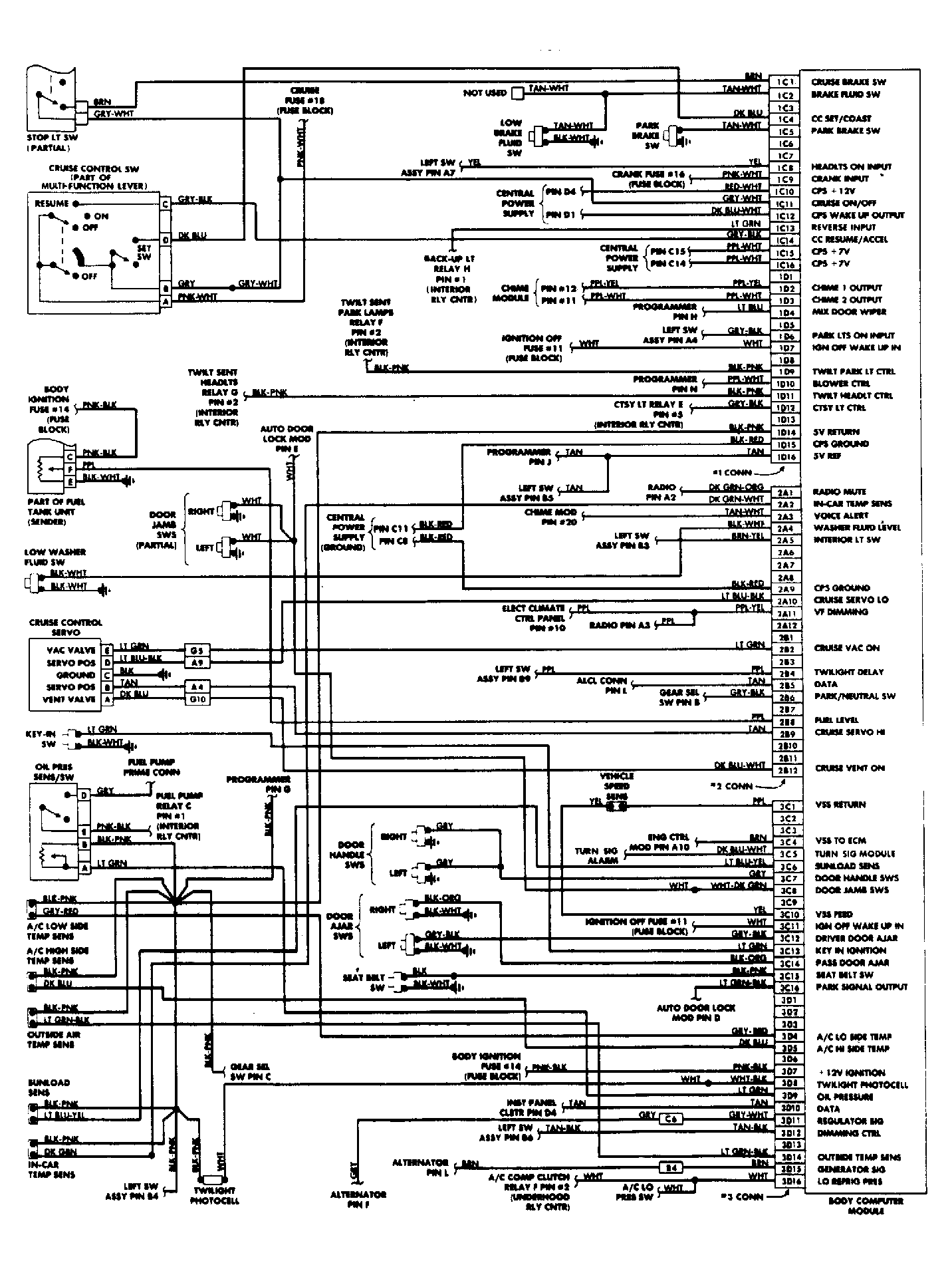

Fig 1: Toronado BCM Wiring Diagram

G6080

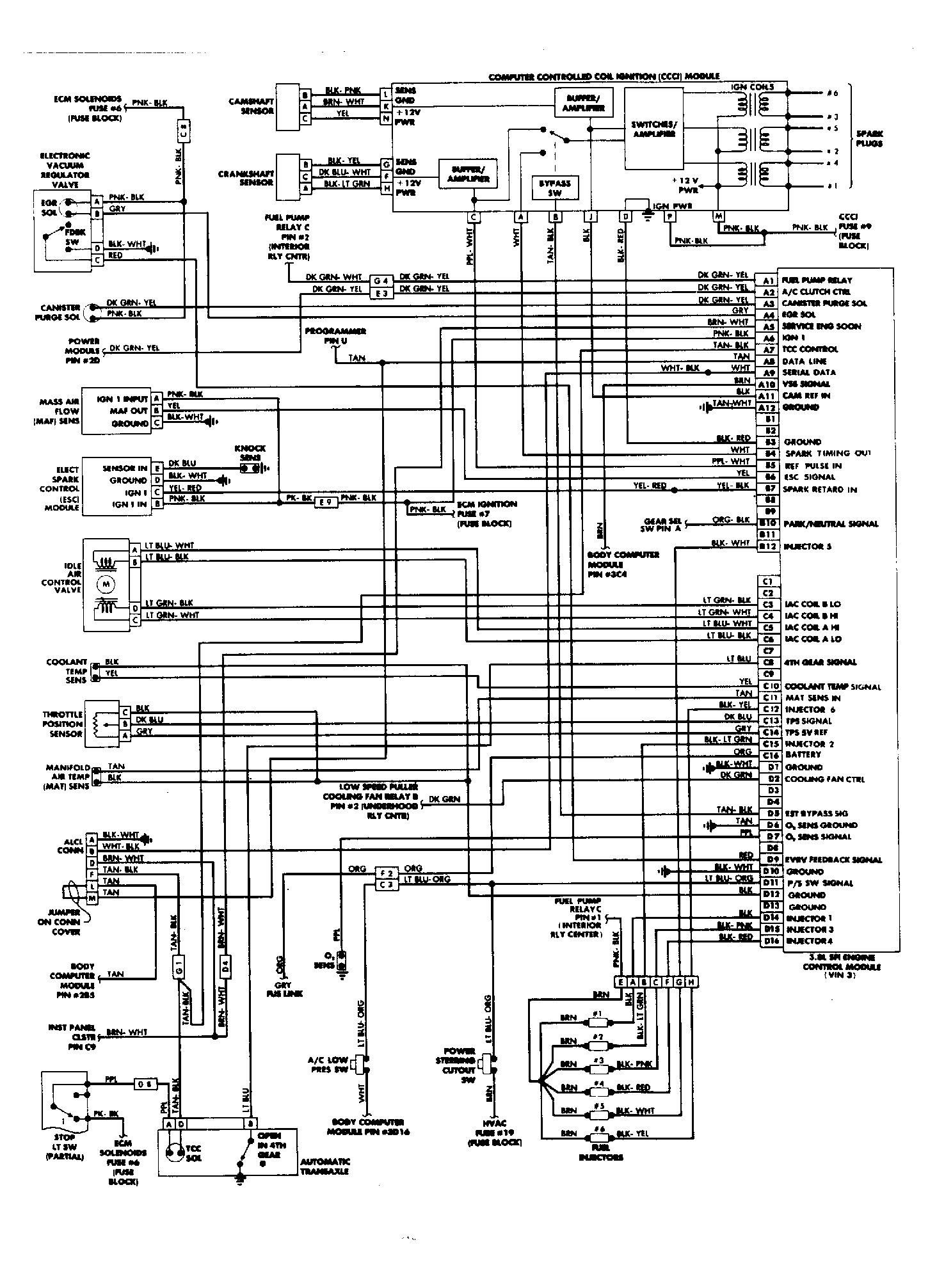

Fig 2: Toronado ECM Wiring Diagram

G6081

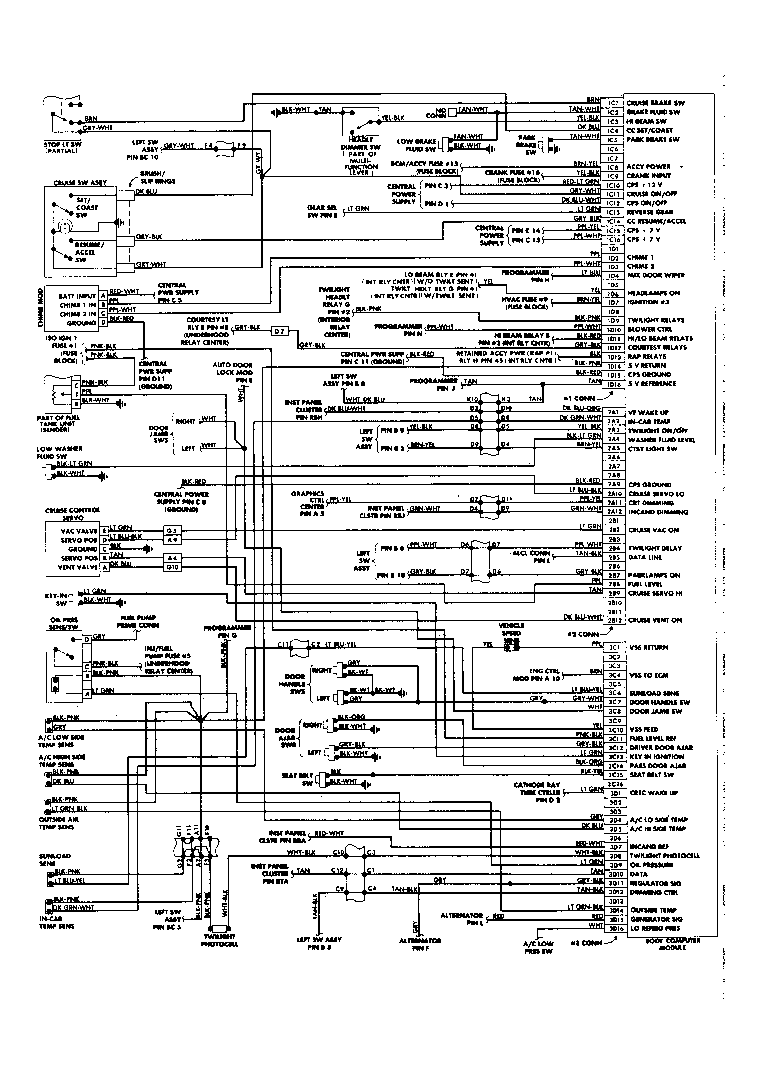

Fig 3: Riviera BCM Wiring Diagram

G6082

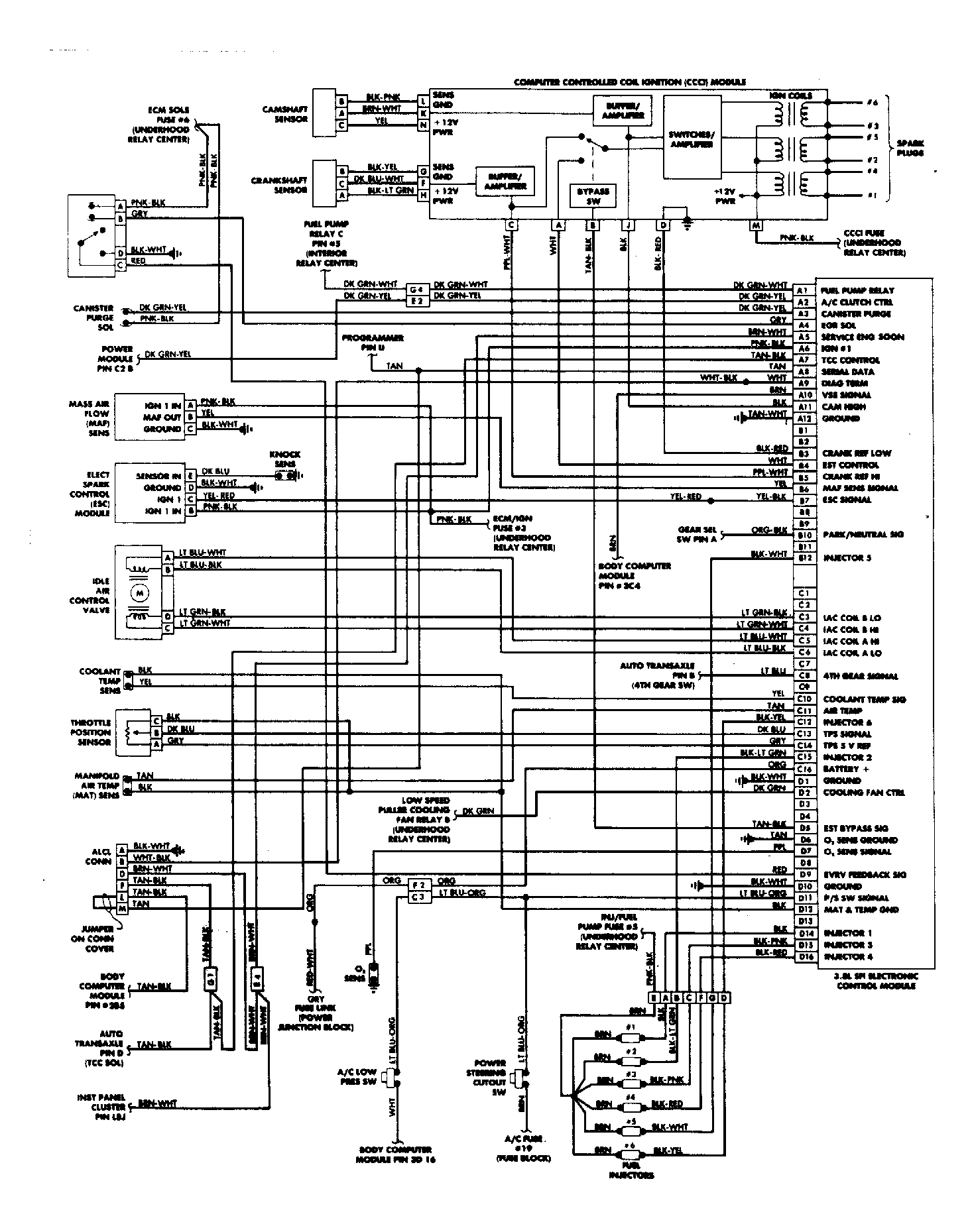

Fig 4: Riviera ECM Wiring Diagram

G6083

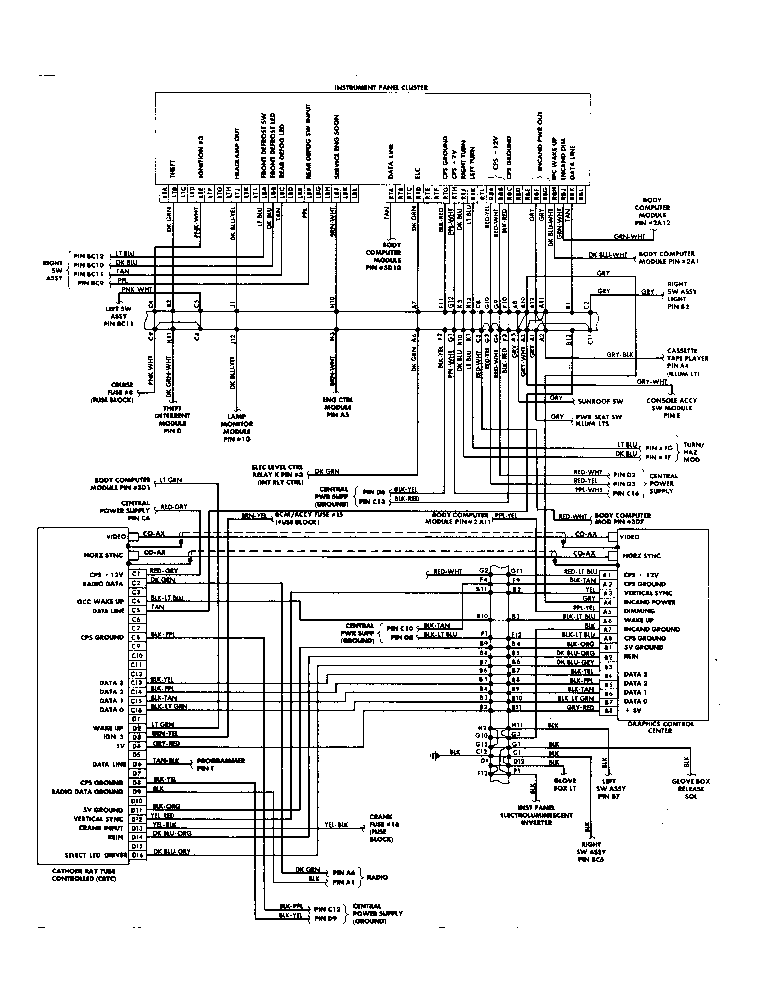

Fig 5: Riviera CRT & IP Wiring Diagram

G6084
