Note On Intermittents:

If an intermittent Code B410 is being set, check circuits for opens, shorts or poor terminal contacts.

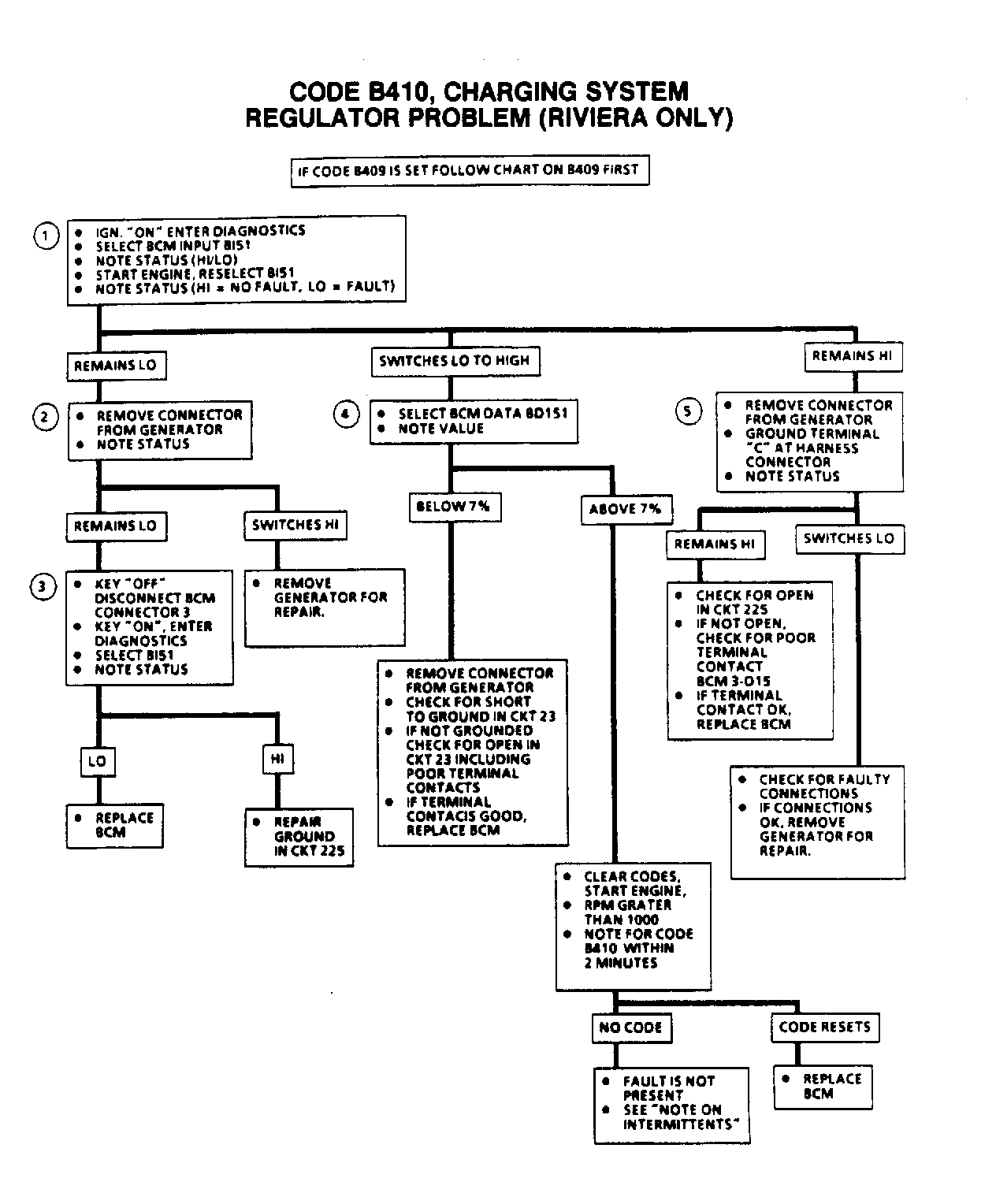

Fig 1: Code B410, Charging System Regulator Problem (Riviera Only)

Fig 2: Code B410, Schematic
