Float Level (Dry Setting)

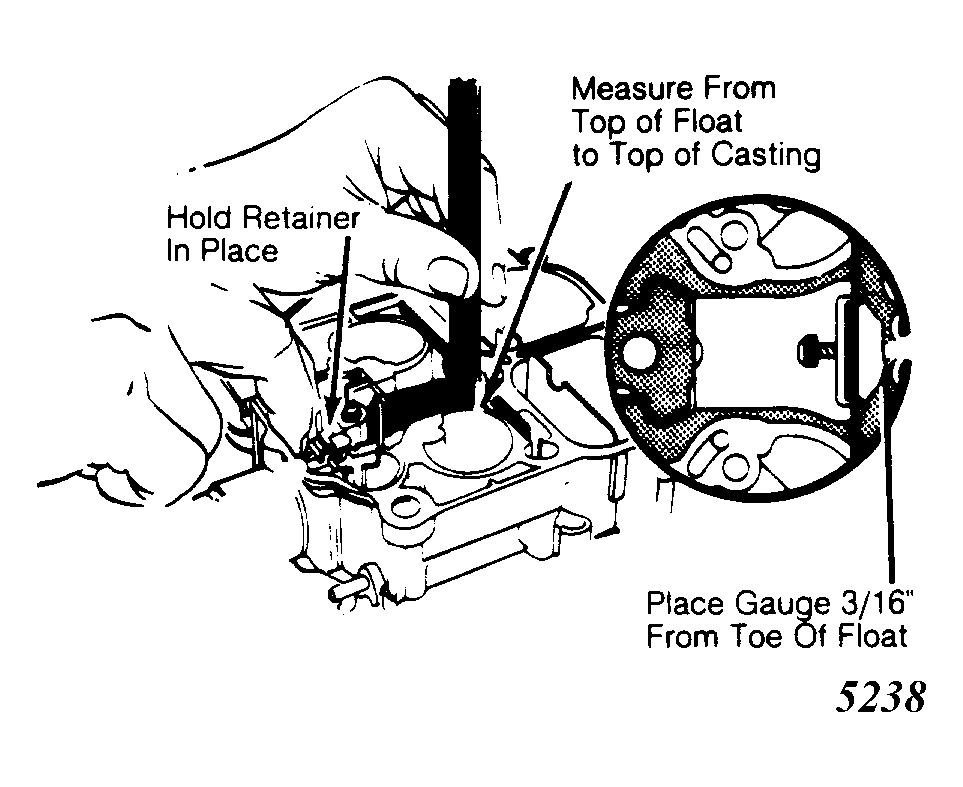

Fig 1: Dry Float Level Adjustment

Remove air horn, feedback solenoid plunger, and air horn gasket. Remove plastic float bowl insert. Hold float bowl retainer firmly in place.
Push float down lightly against needle. Measure float height from top of casting to top of float at a point 3/16" from end of float. Float level should be within 1/16" of specifications.
If float level is too high, hold retainer in place and push down on center of float pontoon to obtain correct setting.
If float level is too low, remove metering rods and feedback solenoid connector screw. Count and record for reassembly the number of turns needed to lightly bottom lean mixture screw.
Remove feedback solenoid assembly. Bend float upward to adjust. Recheck float level. Reassemble float bowl components. Lightly bottom lean mixture screw, then back out screw to number of turns previously recorded. Reinstall air horn.
