1986 Models

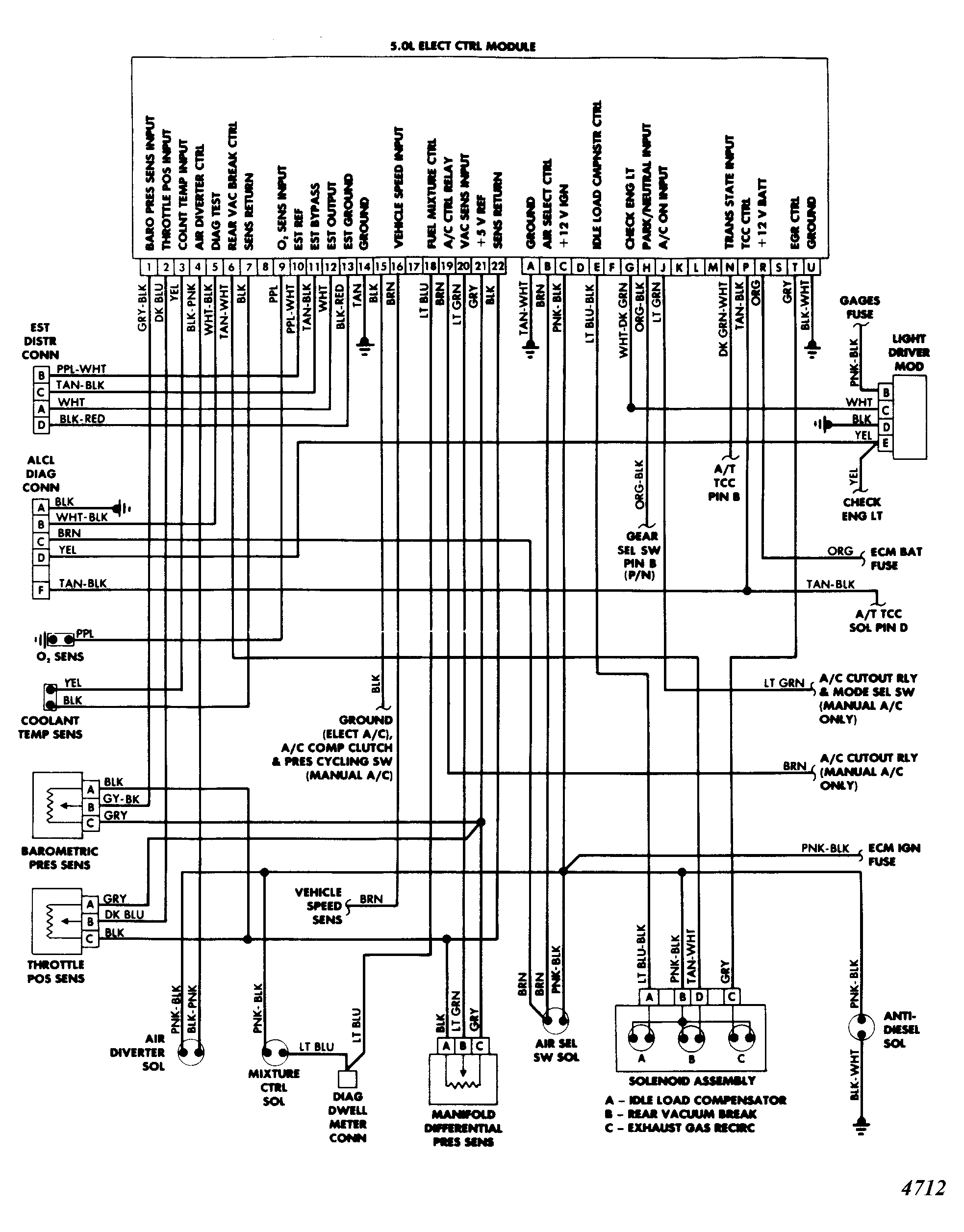

Fig 1: Full Function Wiring Diagram (1986 5.0L, VIN Y & 9)

G4712

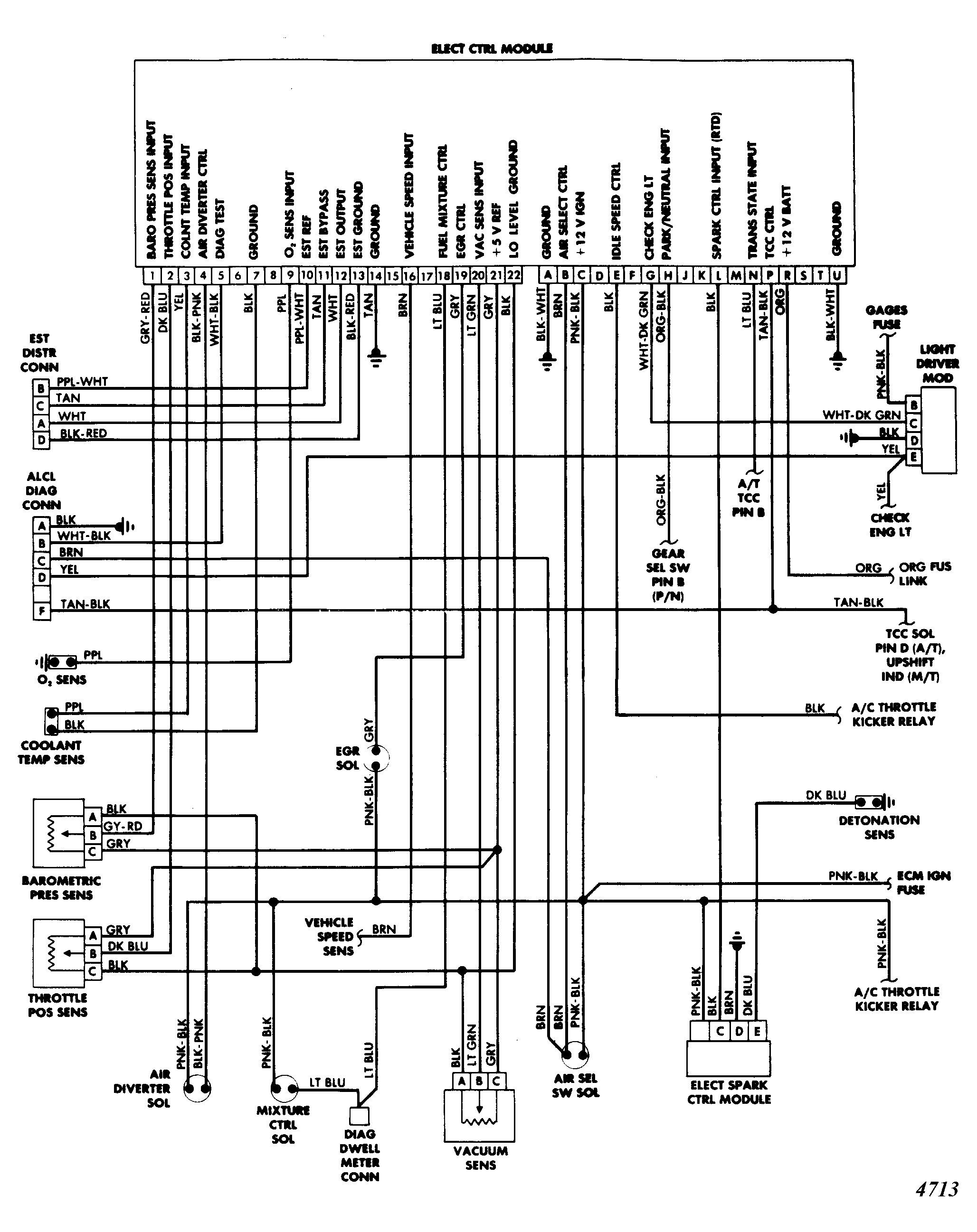

Fig 2: Full Function Wiring Diagram (1986 5.0L, VIN G & H)

G4713
