Component Locations (5.0L)

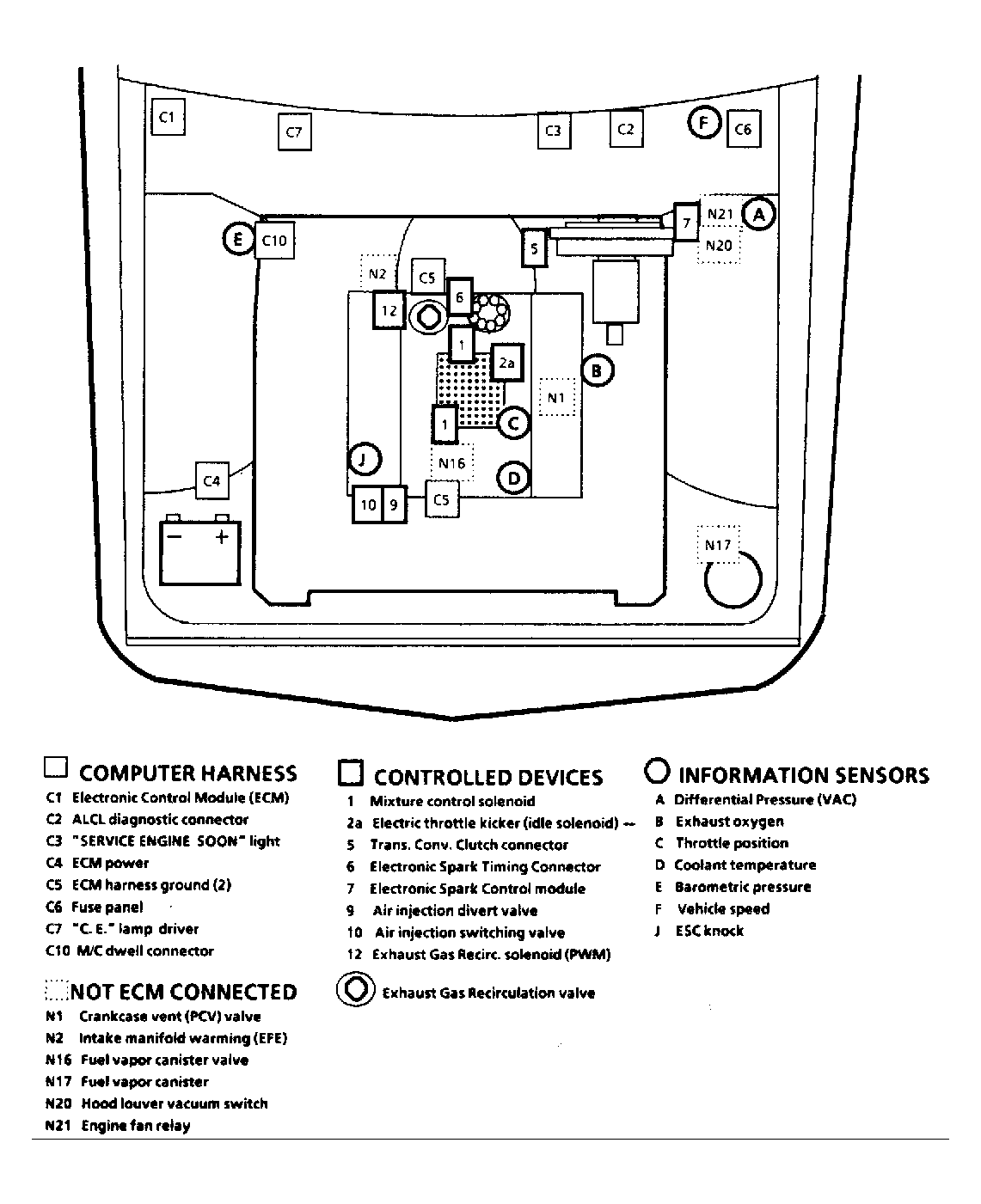

Fig 1: Buick (B & G Bodies), (VIN Y) Component Locations

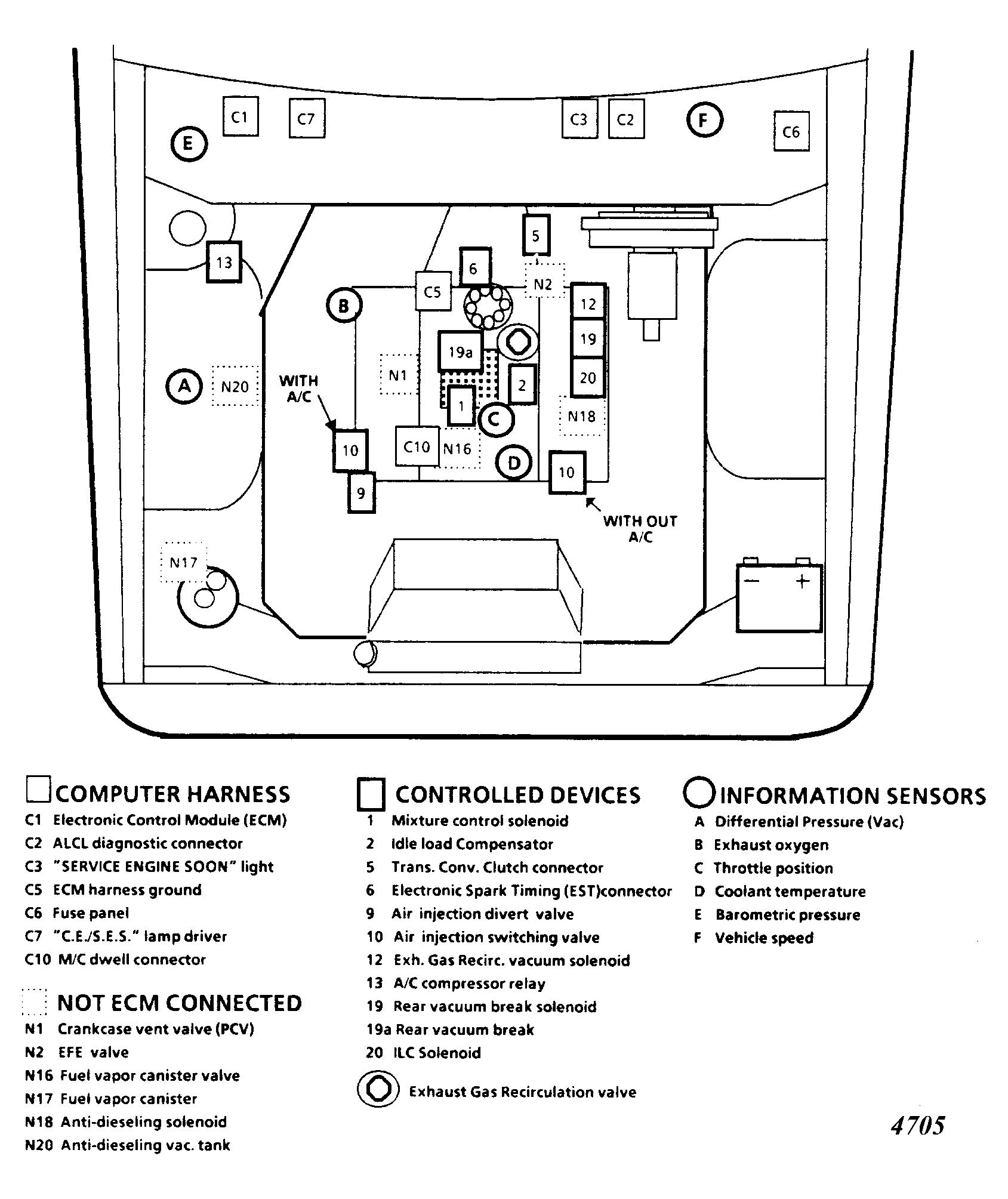

Fig 2: F Body, (VIN Y) Component Locations

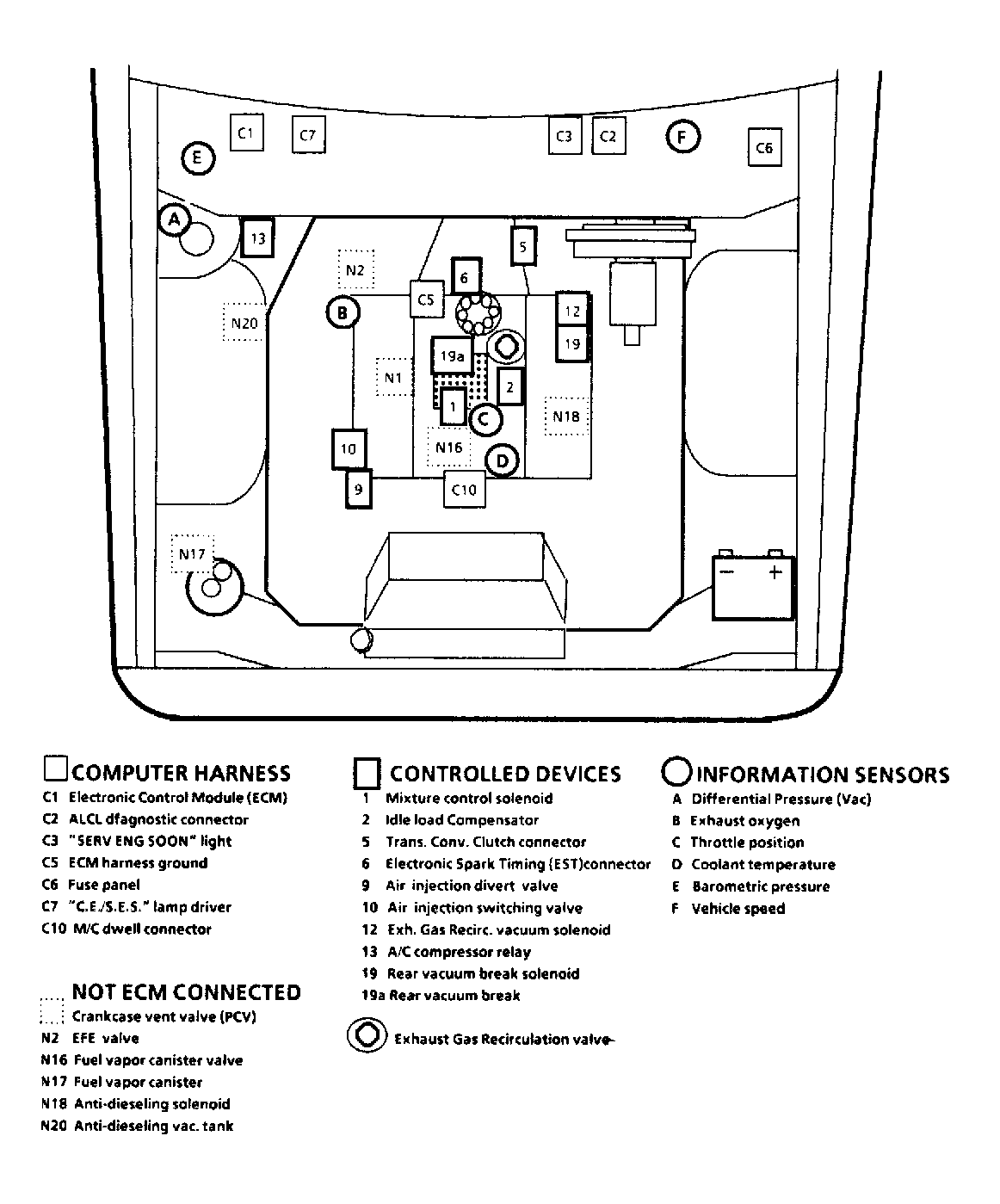

Fig 3: Oldsmobile (B & G Bodies), (VIN Y/9) Component Locations

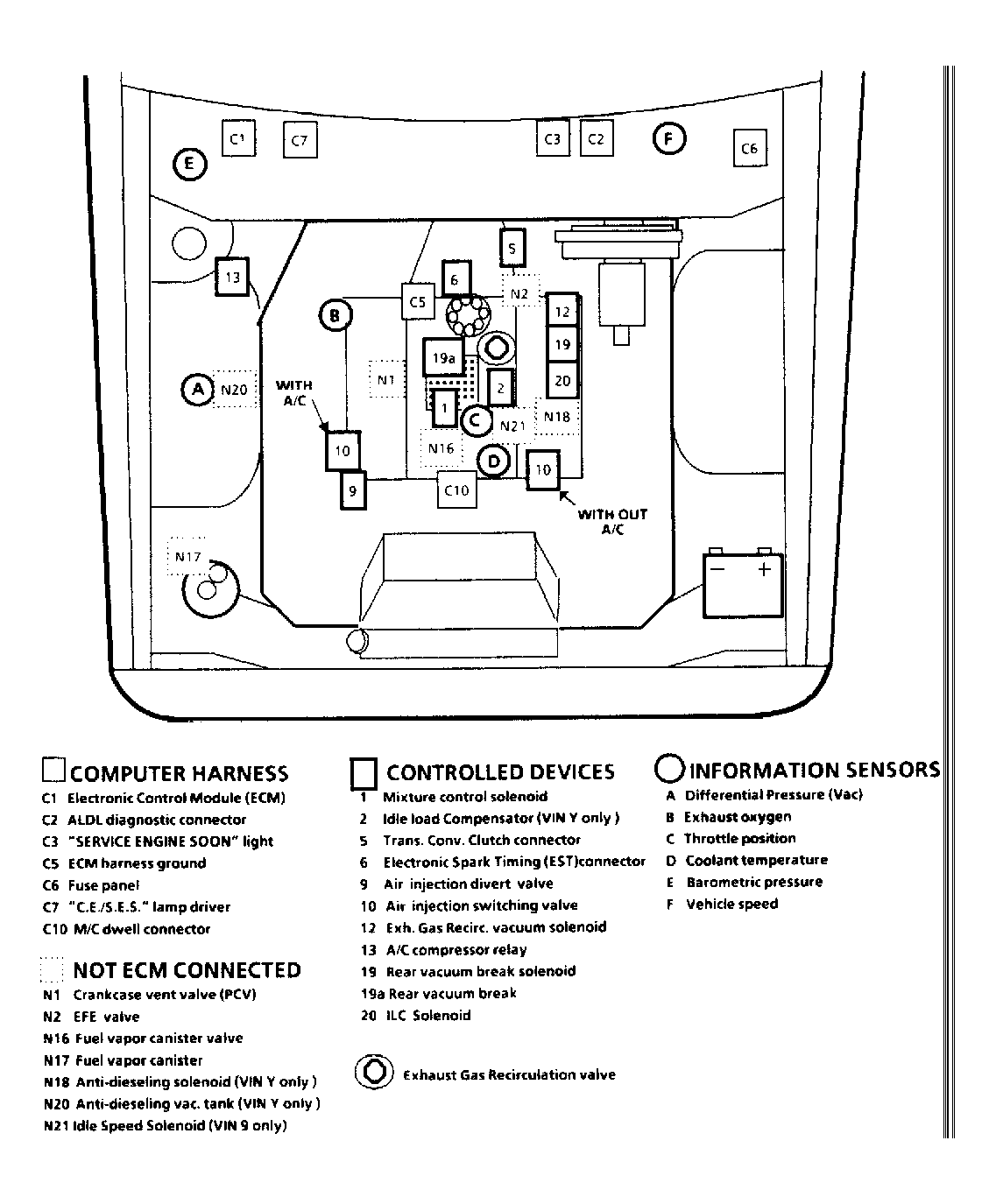

Fig 4: Pontiac & Chevrolet (B & G Bodies), (VIN H/G) Component Locations

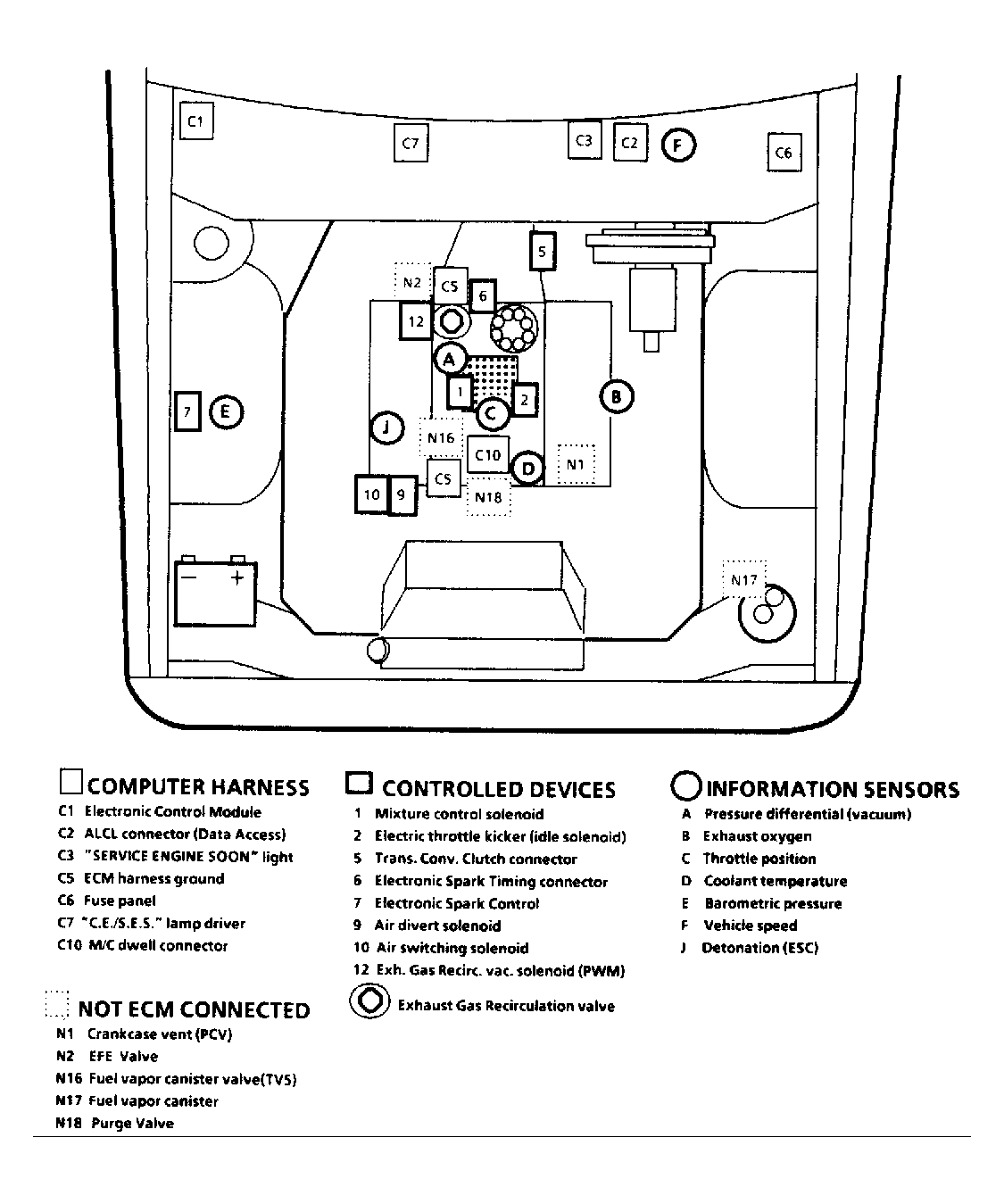

Fig 5: Pontiac & Chevrolet (B Body), (VIN Y) Component Locations
