Toronado Models

To enter the service mode, turn the ignition switch to the "ON" position. Touch the "OFF" and "WARM" buttons on the ECC control panel simultaneously, and hold until a segment check is displayed on the instrument panel and ECC control panel. See Fig 1 .

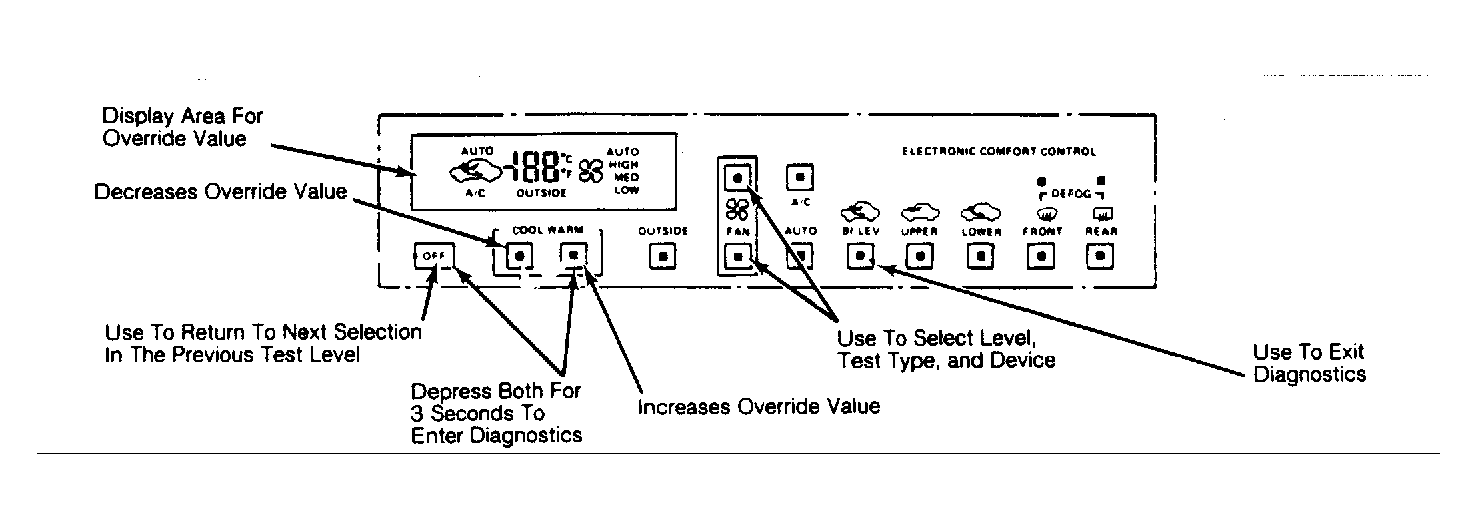

Fig 1: Toronado Electronic Climate Control (ECC) Panel This panel is used on Toronado models only.
G5007
