Wiring Diagrams

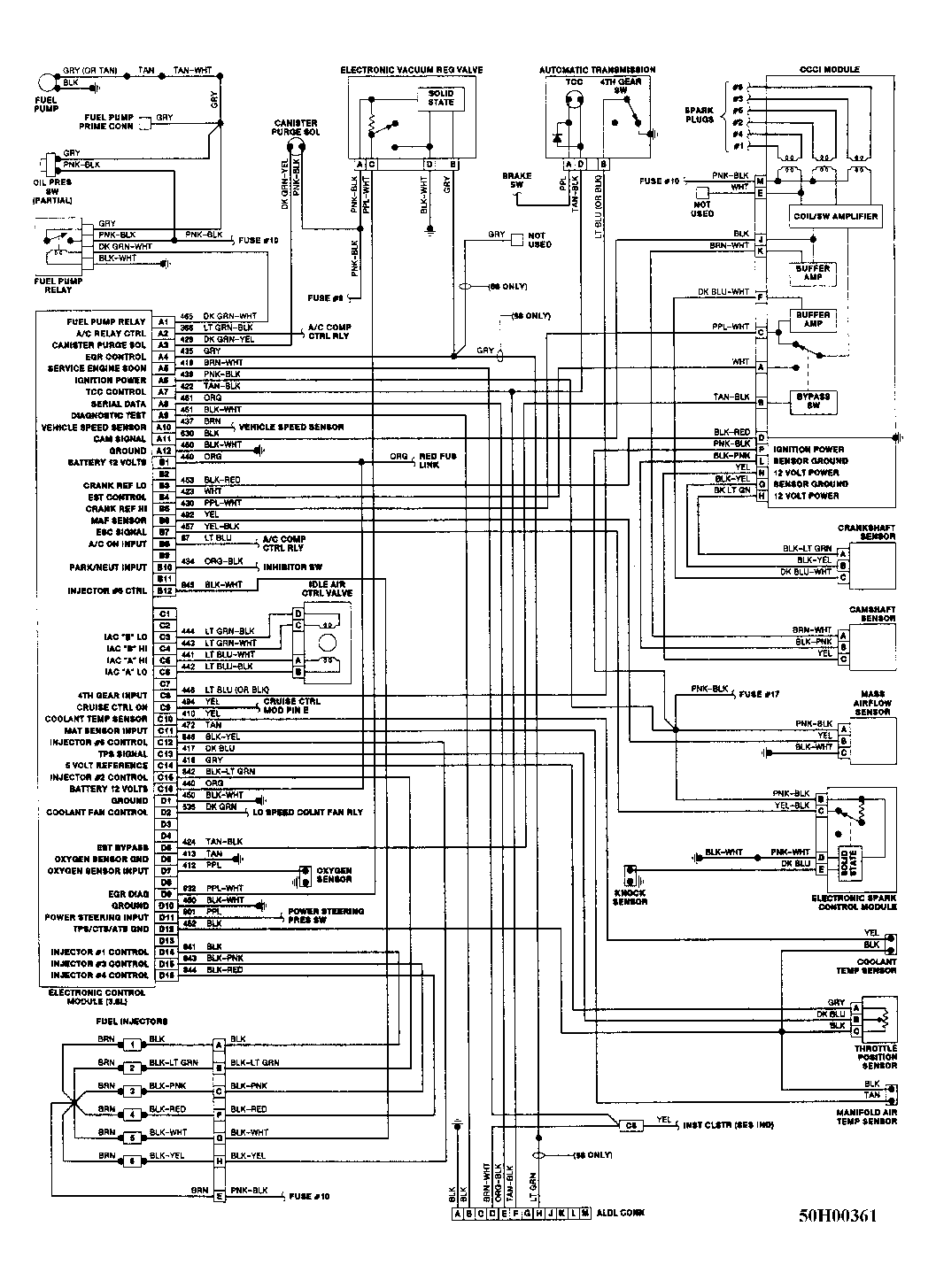

Fig 1: 3.8L PFI Wiring Diagram (Century)

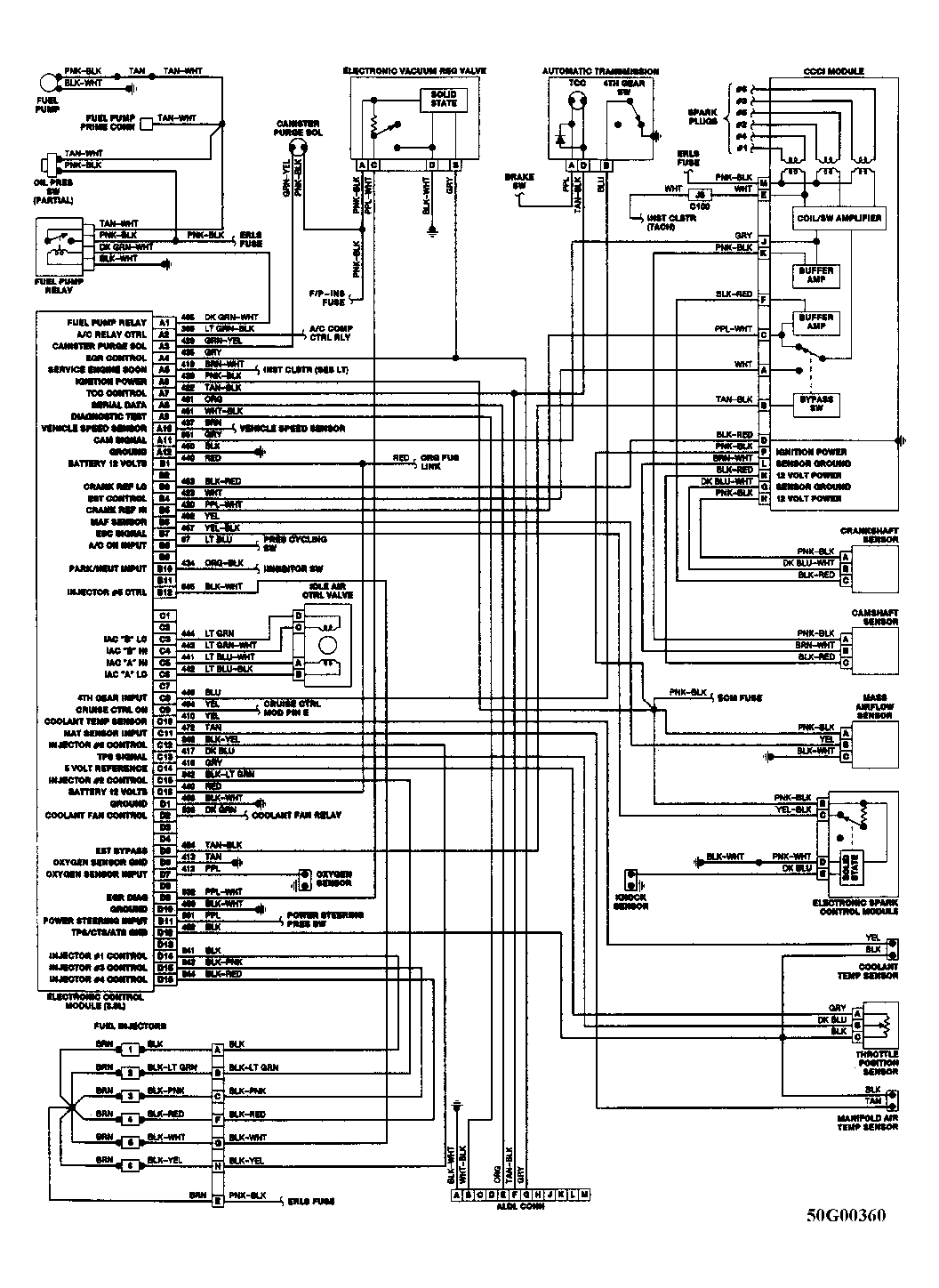

Fig 2: 3.8L PFI Wiring Diagram (Cutlass Ciera)

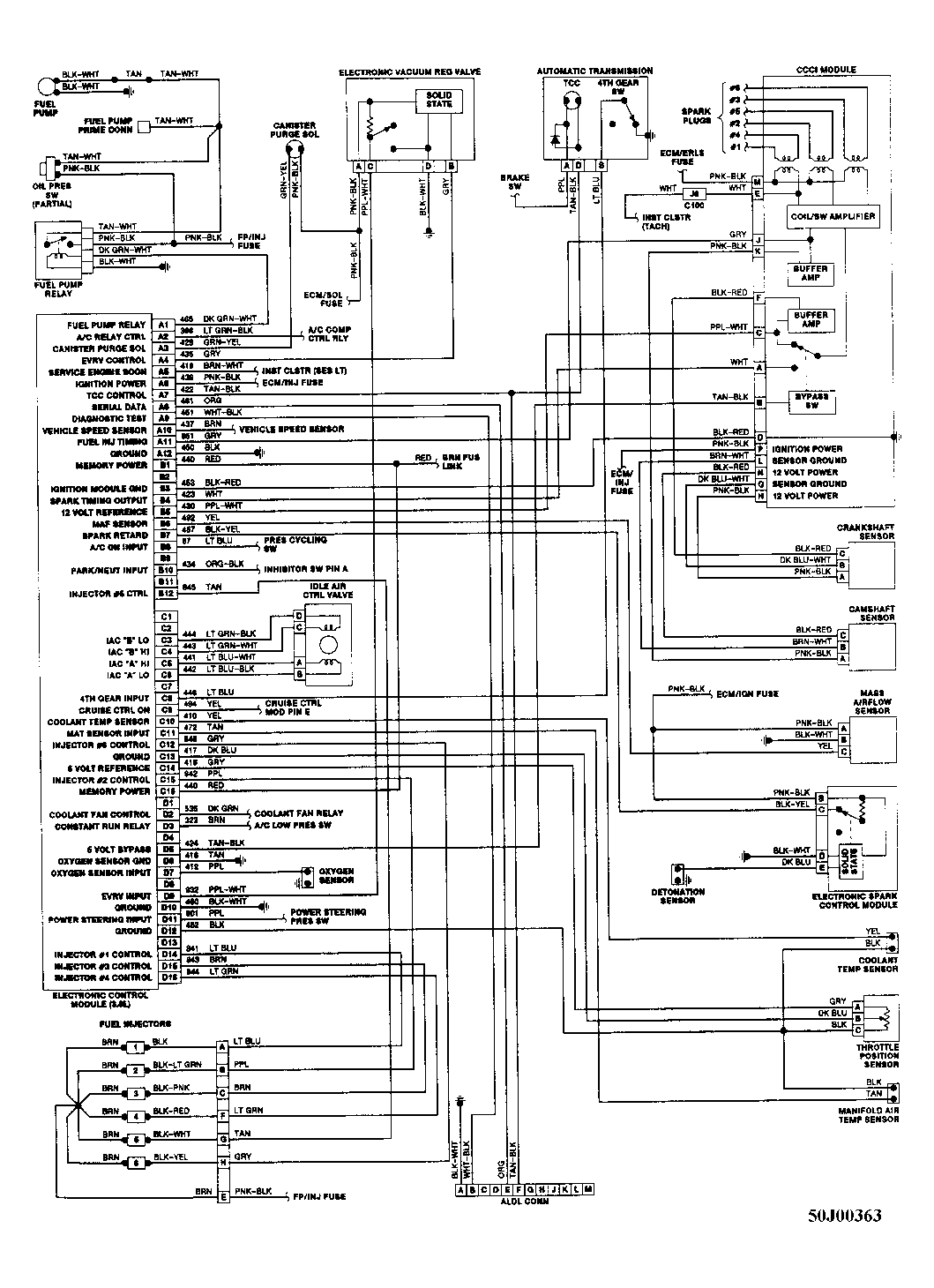

Fig 3: 3.8L PFI Wiring Diagram (Delta 88 & Ninety-Eight)

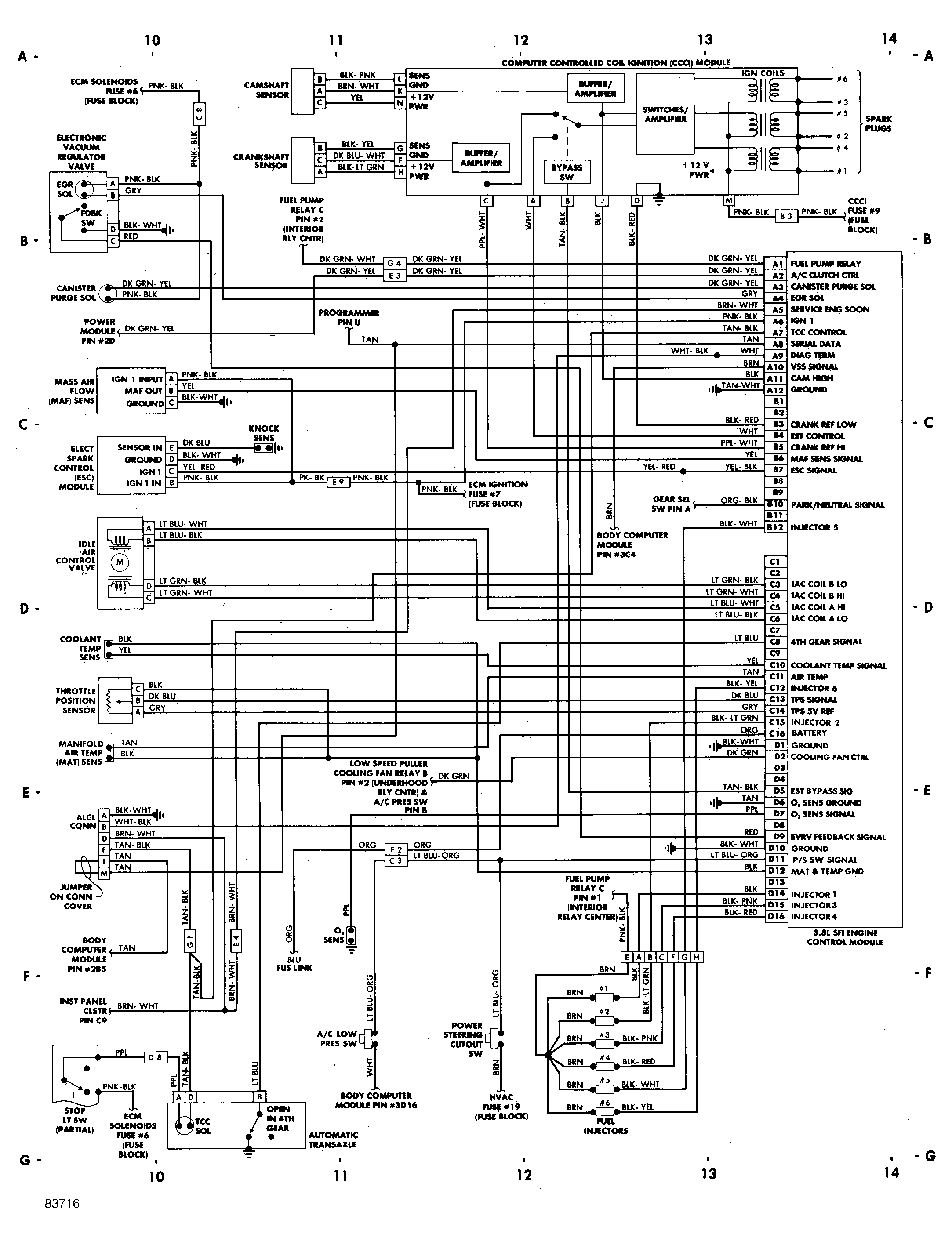

Fig 4: 3.8L PFI Wiring Diagram (Electra & LeSabre)

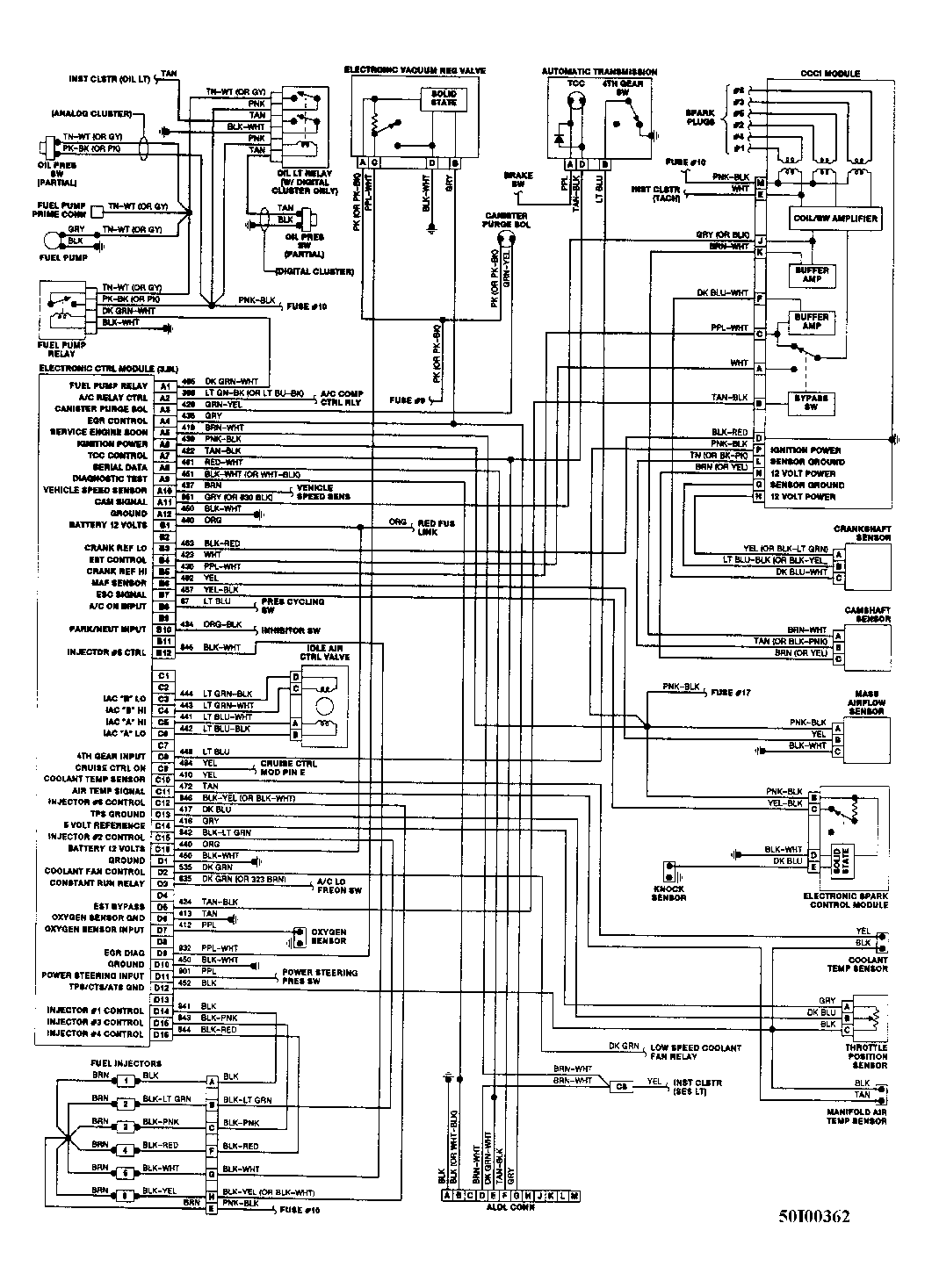

Fig 5: 3.8L PFI Wiring Diagram (Riviera)

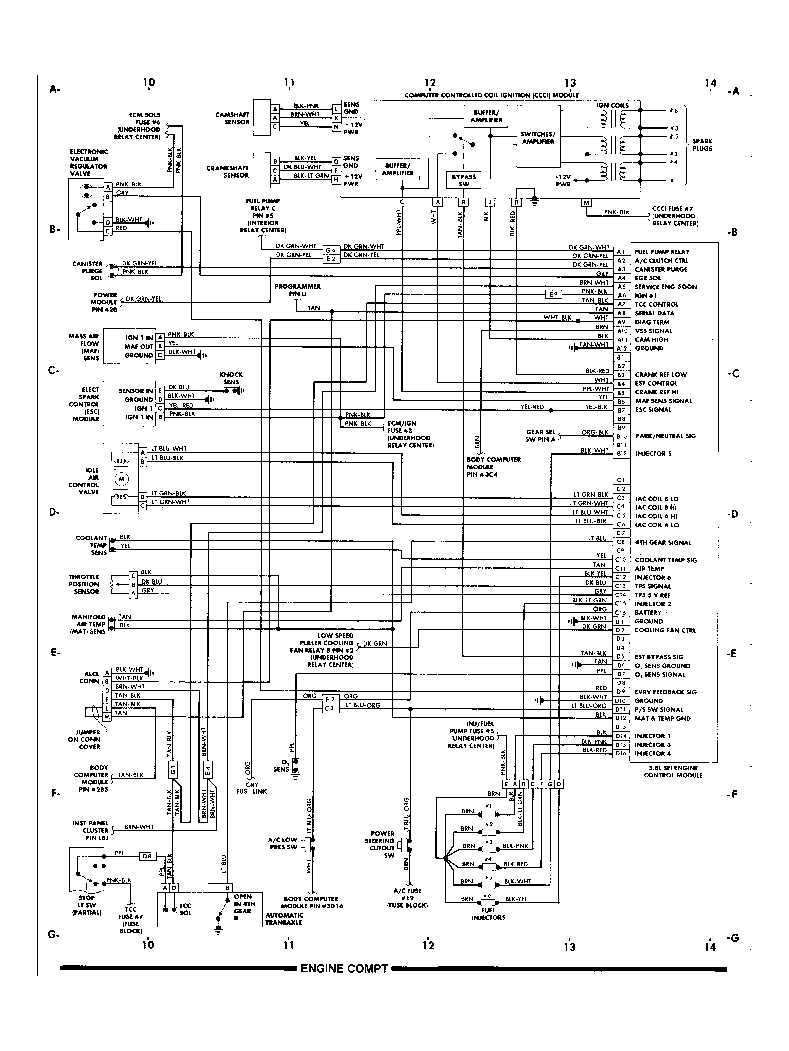

Fig 6: 3.8L PFI Wiring Diagram (Toronado)
