Wiring Diagrams

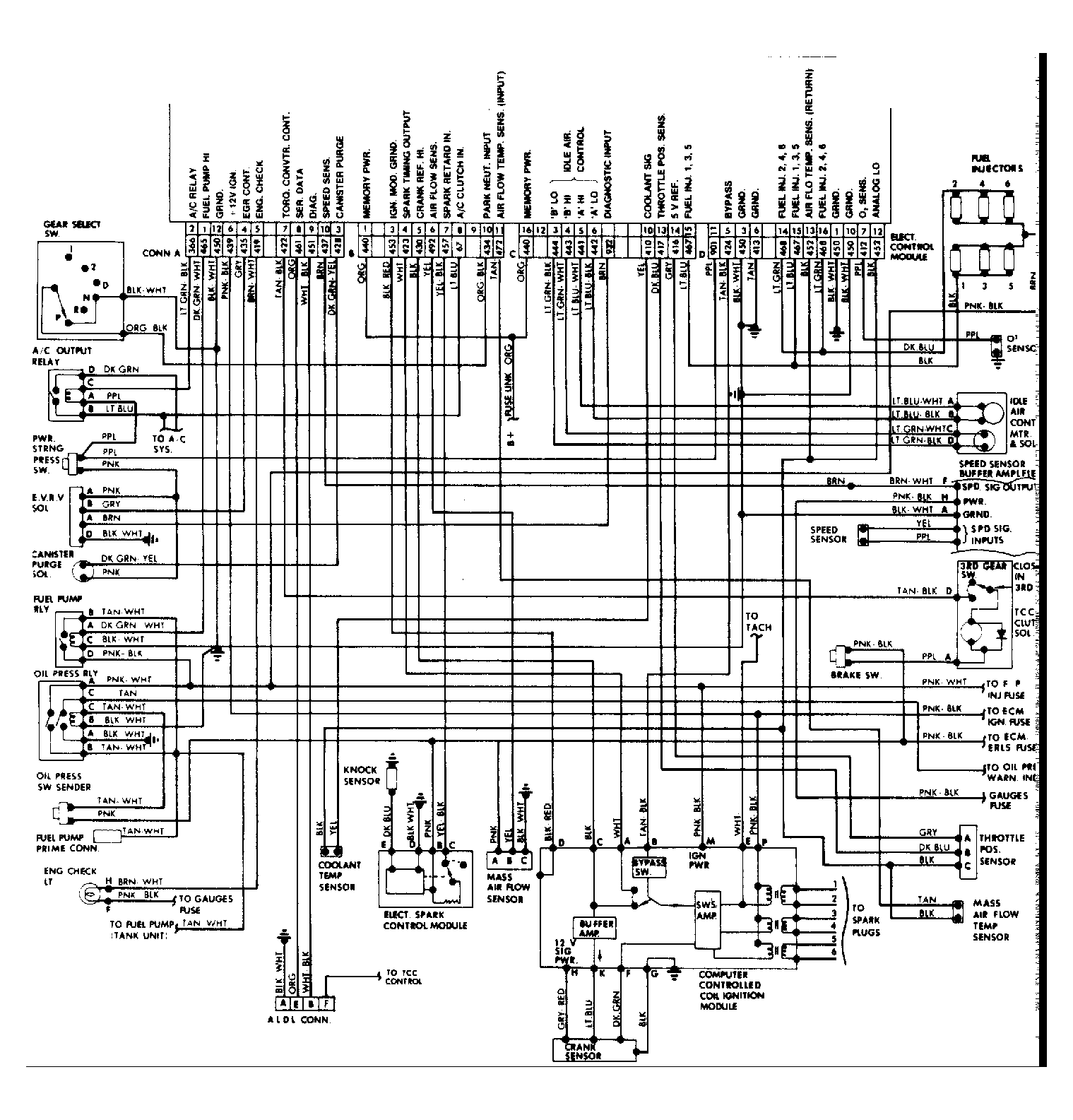

Fig 1: Port Fuel Injection Wiring Diagram 3.0L

G4929

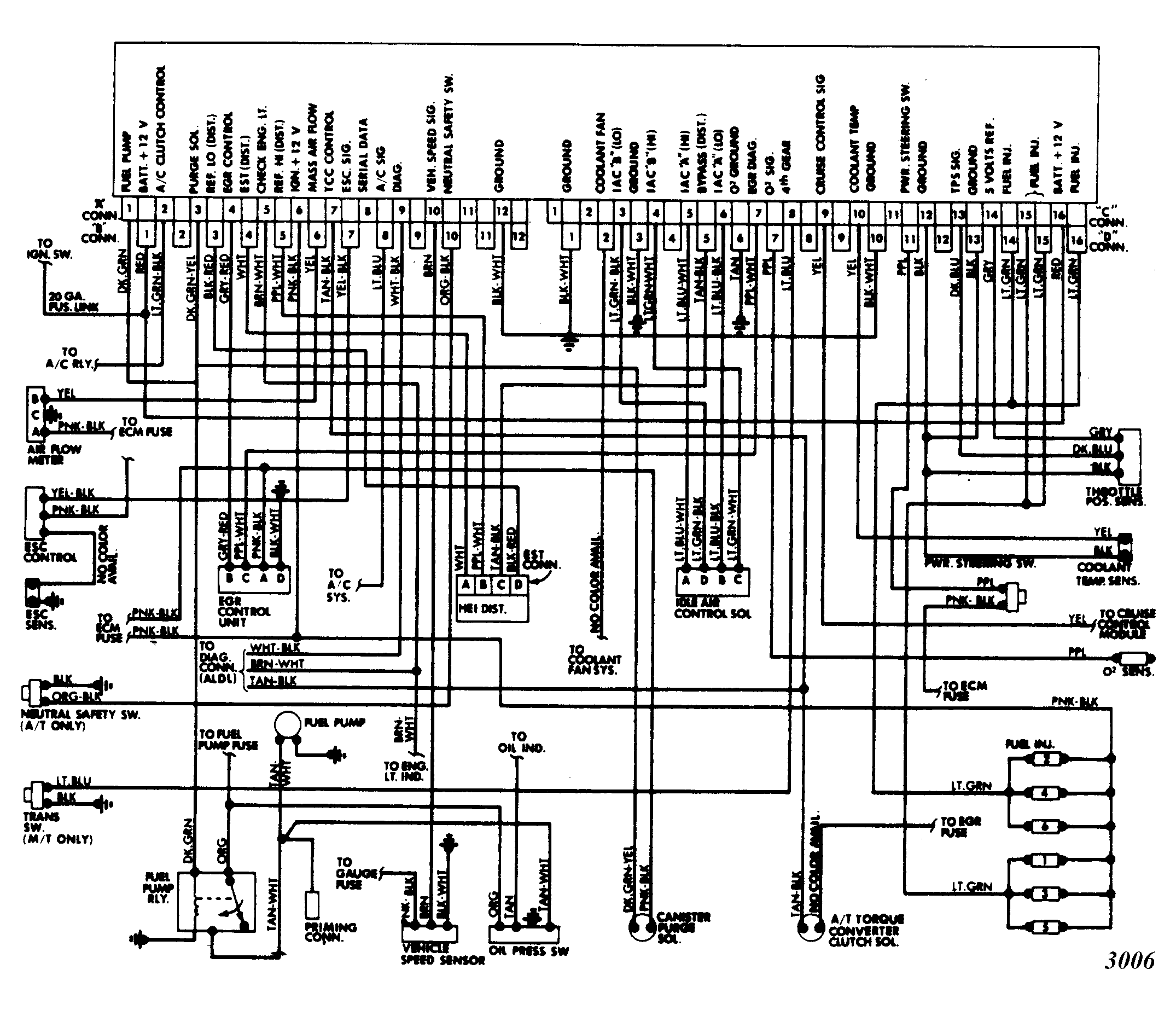

Fig 2: Port Fuel Injection Wiring Diagram 3.8L (Exc. Turbo)

G3006

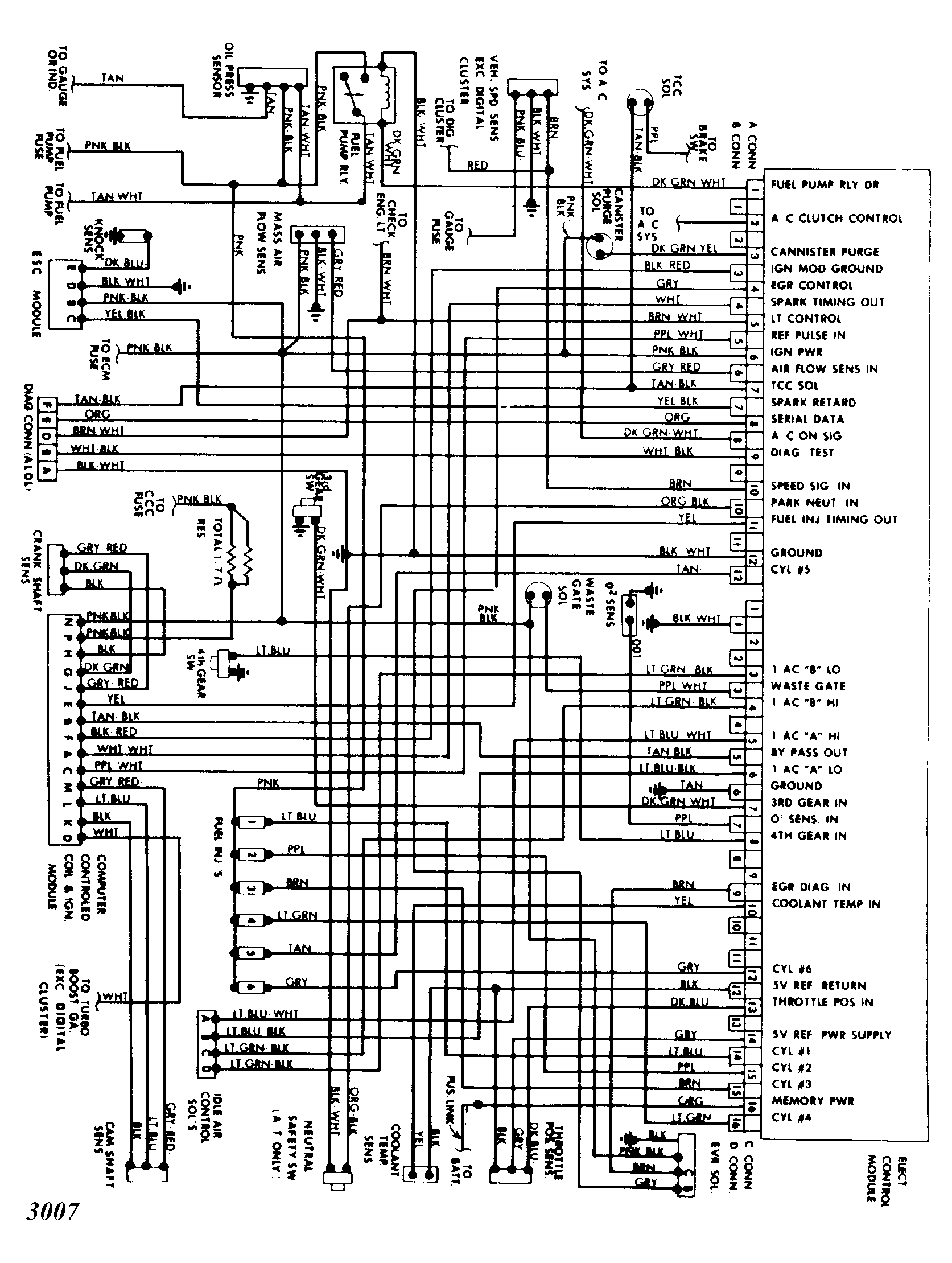

Fig 3: Port Fuel Injection Wiring Diagram 3.8L Turbo

G3007
