ECM Terminal Identification

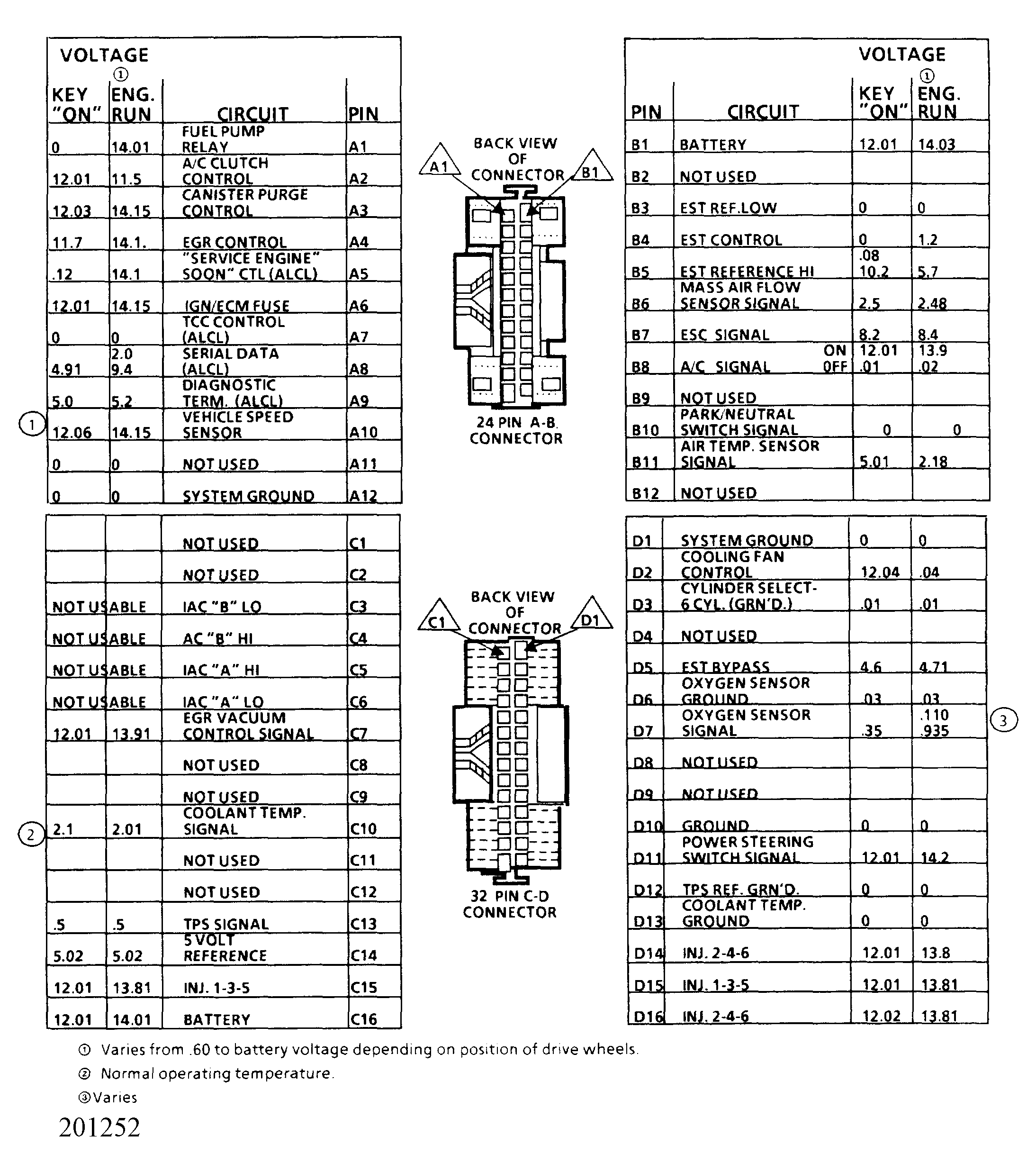

Fig 1: Port Fuel Injection ECM Terminal Identification 3.0L

G201252

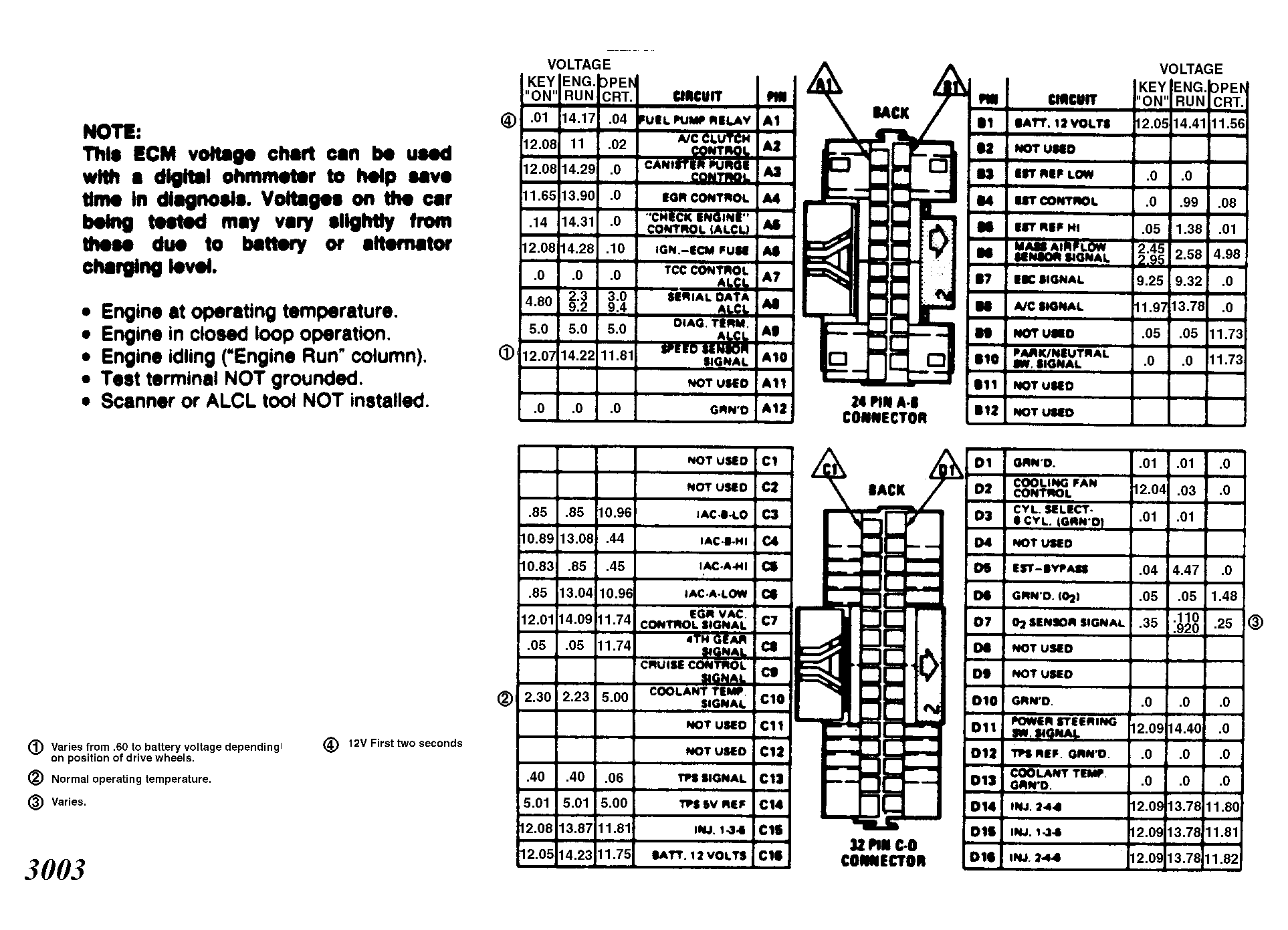

Fig 2: Port Fuel Injection ECM Terminal Identification 3.8L

G3003

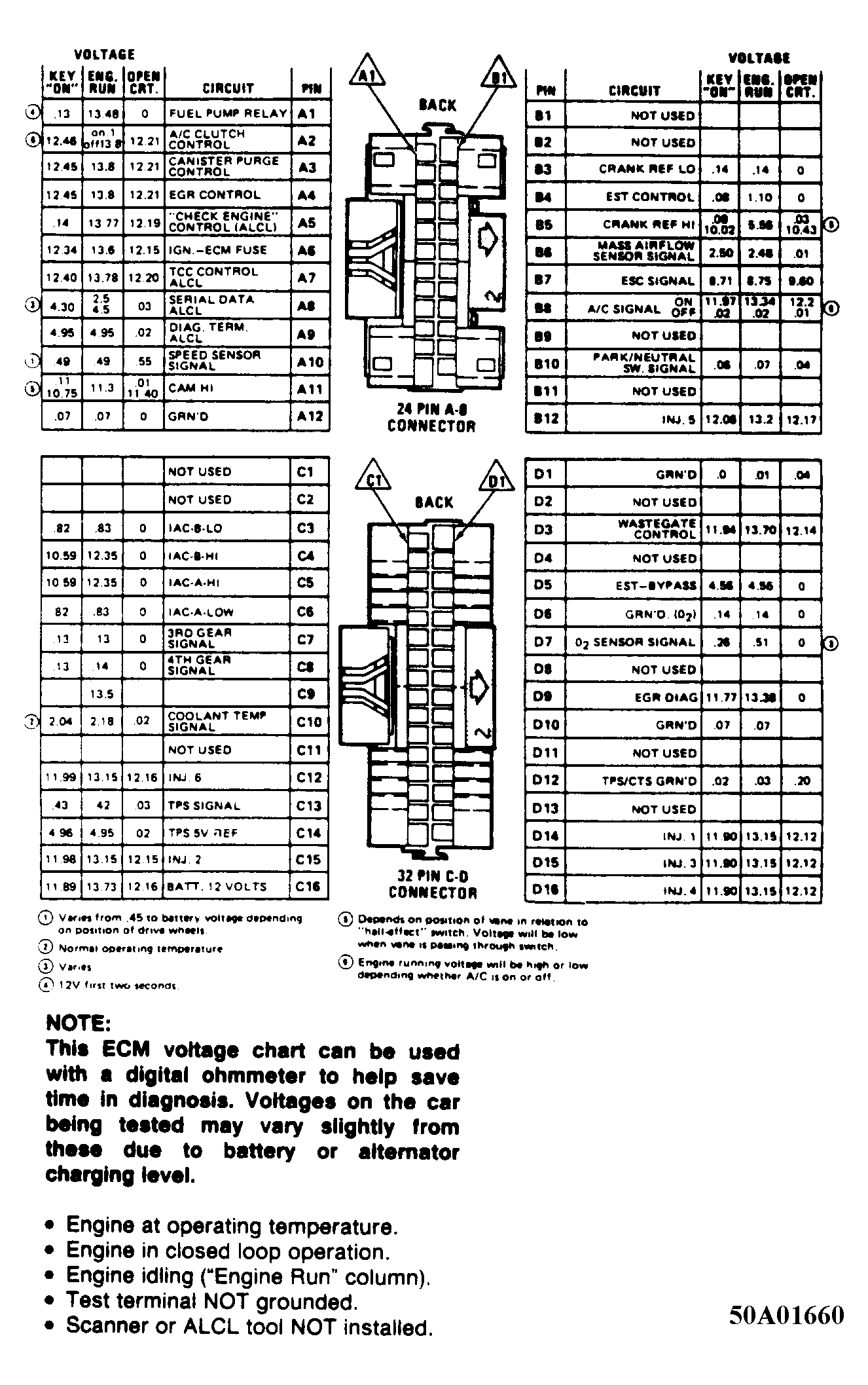

Fig 3: Port Fuel Injection ECM Terminal ID 3.8L Turbo

G50A01660
