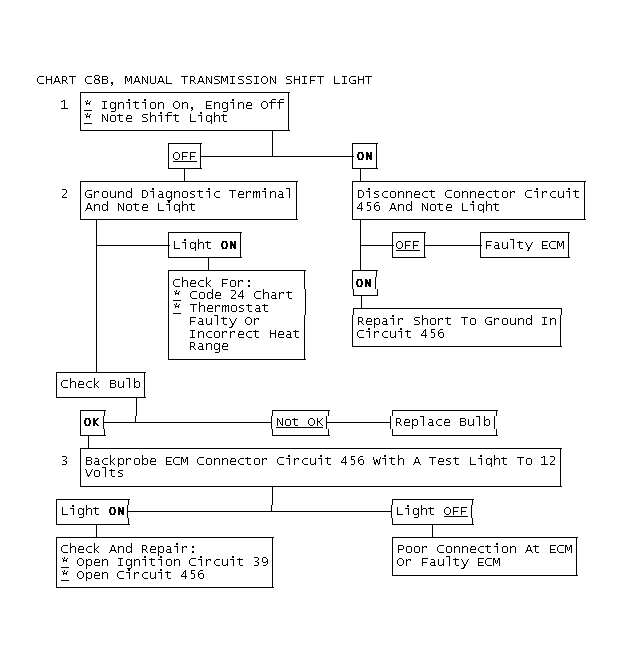

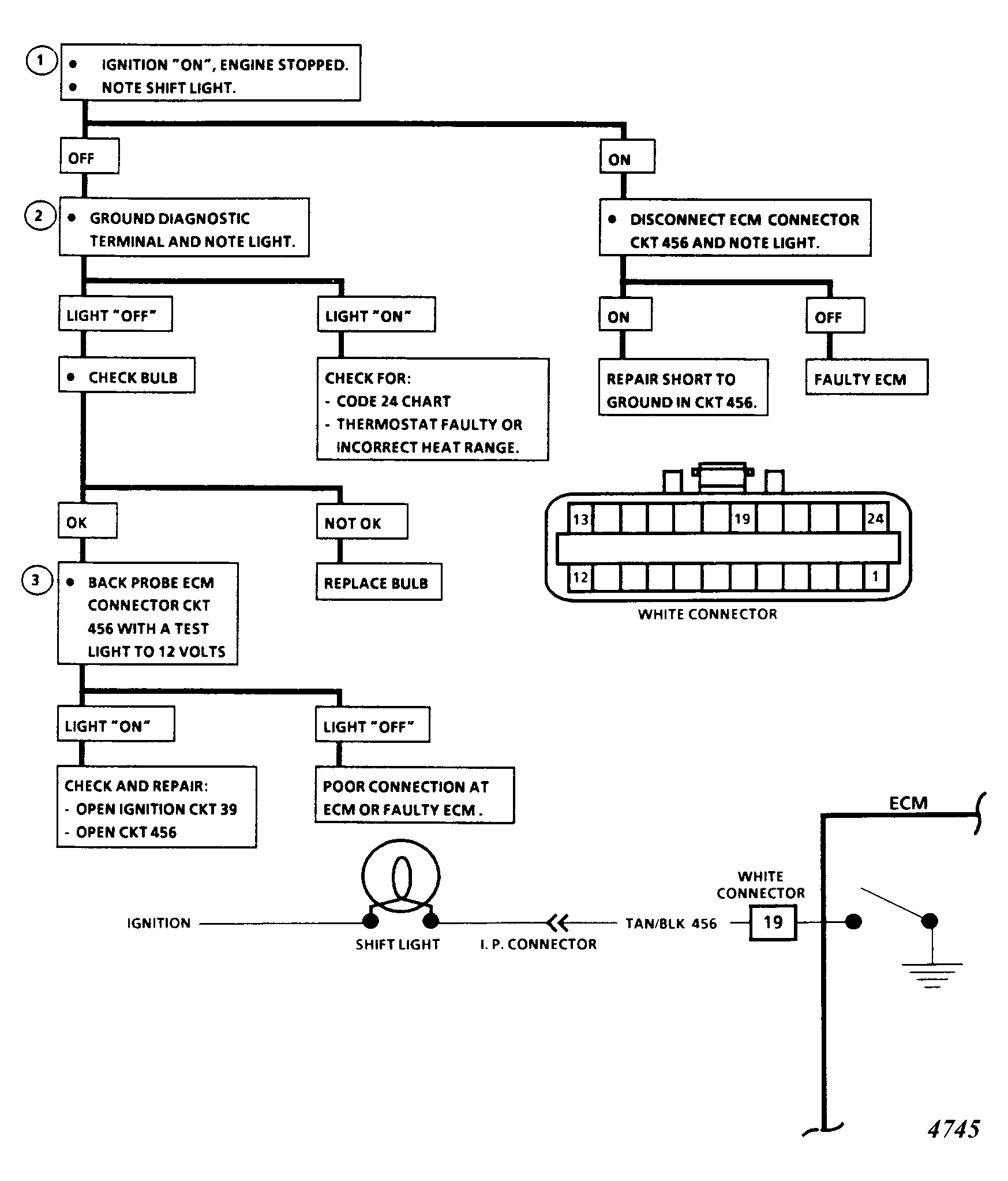

Chart C8B - Manual Transmission Shift Light
The shift light indicates best transmission shift point for maximum fuel economy. The light is controlled by ECM and is turned on by grounding terminal 19 circuit No. 456. The ECM uses MAP, distributor reference (engine speed), VSS and coolant temperature information for control.
