Base Ignition Timing Specifications

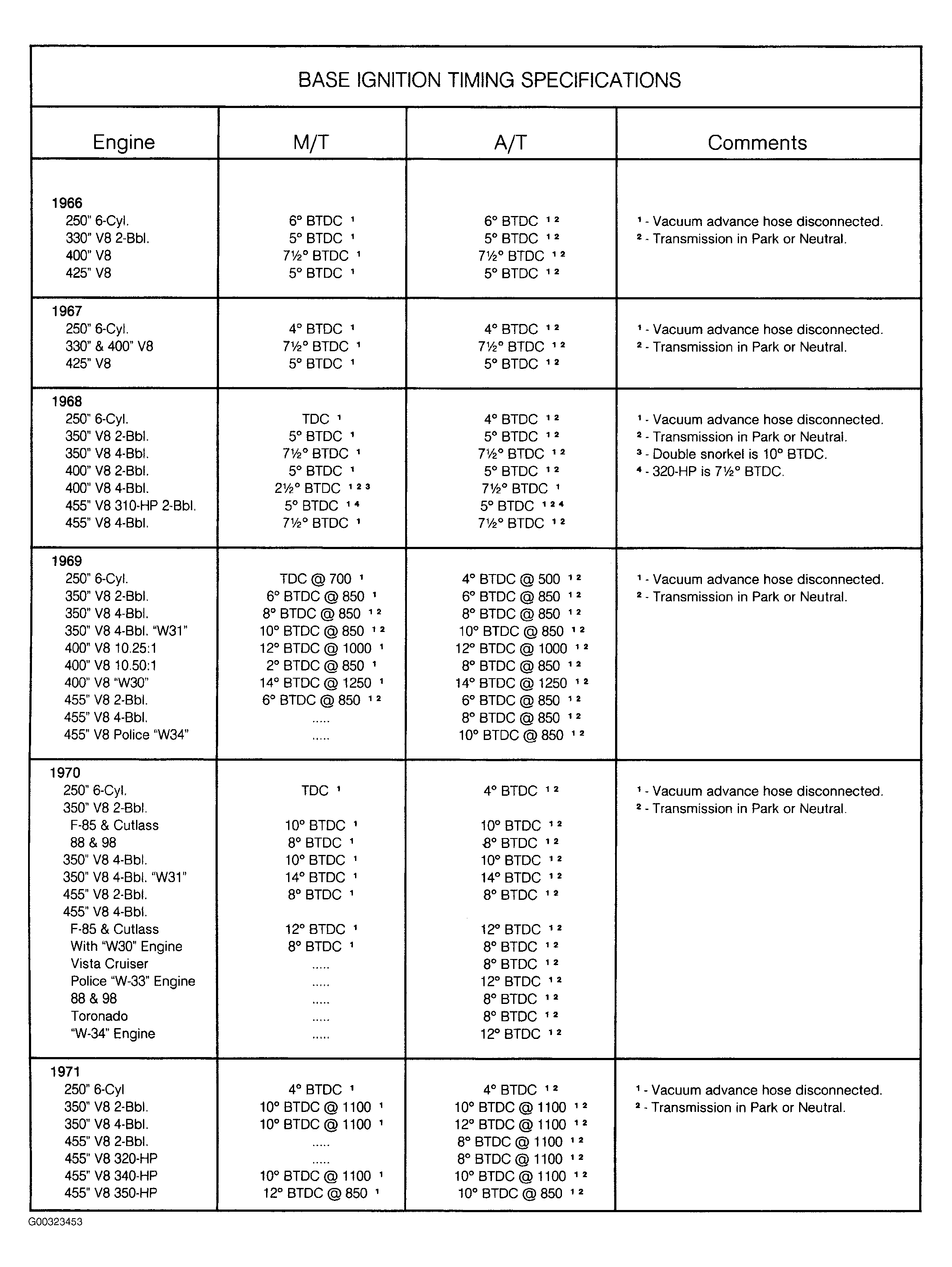

Fig 1:

G00323453

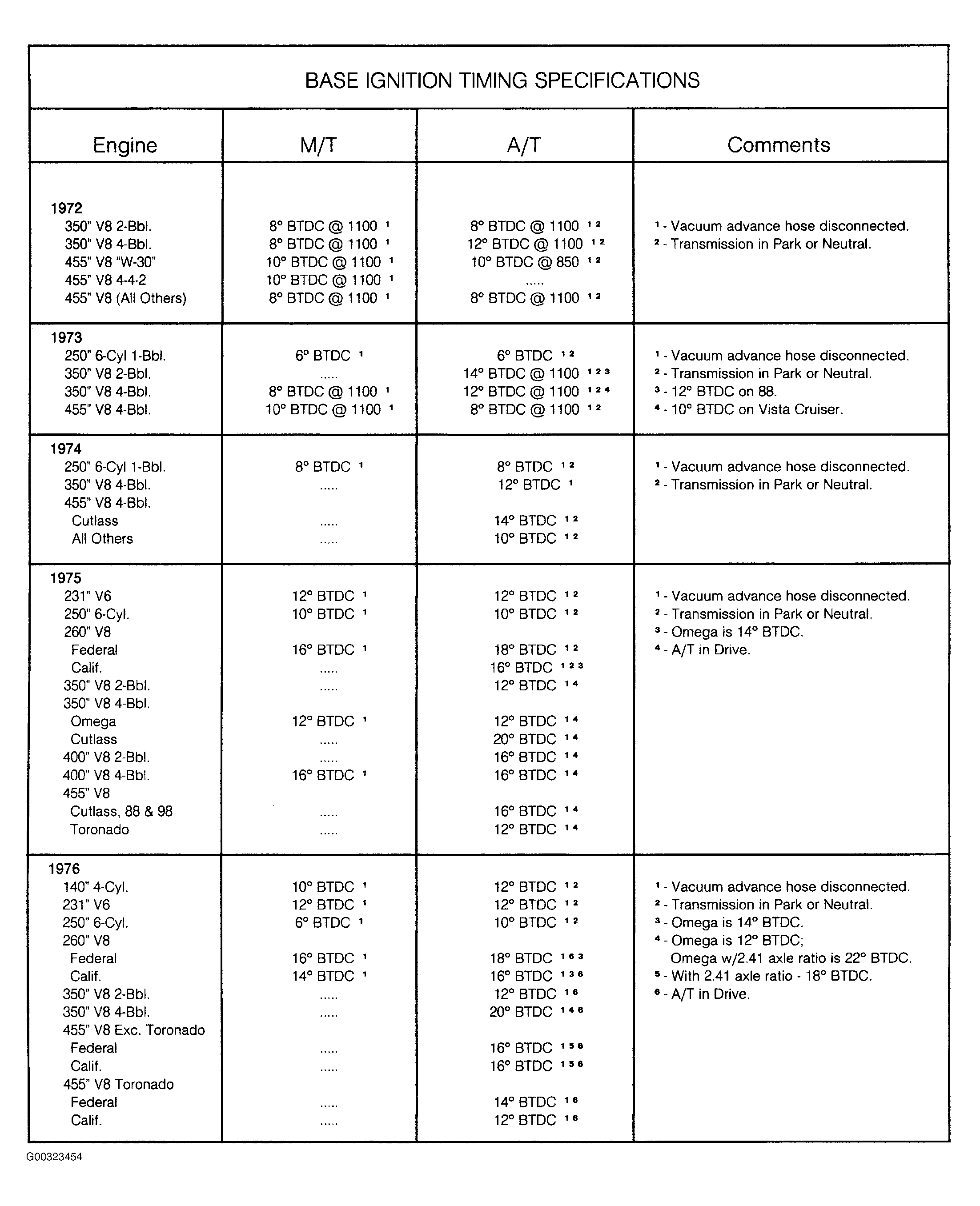

Fig 2:

G00323454

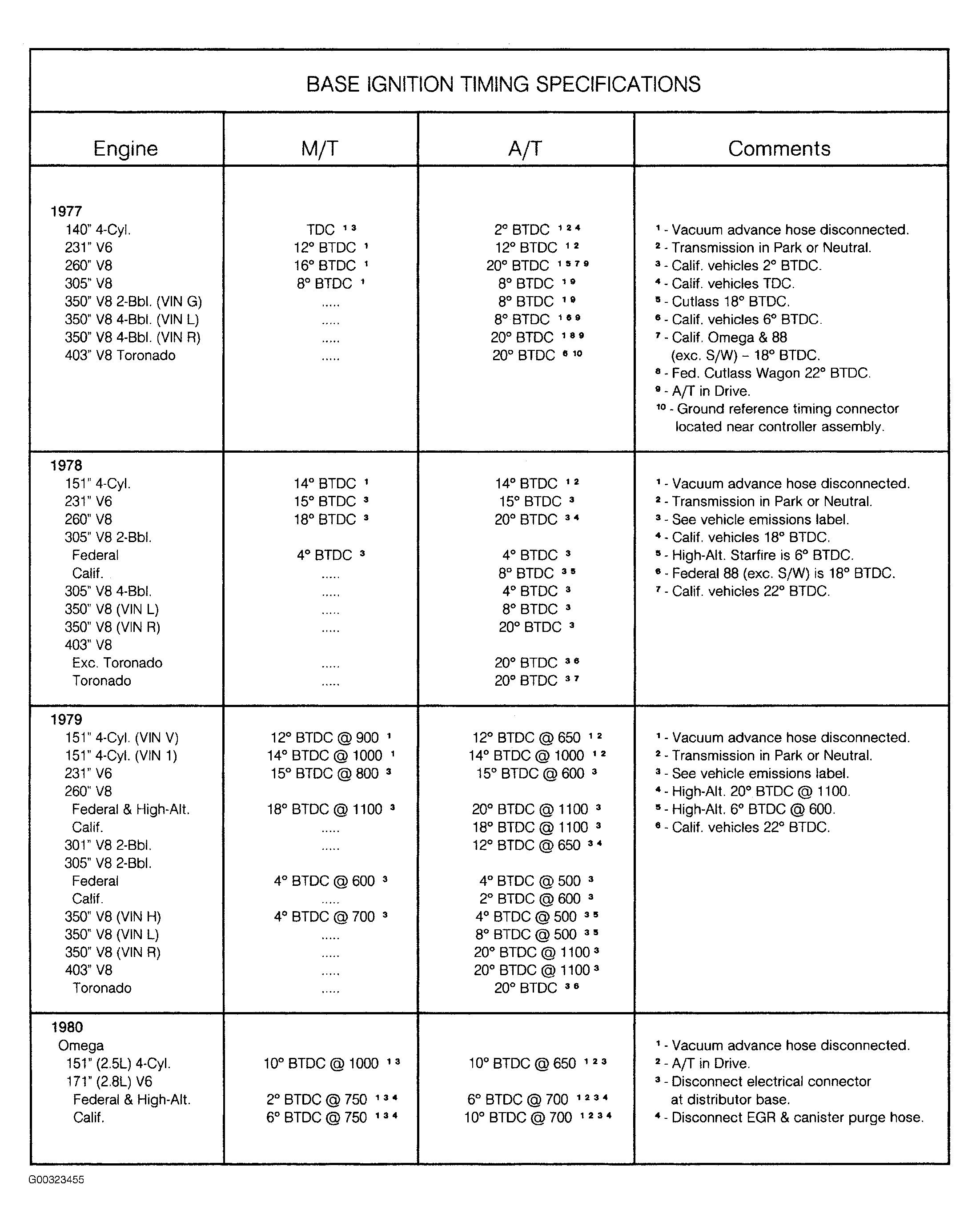

Fig 3:

G00323455

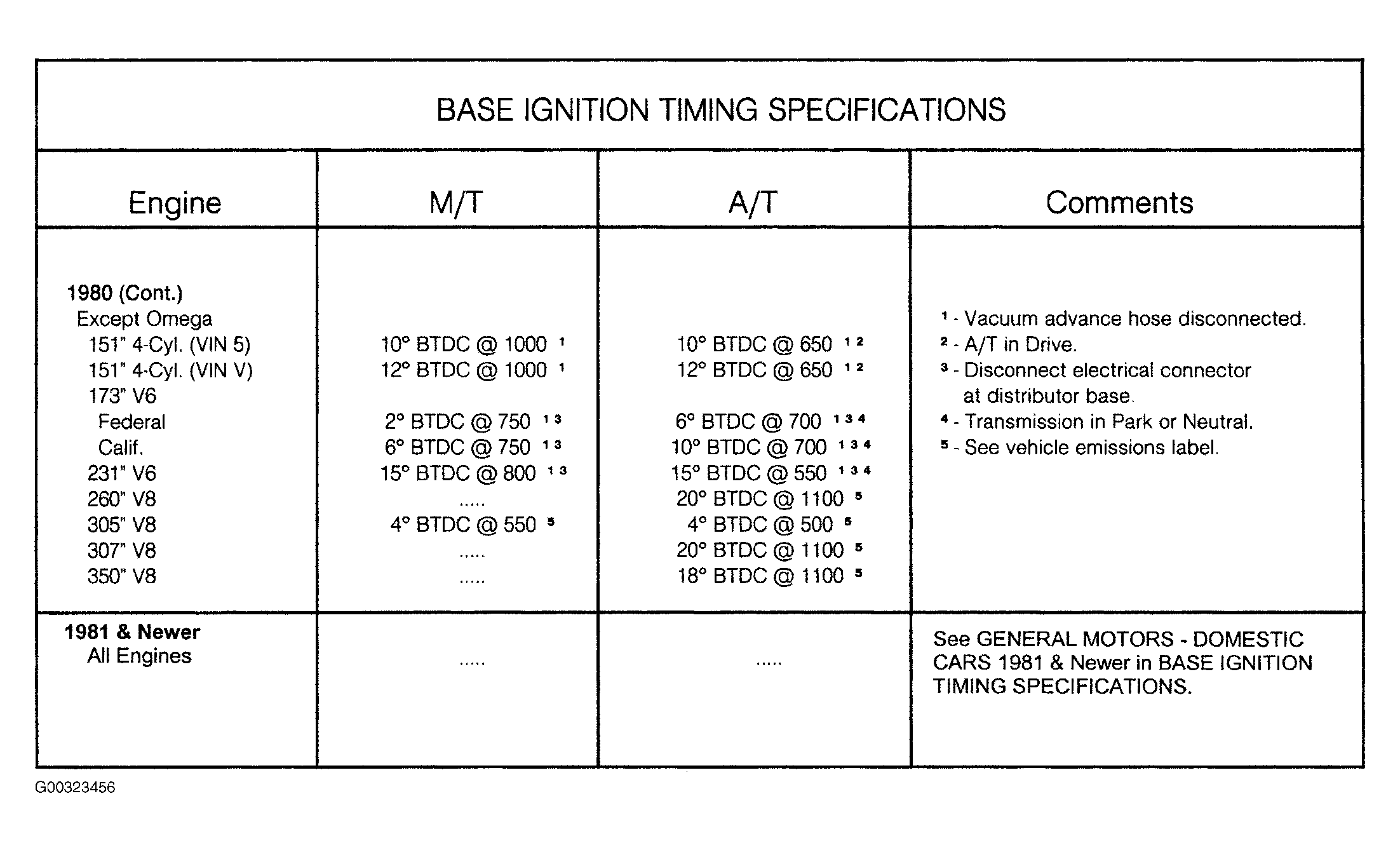

Fig 4:

G00323456
