TEMPMATIC Programmer Diagnosis Chart

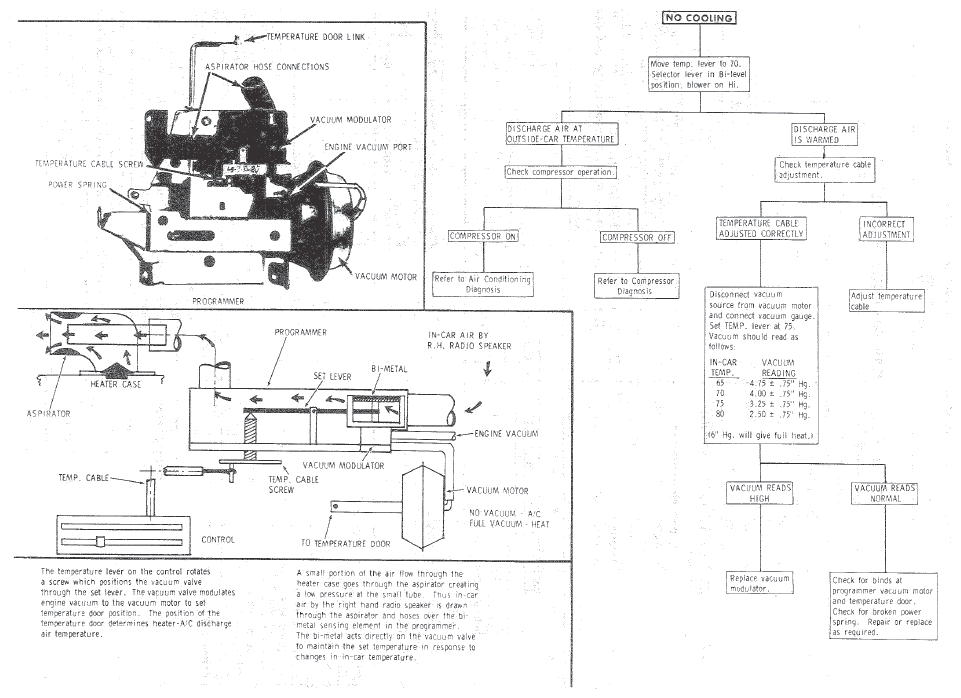

Fig 1: Tempmatic Programmer Diagnosis Chart
Courtesy of GENERAL MOTORS COMPANY

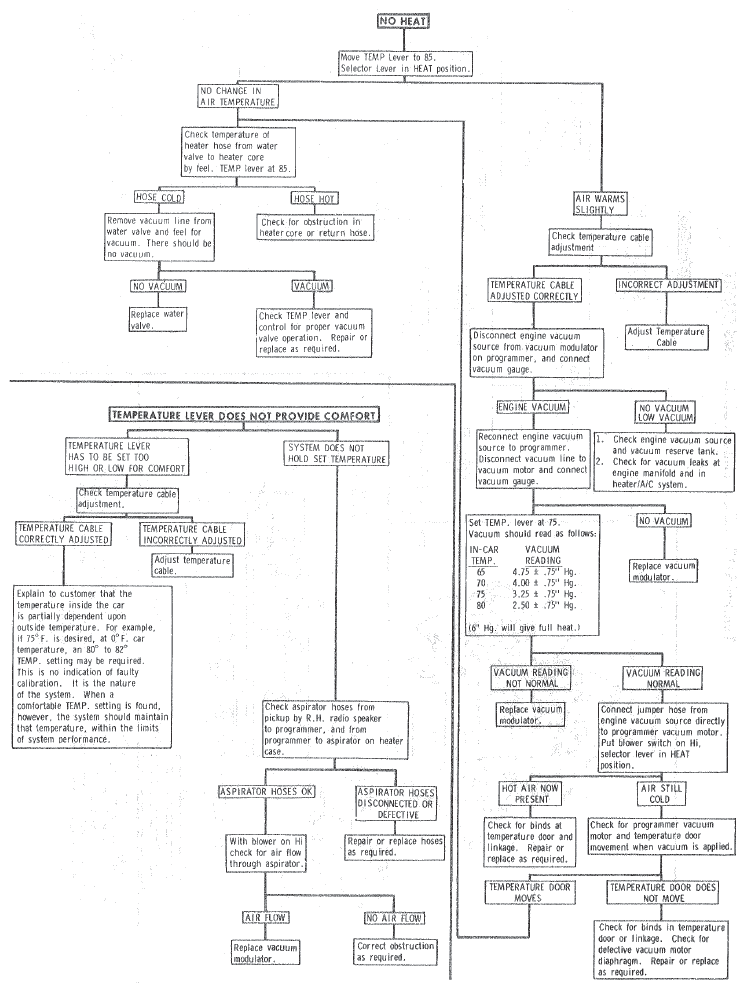

Fig 2: Tempmatic Programmer Diagnosis Chart (Contd.)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
