Choke Unloader
NOTE:
This adjustment is performed using choke valve angle gauge. See CHOKE VALVE ANGLE GAUGE in this article.

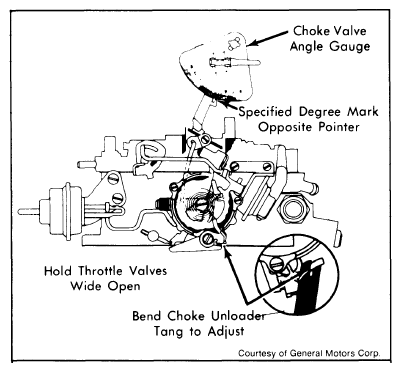

- Adjust automatic choke. Hold throttle valves wide open. See Fig 1 . If engine is warm, close choke valve by pushing up on vacuum break lever tang. Hold in position with a rubber band.
- Bubble on choke valve angle gauge should be centered with specified degree mark opposite pointer. If angle gauge is not available, measure specified clearance between upper edge of choke valve and air horn wall.
- To adjust, bend choke unloader tang on throttle lever until bubble is centered or correct clearance is obtained.
