Air Valve Spring

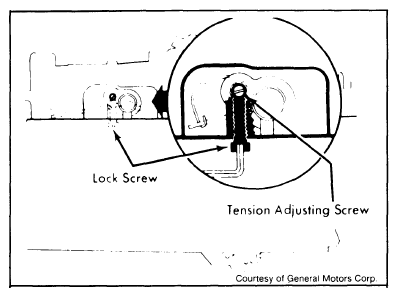

- Use Allen wrench to loosen lock screw. Turn tension adjusting screw counterclockwise until air valve opens part way. See Fig 1 .
- Hold air valve closed. Turn tension adjusting screw clockwise specified number after spring contacts pin. Hold adjusting screw and tighten lock screw.
