Intake Manifold Tightening

Tightening intake manifold bolts to 35 ft.lbs. in sequence shown in diagram.

NOTE: Clean and dip entire bolt in oil before tightening.
Fig 1: CYLINDER HEAD TIGHTENING SEQUENCE
G09351414Courtesy of GENERAL MOTORS COMPANY

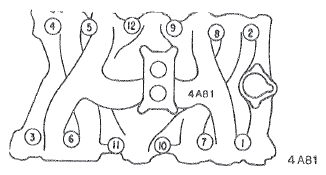

Fig 2: INTAKE MANIFOLD TIGHTENING SEQUENCE
G09351415Courtesy of GENERAL MOTORS COMPANY
