Tune-Up - V8: Distributor
Point Gap
.016"
Cam Angle
28-32° (set to 30°)
Breaker Arm Spring Tension
19-23 ozs.
Condenser Capacity
18-23 mfd.

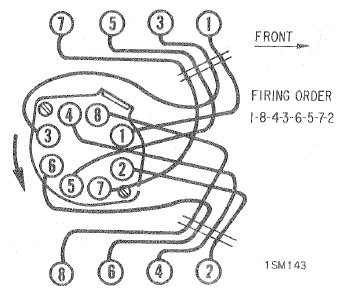

Fig 1: V8 ENGINES FIRING ORDER
Courtesy of GENERAL MOTORS COMPANY
