Exploded View

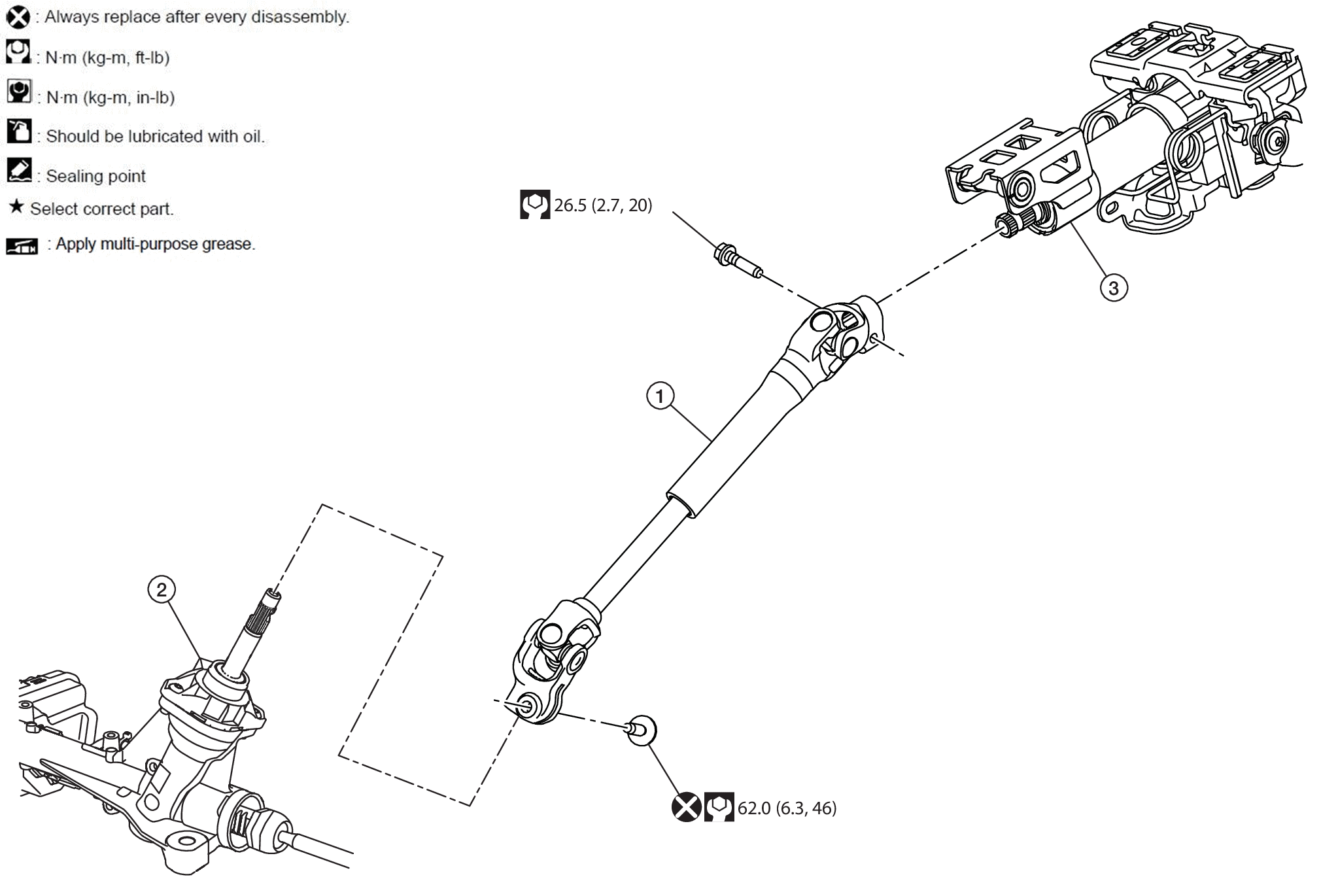

Fig 1: Lower Joint With Torque Specifications
GNSDB156196Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Lower joint SYMBOL Steering gear SYMBOL Steering column assembly
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : Always replace after every disassembly.
