Exploded View

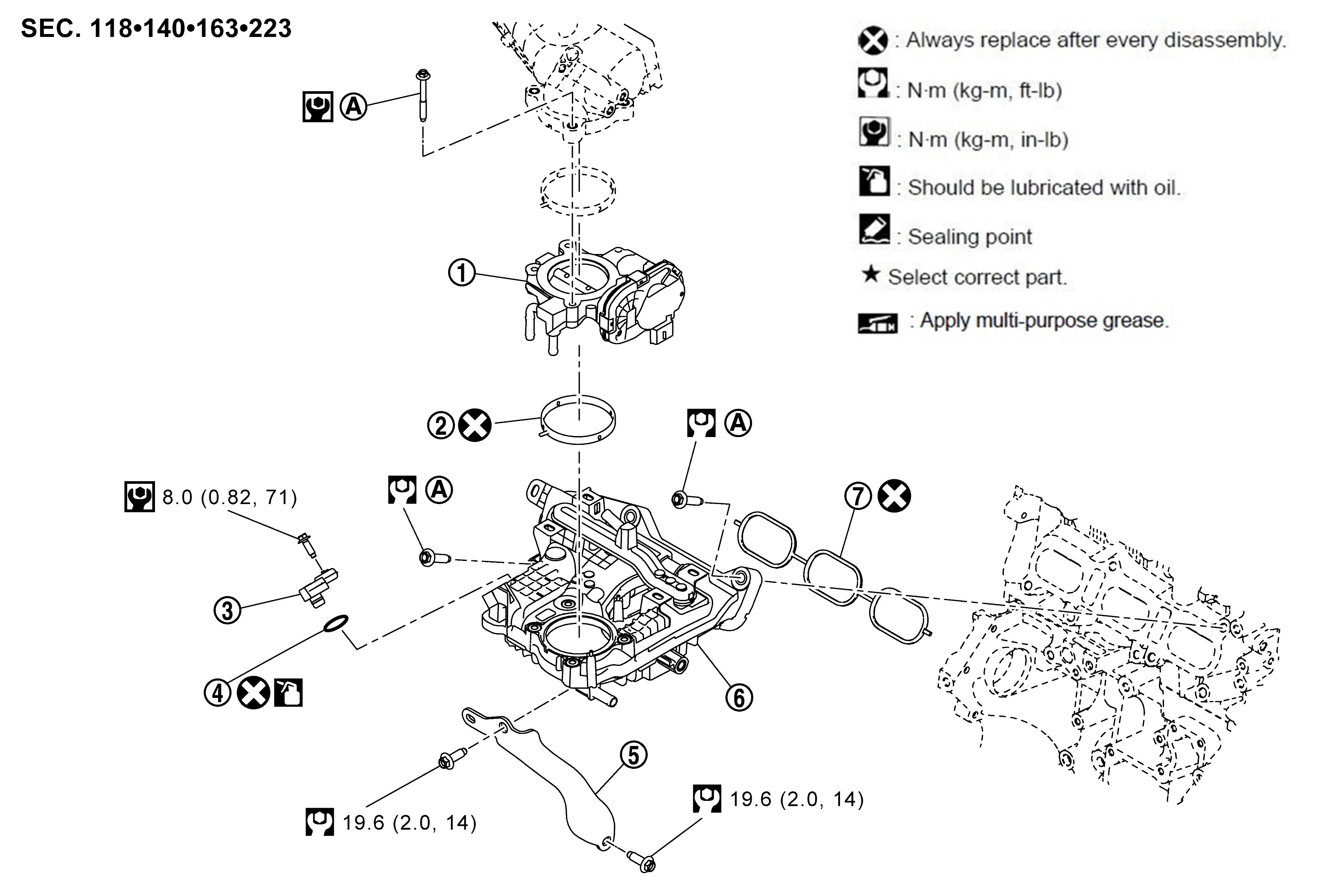

Fig 1: Intake Manifold With Torque Specifications
GNSDB129571Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Electric throttle control actuator SYMBOL Electric throttle control actuator gasket SYMBOL Manifold absolute pressure (MAP) sensor
SYMBOL O-ring SYMBOL Intake manifold support SYMBOL Intake manifold
SYMBOL Intake manifold gasket
SYMBOL Comply with the assembly procedure when tightening. Refer to Removal and Installation.
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : Should be lubricated with oil.
