Exploded View

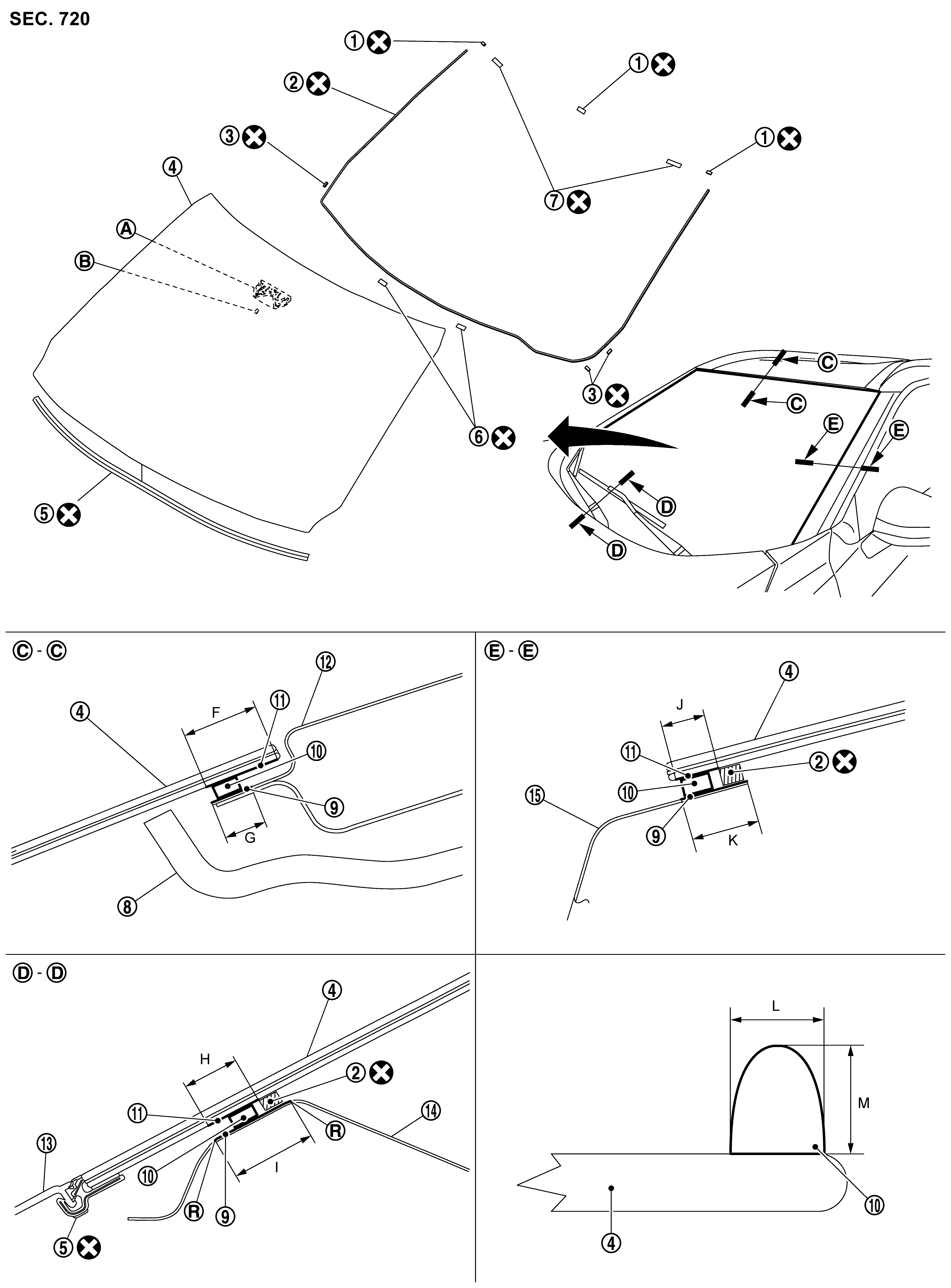

NMK Production
| Spacer (upper) | Dam sealant rubber | Spacer (lower) | |||
| Windshield glass | Windshield glass molding | Clip (lower) | |||
| Clip (upper) | Headlining assembly | Painted surface primer | |||
| Adhesive | Glass primer | Roof panel | |||
| Cowl top cover | Dash upper | body side outer panel | |||
| : Front camera unit and cover bracket (with front camera unit) | |||||
| : inside mirror base | |||||
| : R end | |||||
| : Always replace after every disassembly. | |||||
Unit: mm (in)
| Portion | Primer range | Adhesive range | |||
|---|---|---|---|---|---|
| L | M | ||||
| Windshield glass - Roof panel | F | 21.7 (0.854) | 7.0 (0.276) | 12.0 (0.47) | |
| G | 15.0 (0.59) | ||||
| Windshield glass - Dash upper | H | 13.0 (0.512) | |||
| I | R end to R end | ||||
| Windshield glass - Body side outer panel | J | 12.0 (0.47) | |||
| K | 18.0 (0.71) | ||||

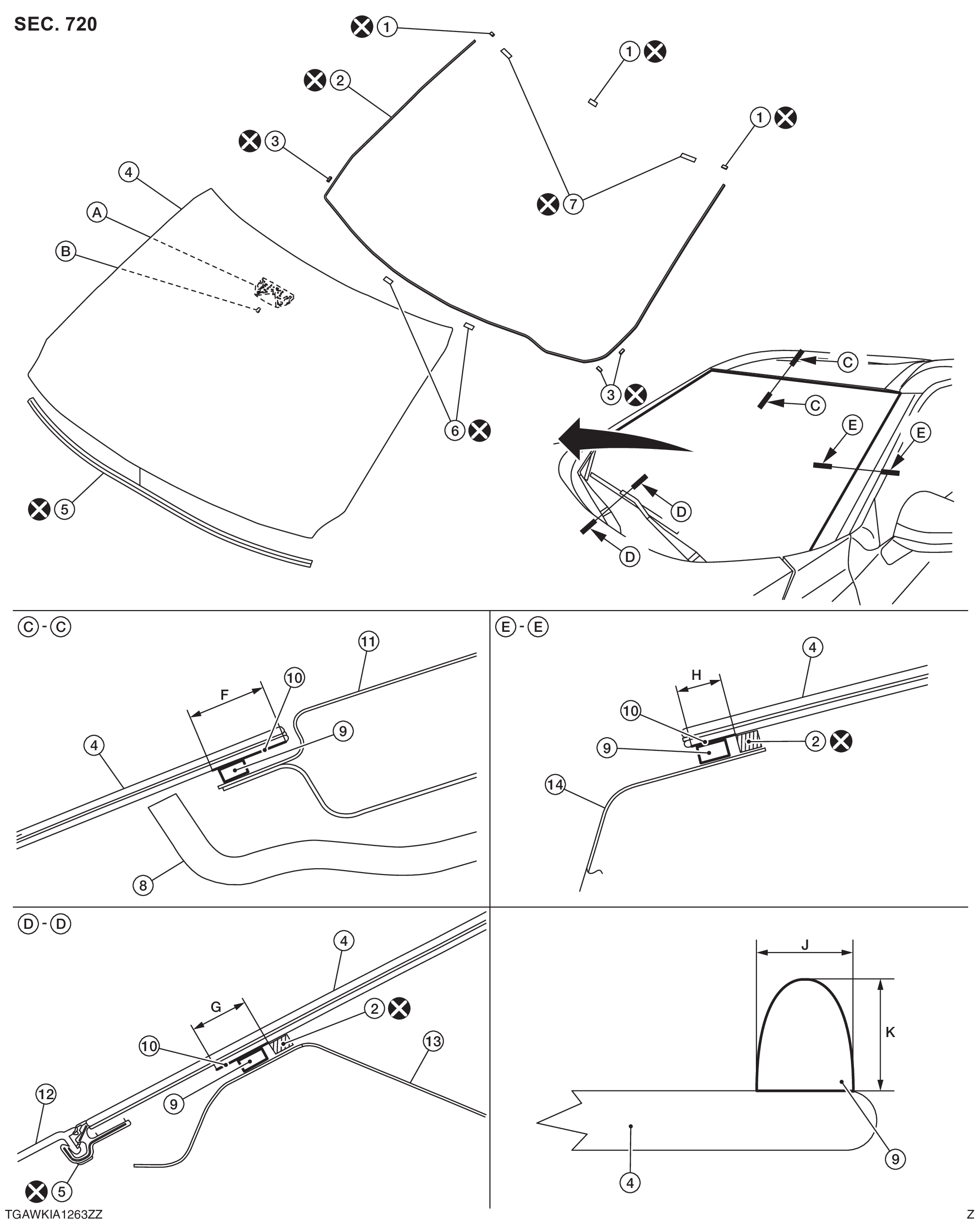

USA Production
| Spacer (upper) | Dam sealant rubber | Spacer (lower) | |||
| Windshield glass | Windshield glass molding | Clip (lower) | |||
| Clip (upper) | Headlining assembly | Adhesive | |||
| Glass primer | Roof panel | Cowl top cover | |||
| Dash upper | body side outer panel | ||||
| : Front camera unit and cover bracket (with front camera unit) | |||||
| : inside mirror base | |||||
| : Always replace after every disassembly. | |||||
| Portion | Primer range | Adhesive range | |||
|---|---|---|---|---|---|
| J | K | ||||
| Windshield glass - Roof panel | F | 21.7 (0.854) | 7.0 (0.276) | 12.0 (0.47) | |
| Windshield glass - Dash upper | G | 13.0 (0.512) | |||
| Windshield glass - Body side outer panel | H | 12.0 (0.47) | |||
